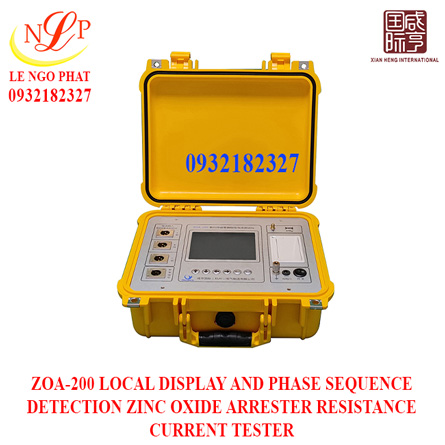

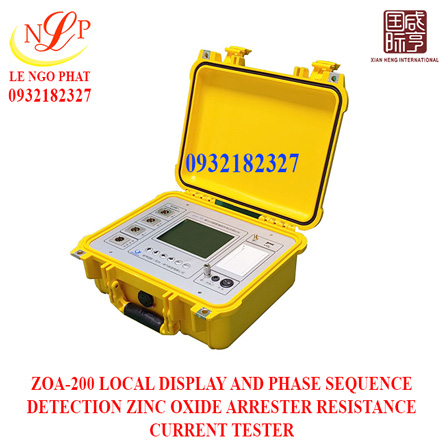

ZOA-200 LOCAL DISPLAY AND PHASE SEQUENCE DETECTION ZINC OXIDE ARRESTER RESISTANCE CURRENT TESTER
Model: ZOA-200
Accuracy: ±（0.05+5uA）
Resistive current Cardinal Wave Accuracy: ±（0.05+5uA）
Current Harmonic Measurement Accuracy: ±（0.1+10uA）
Current Channel Input Resistance: ≤2Ω
Reference Voltage Input Range: 25V-250V effective value, 50Hz/60Hz
Reference Voltage Measurement Accuracy: ±（0.05+0.5V）
Reference Voltage Channel Input Resistance: ≥1500kΩ
Electric Field Intensity Input Range: 30kV/m-300kV/m
Electric Field Intensity Measurement Accuracy: ±（0.1）
Dimension: 340*295*152mm
Weight: 3Kg
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
Description:
ZOA-200 Zinc oxide arrester resistance current tester is used to test the electrical properties of Metal Zinc Oxide Arrester (MOA). This instrument is suitable for field live test of zinc oxide arrester of different voltage grades, delivery and acceptance test of the laboratory under condition of power off. By measuring parameters such as full current and resistive current, the dangerous defects such as damp inside insulation and valve plate aging can be found in time.
Features:

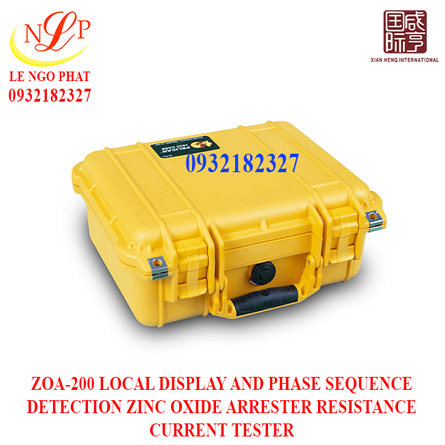

1. Appearance design: American PELICAN Protector Case, IP67
2. Processing design: metal drawing panel, ultra-light, ultra-anticorrosive titanium alloy screw to highlight quality
3. Color screen with high brightness: still visible under strong sunlight
4. Customized accessory housing, reducing wear and tear on core accessories
Six innovative technologies:
1. Real three-phase simultaneous measurement of zinc oxide parameters, and automatically compensate phase interference
2. Built-in large capacity lithium battery, no worry for on-site power
3. Humanized interface display, for some important operation and parameter Settings, display its prompt message
4. Double digital isolation and special Induction Plate Method make the test more safe and reliable
5. Intelligent power management system, backlight automatic adjustment, long time idle prompt 6. Local display and phase sequence detection
Technical Parameter:
|
Appearance Design |
PELICAN Protector Case IP67 |
|
Processing Design |
Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the |
|
Screen Display |
Large high-brightness color LCD screen, still clearly visible in strong sunlight |
|
Full Current Measurement Range |
0-10mA effective value, 50Hz/60Hz |
|
Accuracy |
±（0.05+5uA） |
|
Resistive current Cardinal Wave Accuracy |
±（0.05+5uA） |
|
Current Harmonic Measurement Accuracy |
±（0.1+10uA） |
|
Current Channel Input Resistance |
≤2Ω |
|
Reference Voltage Input Range |
25V-250V effective value, 50Hz/60Hz |
|
Reference Voltage Measurement Accuracy |
±（0.05+0.5V） |
|
Reference Voltage Channel Input Resistance |
≥1500kΩ |
|
Electric Field Intensity Input Range |
30kV/m-300kV/m |
|
Electric Field Intensity Measurement Accuracy |
±（0.1） |
|
Store and Print |
Equipped with an external printer for easy data printing, data can be stored in real time |
|
Power Supply |
Built-in large-capacity lithium battery, one charge, can continuously test for more than 8 hours |
|
Dimension |
340*295*152mm |
|
Weight |
3Kg |
TỪ KHÓA TÌM KIẾM: MÁY ĐO BIẾN ÁP ĐA NĂNG HTRT-10; MÁY ĐO DIỆN ÁP HLP-100, MÁY ĐO ĐIỆN ÁP HCCT-10; MÁY ĐO ĐIỆN TRỞ HZOA-20; MÁY ĐO BIẾN ÁP WDT-200, MÁY BIẾN ÁP TRT-20, MÁY ĐO TỶ LỆ BIẾN ÁP SRTR-100Pro, DÒ ĐIỆN ÁP CHỐNG LÃO HÓA
Description:
ZOA-200 Zinc oxide arrester resistance current tester is used to test the electrical properties of Metal Zinc Oxide Arrester (MOA). This instrument is suitable for field live test of zinc oxide arrester of different voltage grades, delivery and acceptance test of the laboratory under condition of power off. By measuring parameters such as full current and resistive current, the dangerous defects such as damp inside insulation and valve plate aging can be found in time.
Features:
1. Appearance design: American PELICAN Protector Case, IP67
2. Processing design: metal drawing panel, ultra-light, ultra-anticorrosive titanium alloy screw to highlight quality
3. Color screen with high brightness: still visible under strong sunlight
4. Customized accessory housing, reducing wear and tear on core accessories
Six innovative technologies:
1. Real three-phase simultaneous measurement of zinc oxide parameters, and automatically compensate phase interference
2. Built-in large capacity lithium battery, no worry for on-site power
3. Humanized interface display, for some important operation and parameter Settings, display its prompt message
4. Double digital isolation and special Induction Plate Method make the test more safe and reliable
5. Intelligent power management system, backlight automatic adjustment, long time idle prompt 6. Local display and phase sequence detection
Technical Parameter:
|
Appearance Design |
PELICAN Protector Case IP67 |
|
Processing Design |
Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the |
|
Screen Display |
Large high-brightness color LCD screen, still clearly visible in strong sunlight |
|
Full Current Measurement Range |
0-10mA effective value, 50Hz/60Hz |
|
Accuracy |
±（0.05+5uA） |
|
Resistive current Cardinal Wave Accuracy |
±（0.05+5uA） |
|
Current Harmonic Measurement Accuracy |
±（0.1+10uA） |
|
Current Channel Input Resistance |
≤2Ω |
|
Reference Voltage Input Range |
25V-250V effective value, 50Hz/60Hz |
|
Reference Voltage Measurement Accuracy |
±（0.05+0.5V） |
|
Reference Voltage Channel Input Resistance |
≥1500kΩ |
|
Electric Field Intensity Input Range |
30kV/m-300kV/m |
|
Electric Field Intensity Measurement Accuracy |
±（0.1） |
|
Store and Print |
Equipped with an external printer for easy data printing, data can be stored in real time |
|
Power Supply |
Built-in large-capacity lithium battery, one charge, can continuously test for more than 8 hours |
|
Dimension |
340*295*152mm |
|
Weight |
3Kg |
Description:
ZOA-200 Zinc oxide arrester resistance current tester is used to test the electrical properties of Metal Zinc Oxide Arrester (MOA). This instrument is suitable for field live test of zinc oxide arrester of different voltage grades, delivery and acceptance test of the laboratory under condition of power off. By measuring parameters such as full current and resistive current, the dangerous defects such as damp inside insulation and valve plate aging can be found in time.
Features:
1. Appearance design: American PELICAN Protector Case, IP67
2. Processing design: metal drawing panel, ultra-light, ultra-anticorrosive titanium alloy screw to highlight quality
3. Color screen with high brightness: still visible under strong sunlight
4. Customized accessory housing, reducing wear and tear on core accessories
Six innovative technologies:
1. Real three-phase simultaneous measurement of zinc oxide parameters, and automatically compensate phase interference
2. Built-in large capacity lithium battery, no worry for on-site power
3. Humanized interface display, for some important operation and parameter Settings, display its prompt message
4. Double digital isolation and special Induction Plate Method make the test more safe and reliable
5. Intelligent power management system, backlight automatic adjustment, long time idle prompt 6. Local display and phase sequence detection
Technical Parameter:
|
Appearance Design |
PELICAN Protector Case IP67 |
|
Processing Design |
Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the |
|
Screen Display |
Large high-brightness color LCD screen, still clearly visible in strong sunlight |
|
Full Current Measurement Range |
0-10mA effective value, 50Hz/60Hz |
|
Accuracy |
±（0.05+5uA） |
|
Resistive current Cardinal Wave Accuracy |
±（0.05+5uA） |
|
Current Harmonic Measurement Accuracy |
±（0.1+10uA） |
|
Current Channel Input Resistance |
≤2Ω |
|
Reference Voltage Input Range |
25V-250V effective value, 50Hz/60Hz |
|
Reference Voltage Measurement Accuracy |
±（0.05+0.5V） |
|
Reference Voltage Channel Input Resistance |
≥1500kΩ |
|
Electric Field Intensity Input Range |
30kV/m-300kV/m |
|
Electric Field Intensity Measurement Accuracy |
±（0.1） |
|
Store and Print |
Equipped with an external printer for easy data printing, data can be stored in real time |
|
Power Supply |
Built-in large-capacity lithium battery, one charge, can continuously test for more than 8 hours |
|
Dimension |
340*295*152mm |
|
Weight |
3Kg |
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
