HLR-100 DIGITAL REAL-TIME DATA PRINTING HANDHELD MANUAL PORTABLE LOOP RESISTANCE TESTER MEASUREMENT SYSTEMS PRICE

HLR-100 DIGITAL REAL-TIME DATA PRINTING HANDHELD MANUAL PORTABLE LOOP RESISTANCE TESTER MEASUREMENT SYSTEMS PRICE

Model: HLR-100

Output Current: 100A; 80A; 50A; 30A

Measuring Range: 0-5mΩ; 0-8mΩ; 0-10mΩ; 0-20mΩ

Accuracy: ±（0.005+1uΩ）

Resolution:0.1uΩ

Display Digits: 4 1/2

Input Voltage: Max 5V

Measure Time: High-speed OR 10-60seconds optional

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: HLR-100

Model: HLR-100

Description:

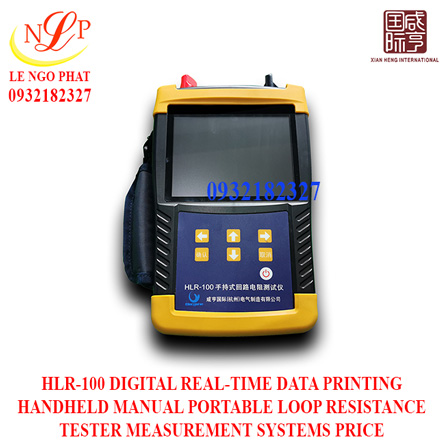

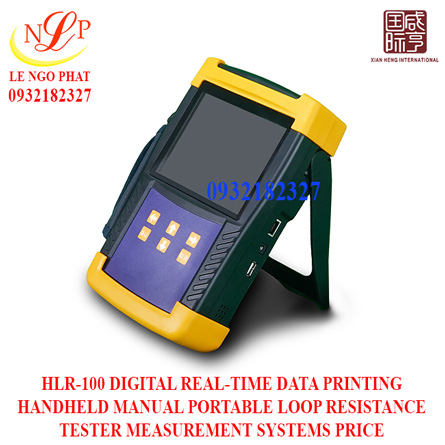

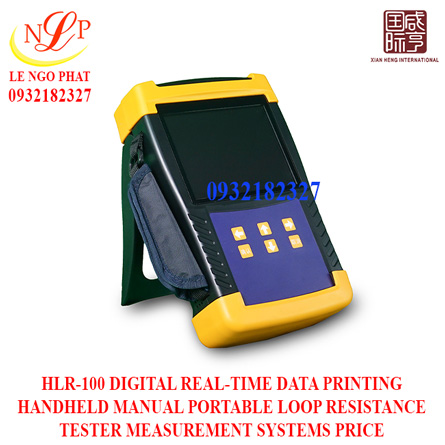

HLR-100 is a brand new generation of hand-held loop resistance tester. It is small in size and light in weight, only 1.5kg, which can be operated by one person, and the field test is simple and fast. The integrated and user-friendly design of the wire box is easy to carry, and the test accessories are no longer easy to be lost. It is an ideal device for the power supply department to measure the contact resistance of the switch contacts and other resistive test products.

Features:
1. Appearance design: handheld, light and portable

2. Lightweight: The weight of the host is 1.5kg

3. Portable: handheld design

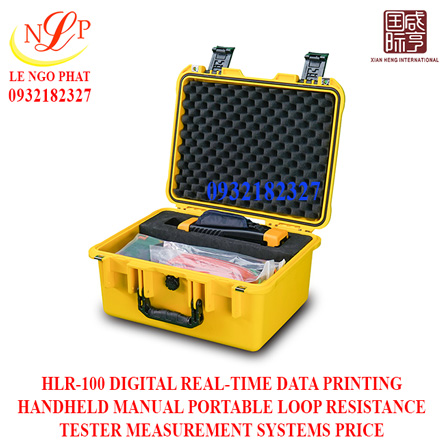

4. Tester and wire in one case: test accessories and wires are not easy to be lost

Five innovative technologies:

1. Large-capacity lithium battery, long-lasting work

2. High-precision large color screen

3. Output 100A current for continuous 60s

4. High precision, wide range

5. Real-time data printing

Technical Parameter:

Appearance Design	Imported high-strength materials, handheld, light and portable
Tester and wires in one case	The main unit and the wire box are integrated, easy to carry, and the test accessories are not easy to lost
Screen Display	Large high-brightness color LCD screen, intuitive display, still clearly visible in strong sunlight
Output Current	100A	80A	50A	30A
Measuring Range	0-5mΩ	0-8mΩ	0-10mΩ	0-20mΩ
Accuracy	±（0.005+1uΩ）
Resolution	0.1uΩ
Display Digits	4 1/2
Input Voltage	Max 5V
Measure Time	High-speed OR 10-60seconds optional
Store and Print	Equipped with an external printer for easy data printing, data can be stored in real time
Power Supply	Built-in large-capacity lithium battery, one charge, can continuously test more than 800 times
Dimension	24615662mm
Weight	1.5kg
