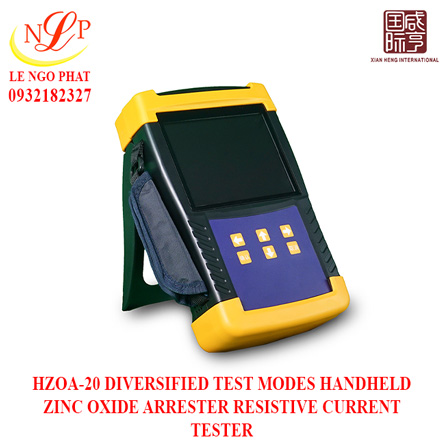

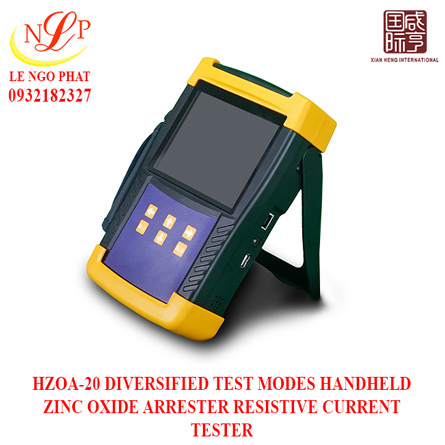

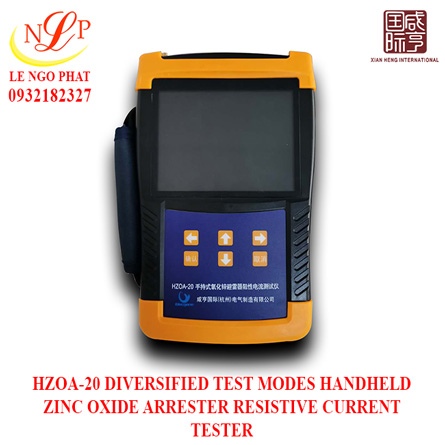

HZOA-20 DIVERSIFIED TEST MODES HANDHELD ZINC OXIDE ARRESTER RESISTIVE CURRENT TESTER

HZOA-20 DIVERSIFIED TEST MODES HANDHELD ZINC OXIDE ARRESTER RESISTIVE CURRENT TESTER

HZOA-20
Full Current Measurement Range: 0-20mA, 50Hz/60Hz
Accuracy: ±（0.05+5uA）
Resistive current Cardinal Wave Accuracy: ±（0.05+5uA）
Current Harmonic Measurement Accuracy: ±（0.1+10uA）
Current Channel Input Resistance: ≤2Ω
Reference Voltage Input Range: 25V-250V Effective value, 50Hz/60Hz
Reference Voltage Measurement Accuracy: ±（0.05+0.5V）
Reference Voltage Channel Input Resistance: ≥1500kΩ
Electric Field Intensity Input Range: 30kV/m-300kV/m
Electric Field Intensity Measurement Accuracy: ±（reading×10%）
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: HZOA-20

Model: HZOA-20

Description:

HZOA-20 is a new generation of hand held zinc oxide arrester resistive current tester used to test the electrical performance of each phase of metal zinc oxide arrester (MOA). This instrument is suitable for on-site live test of zinc oxide arresters of various voltage levels, as well as delivery and acceptance tests performed by the laboratory under power failure. By measuring parameters such as full current and resistive current, dangerous defects such as moisture inside the zinc oxide arrester and valve aging can be found in time.

Features:
1. Appearance design: hand held, light and portable;

2. Lightweight: the weight of the host is 1.5kg;

3. Portable: hand held design;

4. Tester and wire in one case: test accessories and wires are not easy to be lost

5. Voltage collector: small and portable, transmits three-phase voltage in real time.

Six innovative technologies:

Diversified test modes

Data real-time printing

High precision, wide range

Large-capacity lithium battery, long-lasting work

Wide range of full current test

High-precision large color screen

Technical Parameter:

Appearance Design	Imported high-strength materials, handheld, light and portable

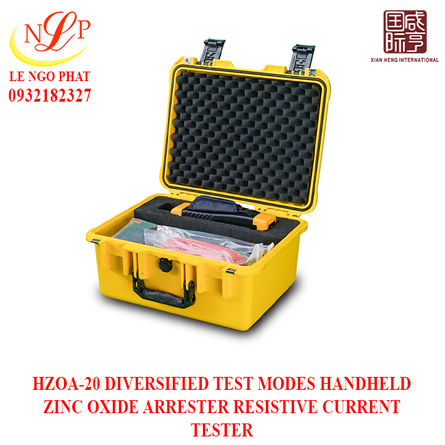

Tester and wires in one case	The main unit and the wire box are integrated, easy to carry, and the test accessories are not easy to lose
Screen Display	Large high-brightness color LCD screen, intuitive display, still clearly visible in strong sunlight
Full Current Measurement Range	0-20mA, 50Hz/60Hz
Accuracy	±（0.05+5uA）
Resistive current Cardinal Wave Accuracy	±（0.05+5uA）
Current Harmonic Measurement Accuracy	±（0.1+10uA）
Current Channel Input Resistance	≤2Ω
Reference Voltage Input Range	25V-250V Effective value, 50Hz/60Hz
Reference Voltage Measurement Accuracy	±（0.05+0.5V）
Reference Voltage Channel Input Resistance	≥1500kΩ
Electric Field Intensity Input Range	30kV/m-300kV/m
Electric Field Intensity Measurement Accuracy	±（reading×10%）
Store and Print	Equipped with an external printer for easy data printing, data can be stored in real time
Power Supply	Built-in large-capacity lithium battery, one charge, can continuously test for more than 8 hours
Dimension	24615662mm
Weight	1.5Kg
