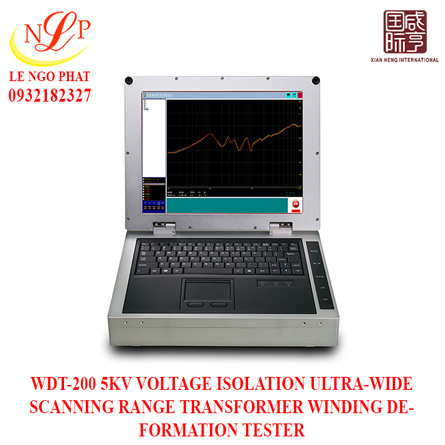

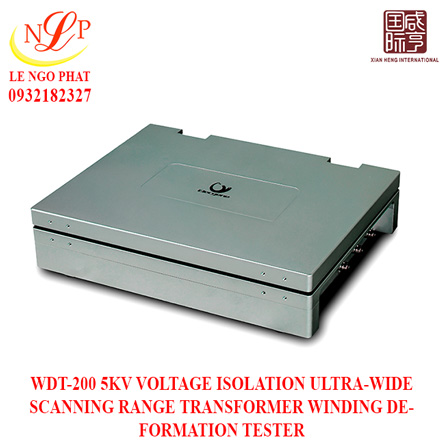

WDT-200 5KV VOLTAGE ISOLATION ULTRA-WIDE SCANNING RANGE TRANSFORMER WINDING DEFORMATION TESTER

WDT-200 5KV VOLTAGE ISOLATION ULTRA-WIDE SCANNING RANGE TRANSFORMER WINDING DEFORMATION TESTER

Model: WDT-200

Output Voltage: Vpp-25V automatic adjustment during test

Input Impedance: 1MΩ （Built-in 50Ω matching resistance in response channel）

Sweep Mode: Linear or logarithmic, sweep interval and number of points can be set arbitrarily

Frequency Sweep Range: 10Hz－15MHz

Output Impedance:50Ω

Measuring Dynamic Range:－120dB-20dB

Curve Display: Amplitude-frequency curve

Frequency Accuracy: 0.00001

Power Supply: AC220V±10%

Dimension: 380*240*80mm

Weight: 4.5kg

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: WDT-200

Model: WDT-200

Description:

The new generation of WDT-200 transformer winding deformation tester adopts all-aluminum CNC precision carving design, frosted metal process, highlighting the metal texture, and integrated military industrial control computer, making test easier and faster. The test wires, instrument, and outer box are integrated, and the trolley case design is convenient to carry, test accessories are never easy to be lost. The frequency sweep range is up to 15MHz, test accuracy is higher, and anti-interference ability is stronger. One machine in hand, worry-free testing, an essential instrument for power transformer winding testing.

Features:
1. American PELICAN trolley case: easy to carry, IP67 protection grade;

2. Tester and wire in one case: test accessories and wires are not easy to be lost

3. Built-in layout: reasonable and beautiful;

4. Frosted metal process, highlighting the metal texture;

5. Load-bearing over 25 kg, strong and durable.

Five innovative technologies:

Ultra-wide output voltage

Vpp-25V

Novel diagnostic technology

Reference conclusions that can load 9 curves at the same time and self-diagnose

Ultra-wide scanning range

10Hz-15MHz

Ultra-fast test speed

Single phase winding 1-2 mins

Safe and stable

5kV voltage isolation and digital frequency synthesis

Technical Parameter:

Appearance Design	CNC precision carving integrated design, matte metal craftsmanship, highlighting the metal texture
Tester and wires in one case	The main unit and the wire box are integrated, the trolley box is convenient to carry, and the test wire accessories are not easy to lose
Integrated	Integrating test equipment and industrial computer, the computer does not need to be equipped separately, and the test is simpler and faster
Measuring speed	Single-phase winding 1-2 min
Output Voltage	Vpp-25V automatic adjustment during test
Input Impedance	1MΩ （Built-in 50Ω matching resistance in response channel）
Sweep Mode	Linear or logarithmic, sweep interval and number of points can be set arbitrarily
Frequency Sweep Range	10Hz－15MHz
Output Impedance	50Ω
Measuring Dynamic Range	－120dB-20dB
Curve Display	Amplitude-frequency curve
Frequency Accuracy	0.00001
Power Supply	AC220V±10%
Dimension	38024080mm
Weight	4.5kg
