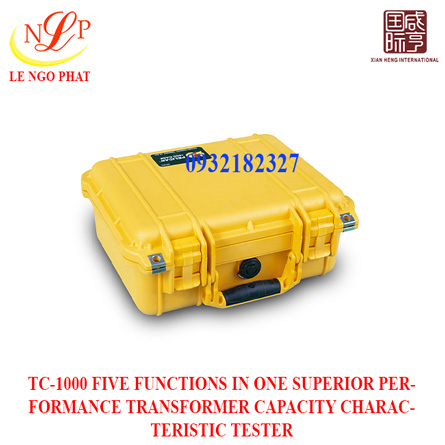

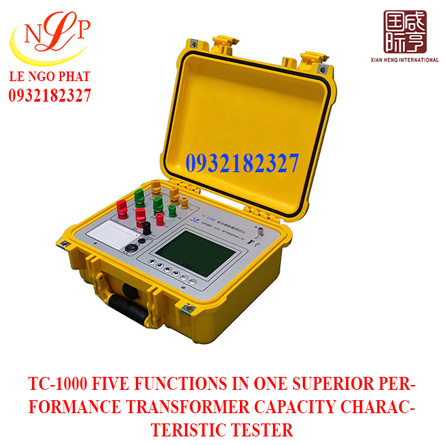

TC-1000 FIVE FUNCTIONS IN ONE SUPERIOR PERFORMANCE TRANSFORMER CAPACITY CHARACTERISTIC TESTER

Description:

    TC-1000 adopts American IP67 PELICAN case, small size, light weight, powerful function and simple operation. Specially used for measuring the capacity of distribution power transformers, and measuring transformer no-load and short-circuit losses, and it has a harmonic analysis function to facilitate analysis of on-site power grid quality. The instrument circuit has a sophisticated design and a unique idea, which uses advanced six-channel synchronous AC sampling and digital signal processing technology, so that its performance is superior, the data is accurate and reliable, and it can completely replace the traditional instrument test method, it can display and record all the measurement data that users care about, and can be used as a high-precision communication indicator on site.

Features:
1. Appearance design: American PALICAN Protector Case, IP67.

2. Processing design: metal brushed panel, ultra-light and high-strength titanium alloy screws with high corrosion resistance.

3. High brightness color screen: still visible under strong sunlight

4. Customized accessory housing, greatly reducing wear and tear on core accessories

Five innovative technologies :

1. A unique preliminary judgment function for core model of oil-immersed or dry-type distribution transformer.

2. Soft start and soft stop functions, reduce impact on the test products

3. Superior performance, unique current, voltage, frequency, and temperature correction

4. Five functions in one, testing capacity, zero-sequence impedance, load loss, no-load loss, and harmonic analysis

5. Built-in large capacity lithium battery, no trouble of getting electricity on site.

Technical Parameter:
