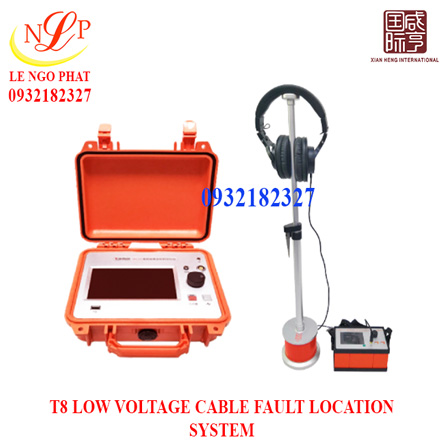

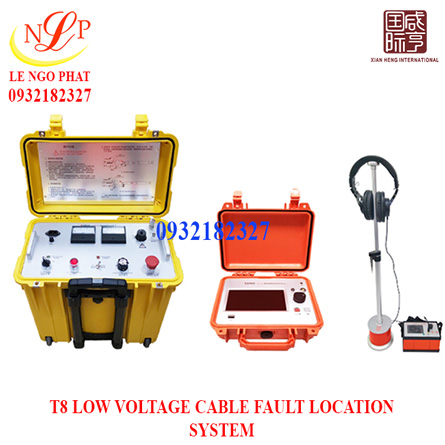

T8 LOW VOLTAGE CABLE FAULT LOCATION SYSTEM

T8 LOW VOLTAGE CABLE FAULT LOCATION SYSTEM

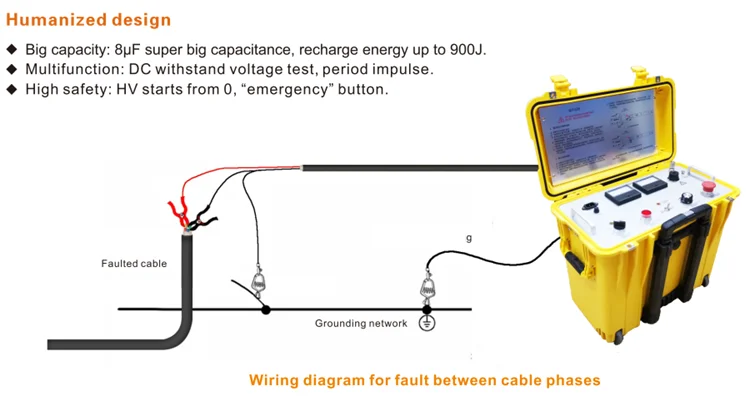

Fault location power LP15/8

DC voltage output: 0-15 kV continuously adjustable

Output power: Peak 2000W

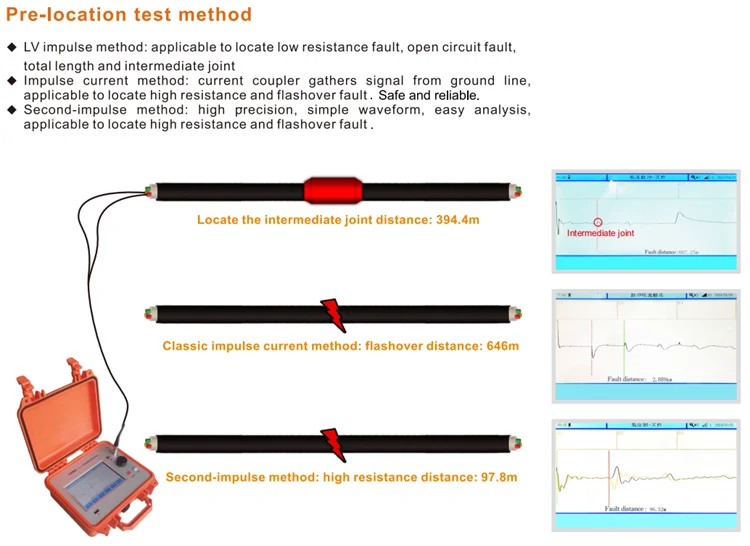

able fault pre-locator (TDR) WL20

Low voltage impulse launching voltage: 30V

Sampling frequency: 200MHz

Max ranging scope: 100km

Dead zone: 2m

Cable fault pin-pointer PP20

Precision of point positioning: 0.1m

Precision of path location: 0.1m

Precision of step voltage method: 0.1m

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: T8

Model: T8

Features:

Technical Data:

Fault location power LP15/8
DC voltage output	0-15 kV continuously adjustable
Output power	Peak 2000W
Capacitance	8μf
Max discharge energy	900J
Power supply	Lithium battery
Size	500×305×457(mm)
Weight	29.5kg
Cable fault pre-locator (TDR) WL20
Low voltage impulse launching voltage	30V
Sampling frequency	200MHz
Max ranging scope	100km
Dead zone	2m
Max resolution	0.4m
Power supply	AC220V, 50Hz
Size	274×218×81(mm)
Weight	3.5kg
Cable fault pin-pointer PP20
Precision of point positioning	0.1m
Precision of path location	0.1m
Precision of step voltage method	0.1m
Work mode	Anti-noise mode: Strong noise reduction mode Background suppression noise reduction mode Point location mode: Intelligent Acousto-Magnetic Time Difference Mode
Display mode	Color LCD
Power	Li-battery, 12h standby
