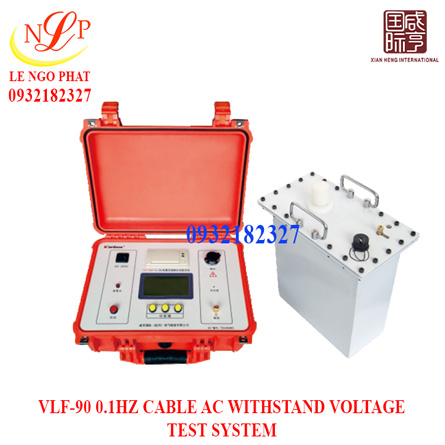

VLF-90 0.1HZ CABLE AC WITHSTAND VOLTAGE TEST SYSTEM

VLF-90 0.1HZ CABLE AC WITHSTAND VOLTAGE TEST SYSTEM

Model: VLF-90

Rated voltage: 90kV(peak value)

Load capacity: 0.1Hz, =1.1μF; 0.05Hz, =2.2μF; 0.02Hz, =5.5μF

Power fuse: 35A

Weight: Controller: 5kg; Step-up: 60kg

Application: =35kV cable

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: VLF-90

Model: VLF-90

Features:

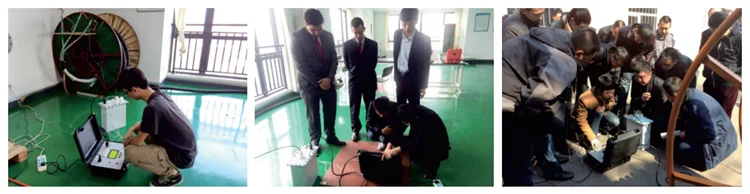

On-site application:

Technical Data:

Model	Rated voltage	Load capacity	Power fuse	Weight	Application
VLF-40	40kV(peak value)	0.1Hz, =1.1μF	10A	Controller: 4kg Step-up: 25kg	=10kV cable
		0.05Hz, =2.2μF
		0.02Hz, =5.5μF
VLF-90	90kV(peak value)	0.1Hz, =1.1μF	35A	Controller: 5kg Step-up: 60kg	=35kV cable
		0.05Hz, =2.2μF
		0.02Hz, =5.5μF

Input voltage	100-240V 50/60Hz
Output current (accuracy ±1%) Resolution	0-44mA 10μA
Output frequency	0.02....0.1Hz， increments of 0.01Hz, default is 0.1Hz
Output mode	AC ultra-low frequency AC symmetrical high voltage test, in all test ranges, the waveform is not affected by the load DC high voltage direct current test positive or negative polarity Fault cable burn-through mode or fault trip mode Outer sheath or shielding layer test mode
HV cable	4.5m HV output cable with alligator clip
Accuracy	3%
Parameters	Voltage and current (effective value and peak value) Capacitance, resistance, time, flashover voltage
Test method	Continuous test
Communication Interface	RS232 interface (including software)，USB
Temperature	Store :-25℃ to +70℃ Operation:-5℃ to +45℃
Size	≤450 x 340 x 520 (mm)
