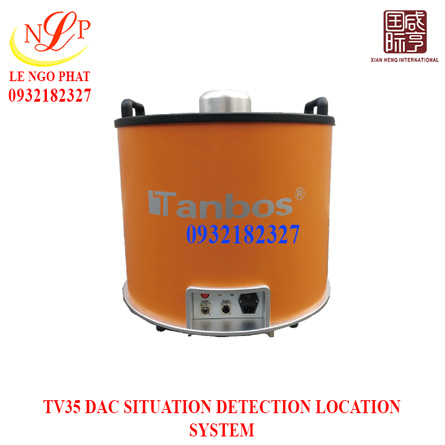

TV35 DAC SITUATION DETECTION LOCATION SYSTEM

Oscillating power supply output voltage peak :0-60 kV(pek)/0-51.2 kV (rms)

Oscillation frequency: 50-800 Hz

Oscillation loop inductance: Not less than 0.8H

Cable capacitance: 0.03 μF -5 μF

PD positioning bandwidth: 150kHz-45MHz

PD measurement accuracy: 1 pC

Location accuracy: 0.1 m

PD calibration range: 50 pC～20nC

High voltage charging current: 10 mA

Cable dielectric loss measurement range: 0.1%-5%, automatic measurement

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: TV35

Model: TV35

Features:

On-site application:

Technical Data:

Oscillating power supply output voltage peak	0-60 kV(pek)/0-51.2 kV (rms)
Oscillation frequency	50-800 Hz
Oscillation loop inductance	Not less than 0.8H
Cable capacitance	0.03 μF -5 μF
PD positioning bandwidth	150kHz-45MHz
PD measurement accuracy	1 pC
Location accuracy	0.1 m
PD calibration range	50 pC～20nC
High voltage charging current	10 mA
Cable dielectric loss measurement range	0.1%-5%, automatic measurement
Testing time	Charging time is not more than 2 seconds, test time is less than 100ms, non-destructive test
Wave	Damped oscillatory waves; frequency domain filtering and wavelet filtering
PD level and trend	It depicts the level and trend of partial discharge during the withstand voltage test, and has a compensation function to truly restore the actual level of the partial discharge
Wireless control	Control the high voltage output through wireless local area network (WLAN) to ensure personal safety, or you can choose wired control
Analysis function	Automatic and manual analysis functions
Cable length correction	Cable length correction function
Anti-interference	Wireless connection or wired connection, eliminate the interference of on-site signal
Power supply	AC220V±10%
