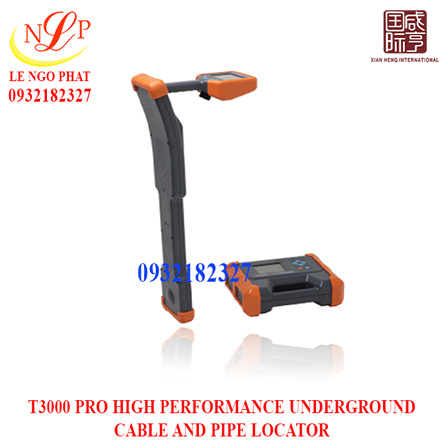

T3000 PRO HIGH PERFORMANCE UNDERGROUND CABLE AND PIPE LOCATOR

T3000 PRO HIGH PERFORMANCE UNDERGROUND CABLE AND PIPE LOCATOR

Transmitter

Output Frequency: 640Hz (Fault finding booster optional), 1280Hz (complex frequency), 10kHz, 33kHz,82kHz, 197kHz

Output power: Max. 10W, 10 levels adjustable, auto impedance matching

Direct connection voltage: Max. 150Vpp

HMI: 320 X 240 (mm) LCD

Power supply: 4*built-in 18650 Li-on batteries, standard 7.4V, 6.8Ah

Receiver

Receiving frequency:

Active detection frequency: 640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz.
Power frequency passive detection frequency: 50Hz/60Hz and 250Hz/300Hz (user configurable).
Radio frequency passive detection frequency bands: center frequencies are 10kHz, 33kHz, 82kHz, respectively

Cable identification mode: Receiving Clamp (optional) intelligent identification and sensor (optional) identification

HMI: 320 X 240 (mm) LCD

Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: T3000

Model: T3000

Features:

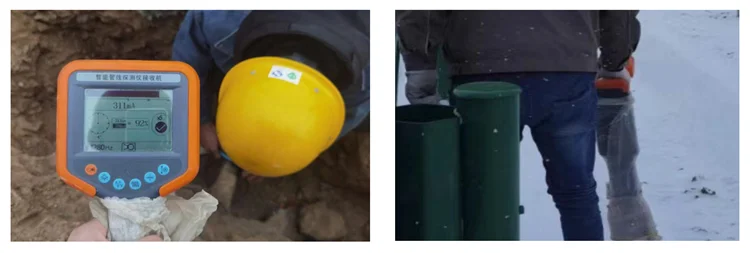

On-site application:

Technical Data:

Transmitter
Output	Direct Connection output, Clamp Coupling Output(optional), Radiation output
Output Frequency	640Hz (Fault finding booster optional), 1280Hz (complex frequency), 10kHz, 33kHz,82kHz, 197kHz
Output power	Max. 10W, 10 levels adjustable, auto impedance matching
Direct connection voltage	Max. 150Vpp
HMI	320 X 240 (mm) LCD
Power supply	4*built-in 18650 Li-on batteries, standard 7.4V, 6.8Ah
Receiver
Input	Internal receiving loop, Clamp (optional), sensor (optional), fault locating A Frame (optional)
Receiving frequency	Active detection frequency: 640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz. Power frequency passive detection frequency: 50Hz/60Hz and 250Hz/300Hz (user configurable). Radio frequency passive detection frequency bands: center frequencies are 10kHz, 33kHz, 82kHz, respectively
Pipe detection mode	Wide peak method, narrow peak method, valley method
Cable identification mode	Receiving Clamp (optional) intelligent identification and sensor (optional) identification
HMI	320 X 240 (mm) LCD
Others
Volume	Transmitter: 280 X 220 X 90 (mm) Receiver: 680 X 277 X 120 (mm)
Weight	Transmitter: 2.3kg Receiver: 2kg
Charger	Input: AC 100-240V, 50/60Hz Output: DC8.4V, 2A
Working environment	Temperature: -10-40℃ Humidity: 5-90% Elevation: ＜4500m
