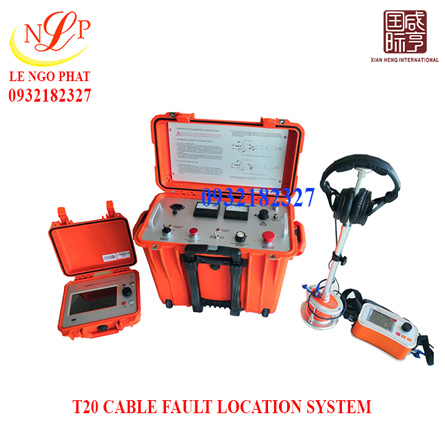

T20 CABLE FAULT LOCATION SYSTEM

Fault location power LP30/2

DC voltage output: 0-35 kV continuously adjustable

Max charging current: 30mA

Max discharge energy: 900J

Cable fault pre-locator (TDR)WL20

Low voltage impulse launching voltage: 30V

Sampling frequency: 200MHz

Max ranging scope: 100km

Dead zone: 2m

Max resolution: 0.4m

Cable fault pin-pointer PP20

Precision of point positioning: 0.1m

Precision of path location: 0.1m

Precision of step voltage method: 0.1m

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: T20

Model: T20

Features:

Technical Data:

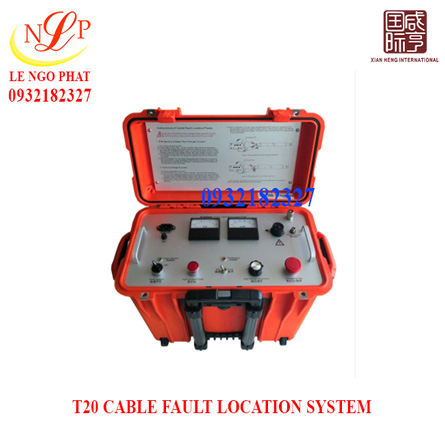

Fault location power LP30/2
DC voltage output	0-35 kV continuously adjustable
Max charging current	30mA
Max discharge energy	900J
Polarity of output voltage	Negative polarity
Power supply	Lithium battery
Capacity	1kVA
Volume	500×305×457(mm)
Net weight	28kg

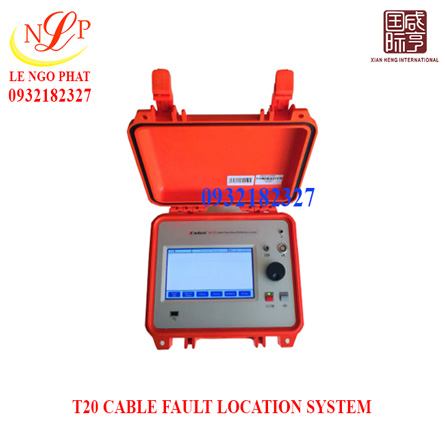

Cable fault pre-locator (TDR)WL20
Low voltage impulse launching voltage	30V
Sampling frequency	200MHz
Max ranging scope	100km
Dead zone	2m
Max resolution	0.4m
Power supply	Polymer Li-ion battery pack, for Min 5 hours continuous usage.
Power supply	AC220V, 50Hz
Size	274×218×81(mm)
Weight	3.5kg
Cable fault pin-pointer PP20
Precision of point positioning	0.1m
Precision of path location	0.1m
Precision of step voltage method	0.1m
Work mode	Anti-noise mode: Strong noise reduction mode Background suppression noise reduction mode Point location mode: Intelligent Acousto-Magnetic Time Difference Mode
Display mode	Color LCD
Power	Li-battery, 12h standby
