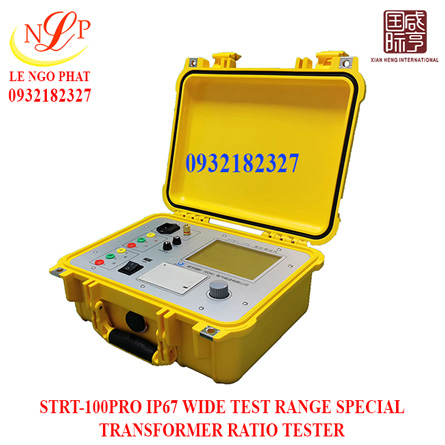

STRT-100PRO IP67 WIDE TEST RANGE SPECIAL TRANSFORMER RATIO TESTER
Model: STRT-100PRO
Group Test Range: 1-12
Turn Ratio Test Range: 0.5-10000
Angle Difference Test Range:0-360°
Turn Ratio Test Accuracy
(0.5-1000):+0.001 (1001-2000):+0.002
(2001-4000):+0.003 (4001-10000):+0.005
Angle Difference Test Accuracy: 30°
Dielectric Strength: Insulation resistance to the case≥100MΩ, Shell tolerance 2kV, 1 minute；
Store and Print: Built-in thermal printer, fast, silent, real-time data storage
Power Supply: Powered by large-capacity lithium battery, no need to worry about getting power on site
Dimension: 340*295*152mm3
Weight: 4.5kg
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
Description:
STRT-100Pro Special Transformer Ratio Tester, the appearance adopts American IP67 PELICAN case, with metal brushed panel, ultra-light and high-strength titanium alloy screws with extremely high corrosion resistance. It can be used for 3-phase transformer test of power system, especially suitable for testing Z-winding transformers, rectifier transformers, and balance transformers. Because of its light weight, portable and high detecting accuracy, it is an indispensable equipment for power systems, transformer manufacturers and circuit power systems for transformer ratio, winding group, polarity, and angle testing.
Features:
1. Appearance design: adopts American PALICAN Protector Case, IP67.
2. Processing design: with metal brushed panel, ultra-light and high-strength titanium alloy screws with extremely high corrosion resistance.
3. High brightness color screen: still visible under strong sunlight
4. Customized accessory housing, greatly reducing wear and tear on core accessories
Three innovative technologies:
1. Built-in large capacity lithium battery, no trouble of getting electricity on site.
2. With over-current protection and function of checking wiring, it can protect the test safety.
3. Wide test range, compatible with special transformers such as rectifier transformer, Scott, Inverse Scott, balance transformer, etc
Technical Parameter:
|
Appearance Design |
PELICAN Protector Case IP67 |
|
Processing Design |
Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the |
|
Screen Display |
Large high-brightness color LCD screen, intuitive display, still clearly visible in strong sunlight |
|
Group Test Range |
1-12 |
|
Turn Ratio Test Range |
0.5-10000 |
|
Angle Difference Test Range |
0-360° |
|
Turn Ratio Test Accuracy |
(0.5-1000):+0.001 (1001-2000):+0.002 |
|
Angle Difference Test Accuracy |
30° |
|
Dielectric Strength |
Insulation resistance to the case≥100MΩ, Shell tolerance 2kV, 1 minute； |
|
Store and Print |
Built-in thermal printer, fast, silent, real-time data storage |
|
Power Supply |
Powered by large-capacity lithium battery, no need to worry about getting power on site |
|
Dimension |
340*295*152mm3 |
|
Weight |
4.5kg |
Packing List:
|
NO. |
Name |
Quantity |
|
1 |
Main unit |
1 |
|
2 |
Red test line |
1 |
|
3 |
Black test line |
1 |
|
4 |
Ground wire |
1 |
|
5 |
Power cable |
1 |
|
6 |
Fuse（2A） |
5 |
|
7 |
Printer paper |
1 |
|
8 |
Factory inspection report |
1 |
|
9 |
Manual |
1 |
|
10 |
Certificate of conformity |
1 |
