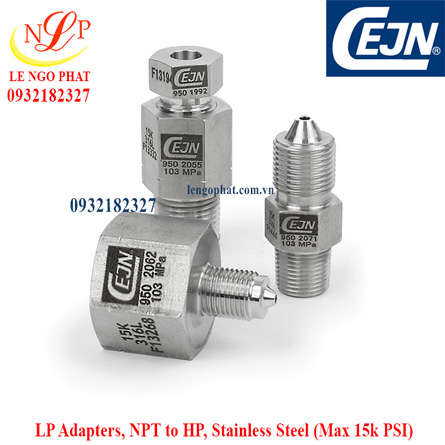

LP Adapters, NPT to HP, Stainless Steel

LP (Max 15k PSI)Adapters

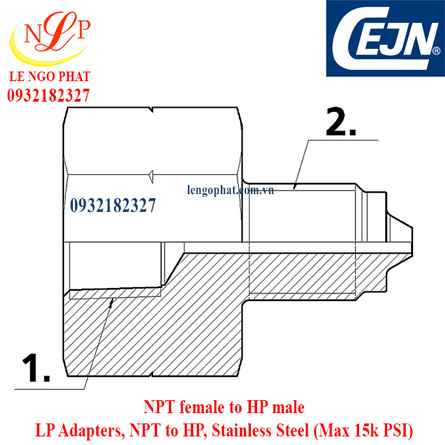

Industry standard adapters for 1/8" to 1" NPT to HP tubes sizes 1/4", 3/8", 9/16" and 1". Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life and safety weep holes on all the connection ports

Giá: 0932182327

Mã sản phẩm: NPT female to HP male

Model: 199502059, 199502060, 199502061, 199502062, 199502063, 199502064, 199502065, 199502066

LP Adapters, NPT to HP, Stainless Steell (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502059	NPT female to HP male	conn.1: 29 conn.2: 34 Nm	1/4" NPT	1/4" HP	103.0 MPa
199502060	NPT female to HP male	conn.1: 29 conn.2:68 Nm	1/4" NPT	3/8" HP	103.0 MPa
199502061	NPT female to HP male	conn.1: 29 conn.2: 150 Nm	1/4" NPT	9/16" HP	103.0 MPa
199502062	NPT female to HP male	conn.1: 34 conn.2: 34 Nm	3/8" NPT	1/4" HP	103.0 MPa
199502063	NPT female to HP male	conn.1: 34 conn.2: 68 Nm	3/8" NPT	3/8" HP	103.0 MPa
199502064	NPT female to HP male	conn.1: 61 conn.2: 34 Nm	1/2" NPT	1/4" HP	103.0 MPa
199502065	NPT female to HP male	conn.1: 61 conn.2: 68 Nm	1/2" NPT	3/8" HP	103.0 MPa
199502066	NPT female to HP male	conn.1: 61 conn.2: 150 Nm	1/2" NPT	9/16" HP	103.0 MPa
