LP Adapters HP female to NPT male Stainless Steel

LP Adapters HP female to NPT male Stainless Steel

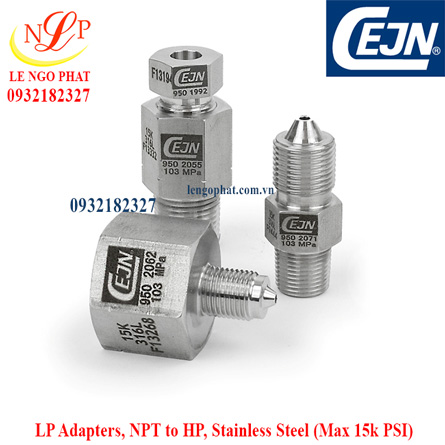

LP Adapters, NPT to HP, Stainless Steel

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/8" to 1" NPT to HP tubes sizes 1/4", 3/8", 9/16" and 1". Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life and safety weep holes on all the connection ports.

Giá: 0932182327

Mã sản phẩm: HP female to NPT male

Model: 199502050, 199502051, 199502052, 199502053, 199502054, 199502055, 199502056, 199502057, 199502058

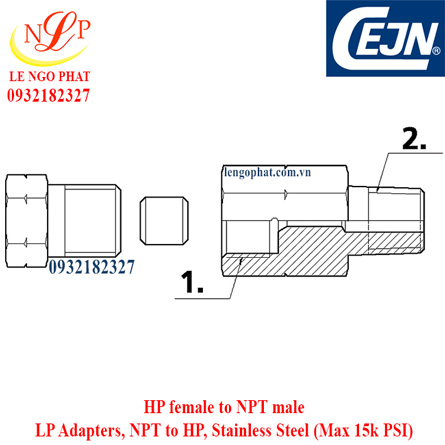

LP Adapters, NPT to HP, Stainless Steell (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502050	HP female to NPT male	conn.1: 34 conn.2: 29 Nm	1/4" HP	1/4" NPT	103.0 MPa
199502051	HP female to NPT male	conn.1: 34 conn.2: 34 Nm	1/4" HP	3/8" NPT	103.0 MPa
199502052	HP female to NPT male	conn.1: 34 conn.2: 61 Nm	1/4" HP	1/2" NPT	103.0 MPa
199502053	HP female to NPT male	conn.1: 68 conn.2: 29 Nm	3/8" HP	1/4" NPT	103.0 MPa
199502054	HP female to NPT male	conn.1: 68 conn.2: 34 Nm	3/8" HP	3/8" NPT	103.0 MPa
199502055	HP female to NPT male	conn.1: 68 conn.2: 61 Nm	3/8" HP	1/2" NPT	103.0 MPa
199502056	HP female to NPT male	conn.1: 150 conn.2: 34 Nm	9/16" HP	3/8" NPT	103.0 MPa
199502057	HP female to NPT male	conn.1: 150 conn.2: 61 Nm	9/16" HP	1/2" NPT	103.0 MPa
199502058	HP female to NPT male	conn.1: 150 conn.2: 163 Nm	9/16" HP	1" NPT	103.0 MPa
