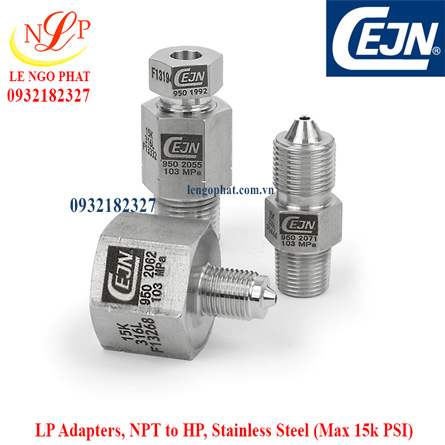

LP Adapters, NPT to HP, Stainless Steel

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/8" to 1" NPT to HP tubes sizes 1/4", 3/8", 9/16" and 1". Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life and safety weep holes on all the connection ports.

Giá: 0932182327

Mã sản phẩm: HP male x NPT male adapter

Model: 199502067, 199502068, 199502069, 199502070, 199502071, 199502072, 199502073, 199502074, 199502075, 199502076, 199502077

LP Adapters, NPT to HP, Stainless Steell (Max 15k PSI)

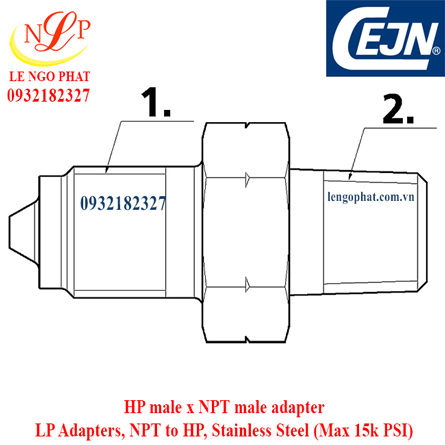

Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502067	HP male x NPT male adapter	conn.1: 34 conn.2: 29 Nm	1/4" HP	1/4" NPT	103.0 MPa
199502068	HP male x NPT male adapter	conn.1: 34 conn.2: 34 Nm	1/4" HP	3/8" NPT	103.0 MPa
199502069	HP male x NPT male adapter	conn.1: 34 conn.2: 61 Nm	1/4" HP	1/2" NPT	103.0 MPa
199502070	HP male x NPT male adapter	conn.1: 68 conn.2: 29 Nm	3/8" HP	1/4" NPT	103.0 MPa
199502071	HP male x NPT male adapter	conn.1: 68 conn.2: 34 Nm	3/8" HP	3/8" NPT	103.0 MPa
199502072	HP male x NPT male adapter	conn.1: 68 conn.2: 61 Nm	3/8" HP	1/2" NPT	103.0 MPa
199502073	HP male x NPT male adapter	conn.1: 150 conn.2: 29 Nm	9/16" HP	1/4" NPT	103.0 MPa
199502074	HP male x NPT male adapter	conn.1: 150 conn.2: 34 Nm	9/16" HP	3/8" NPT	103.0 MPa
199502075	HP male x NPT male adapter	conn.1: 150 conn.2: 61 Nm	9/16" HP	1/2" NPT	103.0 MPa
199502076	HP male x NPT male adapter	conn.1: 150 conn.2: 102 Nm	9/16" HP	3/4" NPT	103.0 MPa
199502077	HP male x NPT male adapter	conn.1: 150 conn.2: 163 Nm	9/16" HP	1" NPT	103.0 MPa
