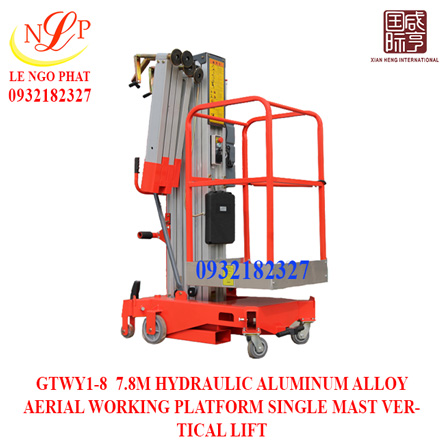

GTWY1-8 7.8M HYDRAULIC ALUMINUM ALLOY AERIAL WORKING PLATFORM SINGLE MAST VERTICAL LIFT

Model: GTWY1-8

Loading Capacity: 150kg

Max. Working Height:9.8m

Max. Platform Height: 7.8m

Occupants: 1

Weight:

AC:345kg

DC: 380kg

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: GTWY1-8

Model: GTWY1-8

Single Mast Vertical Lift
Model	GTWY1-5	GTWY1-6	GTWY1-8	GTWY1-9	GTWY1-10	GTWY1-12
Platform
Max. Working Height	6.7m	8.2m	9.8m	11.2m	12.4m	14m
Max. Platform Height	4.7m	6.2m	7.8m	9.2m	10.4m	12m
Loading Capacity	150kg	150kg	150kg	150kg	136kg	120kg
Occupants	1	1	1	1	1	1
Platform Dimension	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m
Overall Dimension
Overall Height	1.99m	1.99m	1.99m	1.99m	1.99m	2.68m
Overall Width	0.74m	0.74m	0.74m	0.74m	0.74m	0.81m
Overall Length	1.24m	1.24m	1.36m	1.4m	1.42m	1.46m
Outrigger coverage	1.7m x 1.7m	1.7m x 1.7m	1.6m x 1.6m	1.7m x 1.7m	1.9m x1.7m	2.3m x1.9m
Weight
AC	300kg	320kg	345kg	365kg	385kg	460kg
DC	335kg	355kg	380kg	400kg	420kg	495kg
Power
AC	380V/220V /110V	380V/220V /110V	380V/220V /110V	380V/220V /110V	380V/220V /110V	380V/220V /110V
AC Motor	0.75KW	0.75KW	0.75KW	0.75KW	0.75KW	0.75KW
DC	12V	12V	12V	12V	12V	12V
DC motor	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A

TỪ KHÓA TÌM KIẾM: XE NÂNG NGƯỜI LÀM VIỆC 4M, XE NÂNG NGƯỜI LÀM VIỆC 3M, XE NÂNG NGƯỜI LÀM VIỆC 3.6M, XE NÂNG NGƯỜI LÀM VIỆC 4.8M, XE NÂNG NGƯỜI LÀM VIỆC 6.5, XE NÂNG NGƯỜI LÀM VIỆC 7.7M, XE NÂNG NGƯỜI LÀM VIỆC 9M, MÁY NÂNG 12M, MÁY NÂNG 14M, XE NÂNG NGƯỜI LÀM VIỆC 16M.

Single Mast Vertical Lift
Model	GTWY1-5	GTWY1-6	GTWY1-8	GTWY1-9	GTWY1-10	GTWY1-12
Platform
Max. Working Height	6.7m	8.2m	9.8m	11.2m	12.4m	14m
Max. Platform Height	4.7m	6.2m	7.8m	9.2m	10.4m	12m
Loading Capacity	150kg	150kg	150kg	150kg	136kg	120kg
Occupants	1	1	1	1	1	1
Platform Dimension	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m
Overall Dimension
Overall Height	1.99m	1.99m	1.99m	1.99m	1.99m	2.68m
Overall Width	0.74m	0.74m	0.74m	0.74m	0.74m	0.81m
Overall Length	1.24m	1.24m	1.36m	1.4m	1.42m	1.46m
Outrigger coverage	1.7m x 1.7m	1.7m x 1.7m	1.6m x 1.6m	1.7m x 1.7m	1.9m x1.7m	2.3m x1.9m
Weight
AC	300kg	320kg	345kg	365kg	385kg	460kg
DC	335kg	355kg	380kg	400kg	420kg	495kg
Power
AC	380V/220V /110V	380V/220V /110V	380V/220V /110V	380V/220V /110V	380V/220V /110V	380V/220V /110V
AC Motor	0.75KW	0.75KW	0.75KW	0.75KW	0.75KW	0.75KW
DC	12V	12V	12V	12V	12V	12V
DC motor	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A

Single Mast Vertical Lift
Model	GTWY1-5	GTWY1-6	GTWY1-8	GTWY1-9	GTWY1-10	GTWY1-12
Platform
Max. Working Height	6.7m	8.2m	9.8m	11.2m	12.4m	14m
Max. Platform Height	4.7m	6.2m	7.8m	9.2m	10.4m	12m
Loading Capacity	150kg	150kg	150kg	150kg	136kg	120kg
Occupants	1	1	1	1	1	1
Platform Dimension	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m	0.67m x 0.66m
Overall Dimension
Overall Height	1.99m	1.99m	1.99m	1.99m	1.99m	2.68m
Overall Width	0.74m	0.74m	0.74m	0.74m	0.74m	0.81m
Overall Length	1.24m	1.24m	1.36m	1.4m	1.42m	1.46m
Outrigger coverage	1.7m x 1.7m	1.7m x 1.7m	1.6m x 1.6m	1.7m x 1.7m	1.9m x1.7m	2.3m x1.9m
Weight
AC	300kg	320kg	345kg	365kg	385kg	460kg
DC	335kg	355kg	380kg	400kg	420kg	495kg
Power
AC	380V/220V /110V	380V/220V /110V	380V/220V /110V	380V/220V /110V	380V/220V /110V	380V/220V /110V
AC Motor	0.75KW	0.75KW	0.75KW	0.75KW	0.75KW	0.75KW
DC	12V	12V	12V	12V	12V	12V
DC motor	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A
