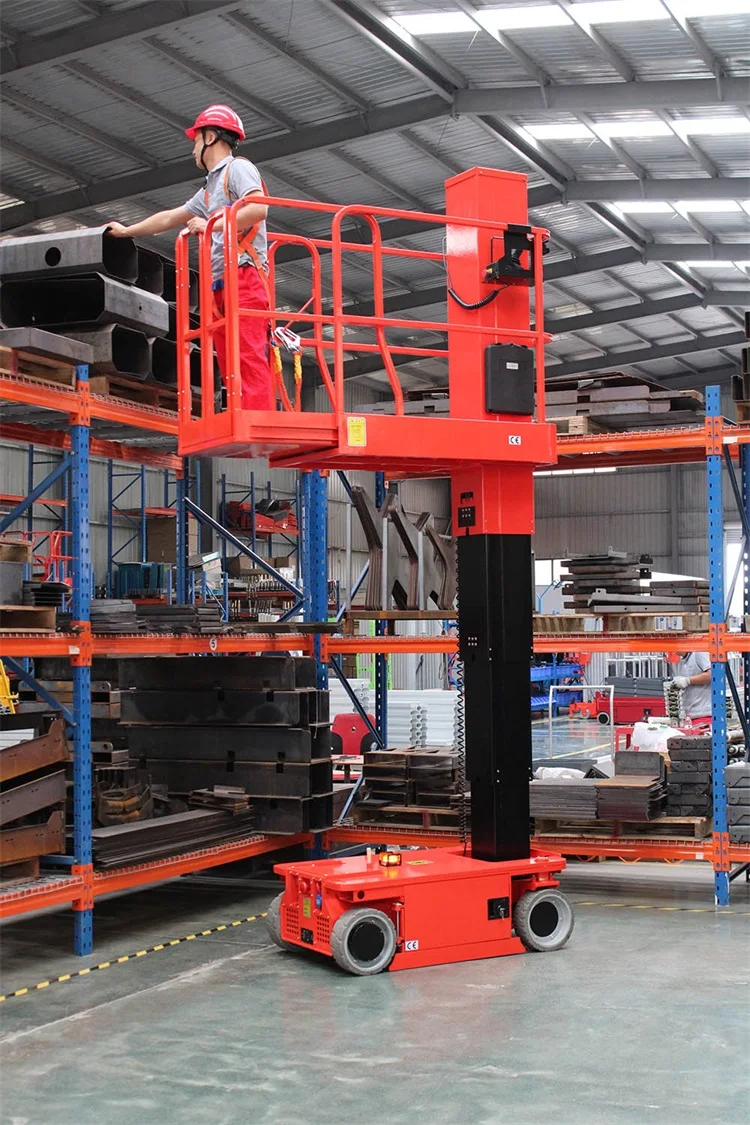

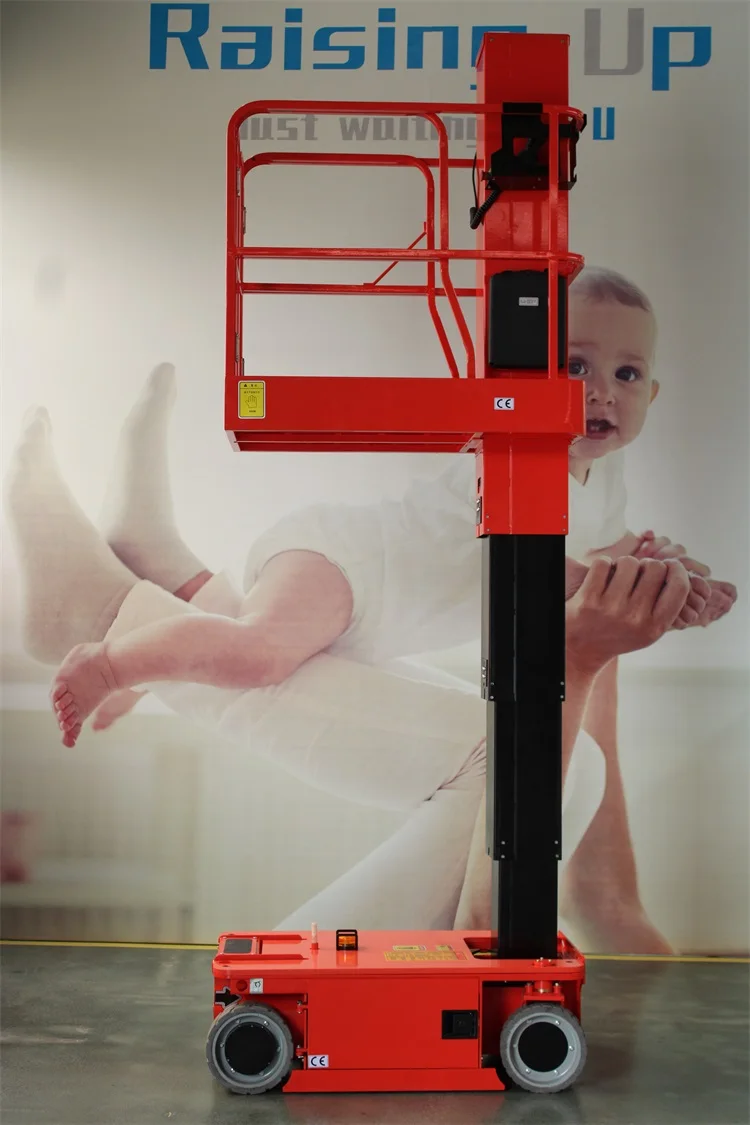

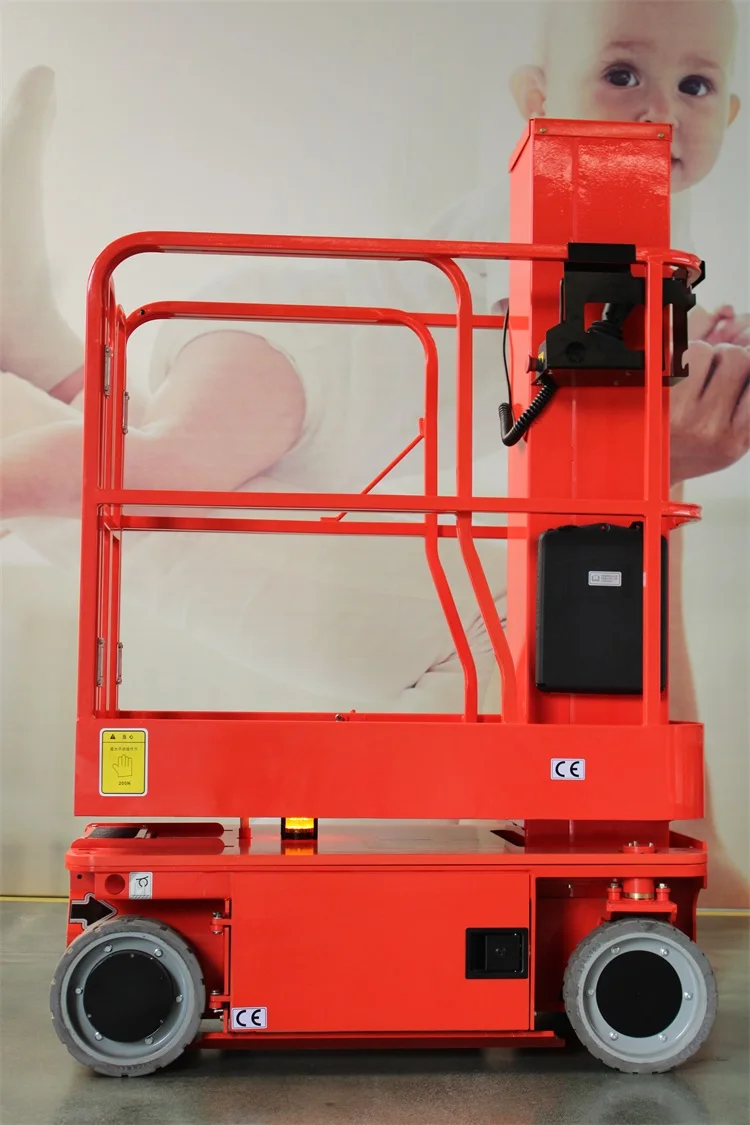

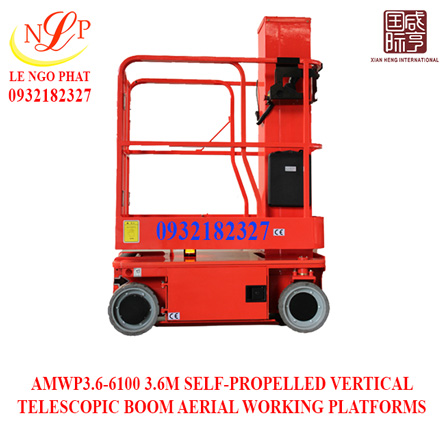

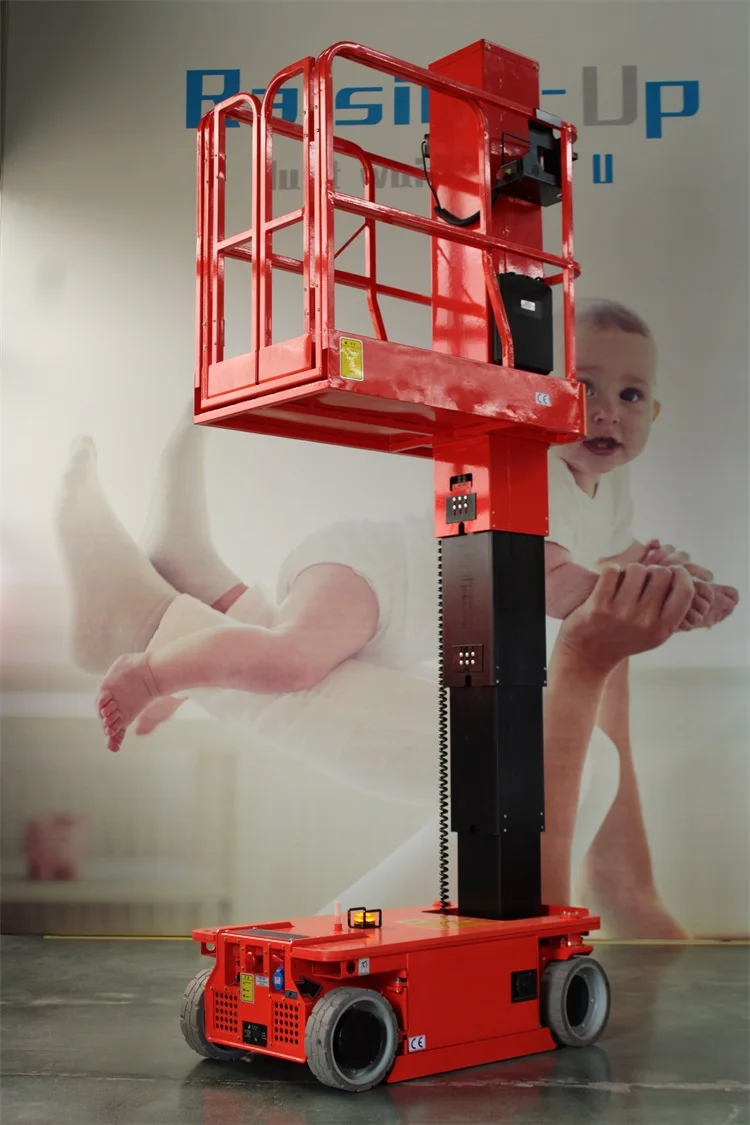

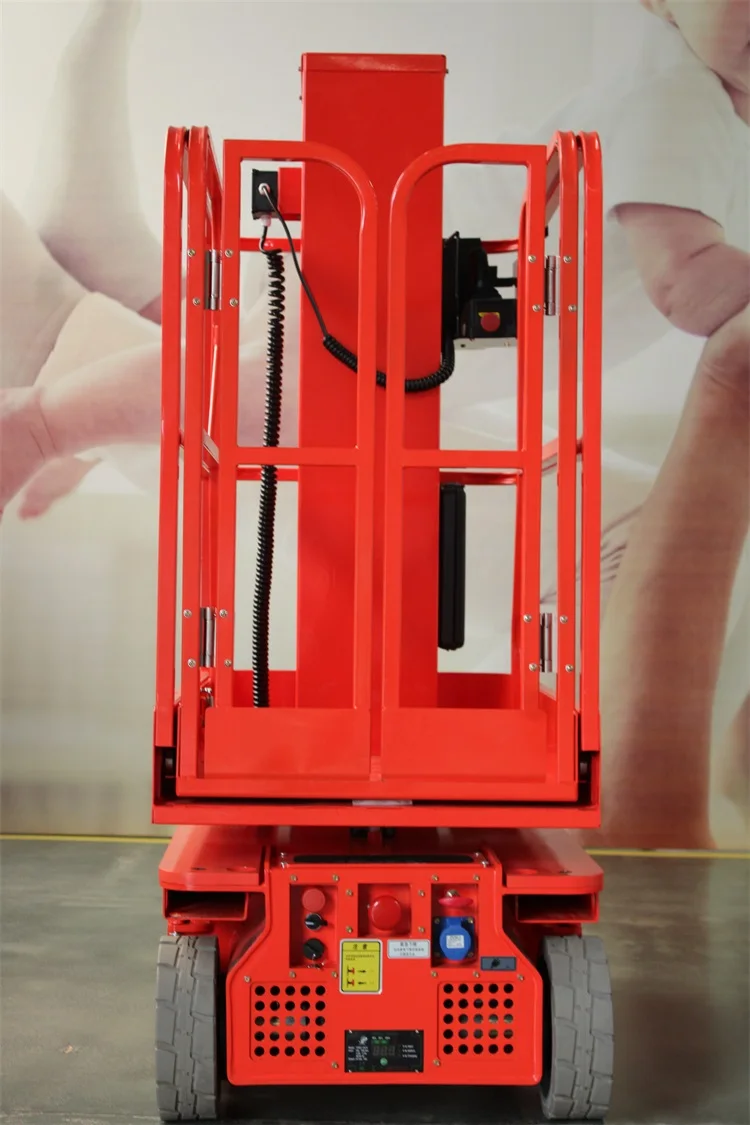

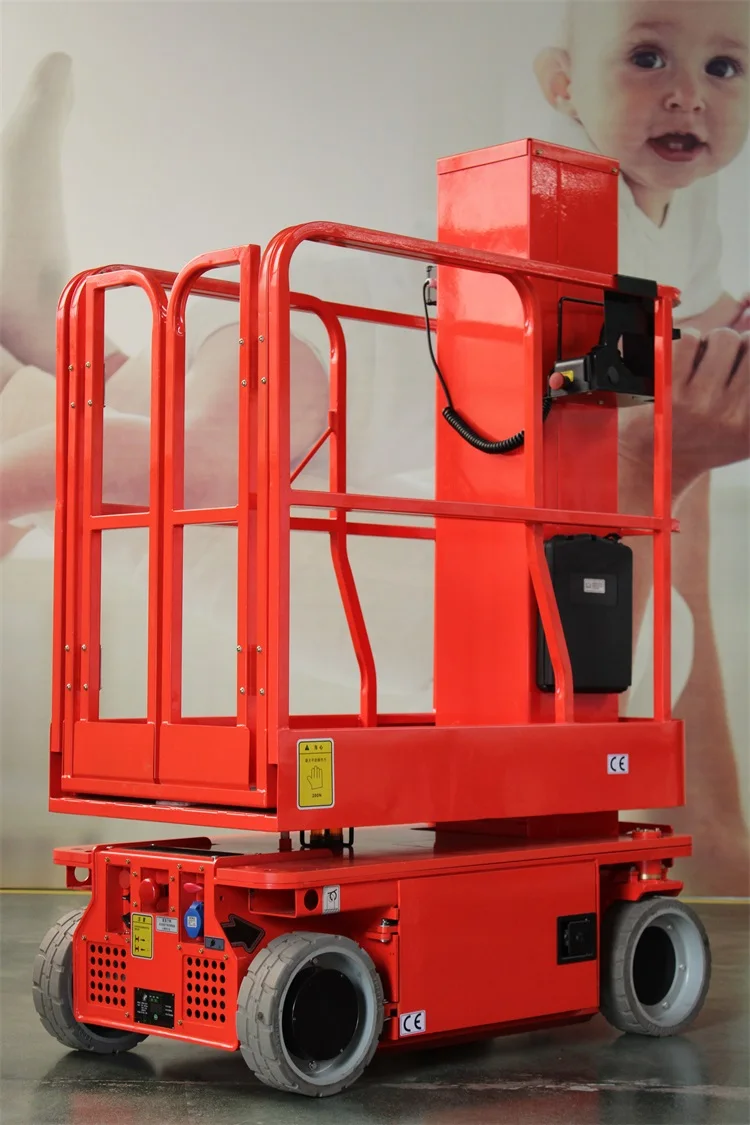

AMWP3.6-6100 3.6M SELF-PROPELLED VERTICAL TELESCOPIC BOOM AERIAL WORKING PLATFORMS

Model: AMWP3.6-6100

Loading Capacity: 227kg

Max. Platform Height: 5.6m

Max. Platform Height: 3.6m

Weight:810kg

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: AMWP3.6-6100

Model: AMWP3.6-6100

Self-propelled Vertical Boom
Model	AMWP3.6-6100	AMWP4.8-6100
Max. Working Height	5.6m	6.8m
Max. Platform Height	3.6m	4.8m
Loading Capacity	227kg	227kg
Ext. Platform Capacity	114kg	114kg
Overall Length	1.36m	1.36m
Overall Width	0.76m	0.76m
Overall Height	1.7m	1.98m
Platform Dimension	1.8m×0.70m	1.8m×0.70m
Ext. Platform Length	0.51m	0.51m
Wheel Base	1.04m	1.04m
Inner Turning Radius	0m	0m
Outer Turning Radius	1.4m	1.4m
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h
Up/Down Speed	31/32sec	41.5/42sec
Gradeability	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm
Drive Motors	2×24VDC/0.5kW	2×24VDC/0.5kW
Lifting Motor	24VDC/1.3kW	24VDC/1.3kW
Battery	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A
Weight	810kg	980kg
