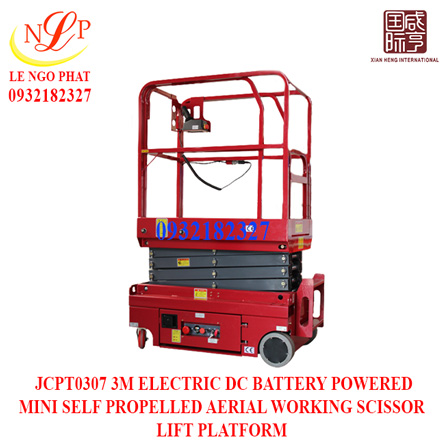

JCPT0307 3M ELECTRIC DC BATTERY POWERED MINI SELF PROPELLED AERIAL WORKING SCISSOR LIFT PLATFORM
Model: JCPT0307
Loading Capacity: 240kg
Occupants: 1
Max. Platform Height: 3m
Weight: 630kg
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
|
Self-Propelled Scissor Lift |
|||
|
Model |
JCPT0307 |
JCPT0407 |
|
|
Loading Capacity |
240kg |
240kg |
|
|
Max. Platform Height |
3m |
4m |
|
|
Occupants |
1 |
1 |
|
|
Platform Dimension |
1.15×0.6m |
1.15×0.6m |
|
|
|
1.32m |
1.32m |
|
|
|
0.76m |
0.76m |
|
|
|
1.83m |
1.92m |
|
|
Platform Extension |
0.55m |
0.55m |
|
|
Extension Load |
100kg |
100kg |
|
|
Up/Down Speed |
34/20sec |
34/25sec |
|
|
Turning Radius |
0 |
0 |
|
|
Maximum Slope |
1.5°/2° |
1.5°/2° |
|
|
Drive Tyres |
Φ0.23×0.08m |
Φ0.23×0.08m |
|
|
Gradeability |
25% |
25% |
|
|
Wheel Base |
1.0m |
1.0m |
|
|
Travel Speed(Stowed) |
4km/h |
4km/h |
|
|
Travel Speed(Raised) |
0.5km/h |
0.5km/h |
|
|
Battery |
2×12v/80Ah |
2×12v/80Ah |
|
|
Lifting Motor |
24v/0.8kw |
24v/0.8kw |
|
|
Drive Motors |
2×24v/0.3kw |
2×24v/0.3kw |
|
|
Charger |
24v/12A |
24v/12A |
|
|
Weight |
630kg |
660kg |
|
TỪ KHÓA TÌM KIẾM: MÁY NÂNG 4M, MÁY NÂNG 3M, MÁY NÂNG 3.6M, MÁY NÂNG 4.8M, MÁY NÂNG 6.5, MÁY NÂNG 7.7M, MÁY NÂNG 9M, MÁY NÂNG 12M, MÁY NÂNG 14M, MÁY NÂNG 16M.
|
Self-Propelled Scissor Lift |
|||
|
Model |
JCPT0307 |
JCPT0407 |
|
|
Loading Capacity |
240kg |
240kg |
|
|
Max. Platform Height |
3m |
4m |
|
|
Occupants |
1 |
1 |
|
|
Platform Dimension |
1.15×0.6m |
1.15×0.6m |
|
|
|
1.32m |
1.32m |
|
|
|
0.76m |
0.76m |
|
|
|
1.83m |
1.92m |
|
|
Platform Extension |
0.55m |
0.55m |
|
|
Extension Load |
100kg |
100kg |
|
|
Up/Down Speed |
34/20sec |
34/25sec |
|
|
Turning Radius |
0 |
0 |
|
|
Maximum Slope |
1.5°/2° |
1.5°/2° |
|
|
Drive Tyres |
Φ0.23×0.08m |
Φ0.23×0.08m |
|
|
Gradeability |
25% |
25% |
|
|
Wheel Base |
1.0m |
1.0m |
|
|
Travel Speed(Stowed) |
4km/h |
4km/h |
|
|
Travel Speed(Raised) |
0.5km/h |
0.5km/h |
|
|
Battery |
2×12v/80Ah |
2×12v/80Ah |
|
|
Lifting Motor |
24v/0.8kw |
24v/0.8kw |
|
|
Drive Motors |
2×24v/0.3kw |
2×24v/0.3kw |
|
|
Charger |
24v/12A |
24v/12A |
|
|
Weight |
630kg |
660kg |
|
TỪ KHÓA TÌM KIẾM: MÁY NÂNG 4M, MÁY NÂNG 3M, MÁY NÂNG 3.6M, MÁY NÂNG 4.8M, MÁY NÂNG 6.5, MÁY NÂNG 7.7M, MÁY NÂNG 9M, MÁY NÂNG 12M, MÁY NÂNG 14M, MÁY NÂNG 16.
|
Self-Propelled Scissor Lift |
|||
|
Model |
JCPT0307 |
JCPT0407 |
|
|
Loading Capacity |
240kg |
240kg |
|
|
Max. Platform Height |
3m |
4m |
|
|
Occupants |
1 |
1 |
|
|
Platform Dimension |
1.15×0.6m |
1.15×0.6m |
|
|
|
1.32m |
1.32m |
|
|
|
0.76m |
0.76m |
|
|
|
1.83m |
1.92m |
|
|
Platform Extension |
0.55m |
0.55m |
|
|
Extension Load |
100kg |
100kg |
|
|
Up/Down Speed |
34/20sec |
34/25sec |
|
|
Turning Radius |
0 |
0 |
|
|
Maximum Slope |
1.5°/2° |
1.5°/2° |
|
|
Drive Tyres |
Φ0.23×0.08m |
Φ0.23×0.08m |
|
|
Gradeability |
25% |
25% |
|
|
Wheel Base |
1.0m |
1.0m |
|
|
Travel Speed(Stowed) |
4km/h |
4km/h |
|
|
Travel Speed(Raised) |
0.5km/h |
0.5km/h |
|
|
Battery |
2×12v/80Ah |
2×12v/80Ah |
|
|
Lifting Motor |
24v/0.8kw |
24v/0.8kw |
|
|
Drive Motors |
2×24v/0.3kw |
2×24v/0.3kw |
|
|
Charger |
24v/12A |
24v/12A |
|
|
Weight |
630kg |
660kg |
|
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
