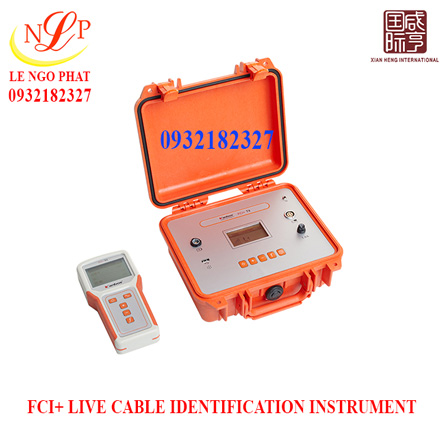

FCI+ LIVE CABLE IDENTIFICATION INSTRUMENT

Transmitter

Output Power: 3 gears, max output 10W

Output frequency: 982Hz、9.82kHz

Output voltage: 0—55V Self-adjusting

Short circuit current: 686mA

Output mode: Coupling, direct connection

Screen: 3.5” LCD screen

Receiver

Receive frequency: 982Hz、9820Hz

Induction method: Full magnetic domain induction

Current range:

0.1—1000mA(1280Hz、640Hz)
0.1—1000A(50Hz)

Screen: 5.0” Color light-sensitive LCD

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: FCI+

Model: FCI+

Features:

On-site application:

Technical Data:

Transmitter
Output Power	3 gears, max output 10W
Output frequency	982Hz、9.82kHz
Output voltage	0—55V Self-adjusting
Short circuit current	686mA
Output mode	Coupling, direct connection
Screen	3.5” LCD screen
Display	Output gear, mode, power, frequency, voltage, current
Output mode	Direct connection method and clamp method
Power supply	Built-in lithium battery
Working time	4h—6h(Depends on the output method)
Material	ABS Engineering Materials
Weight	1.5kg
Receiver
Receive frequency	982Hz、9820Hz
Induction method	Full magnetic domain induction
Current range	0.1—1000mA(1280Hz、640Hz) 0.1—1000A(50Hz)
Screen	5.0” Color light-sensitive LCD
Display	Signal strength, phase, power, target cable, etc.
Identification method	Frequency, phase and signal strength locks
Phase display	Digital degree display
Induction coil	High sensitivity coupling waterproof flexible pliers
Gain	Fully automatic adaptive gain
Coil inner diameter	195mm
Power supply	Lithium battery
Working time	9h
Material	ABS Engineering Materials
Weight	0.8kg
