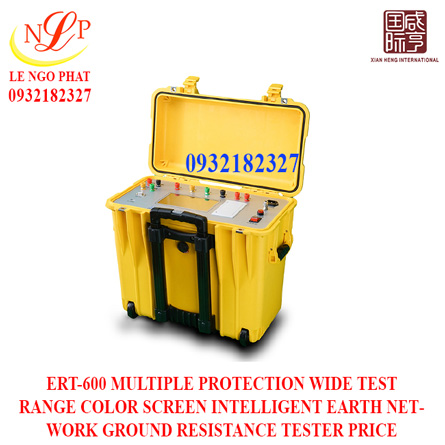

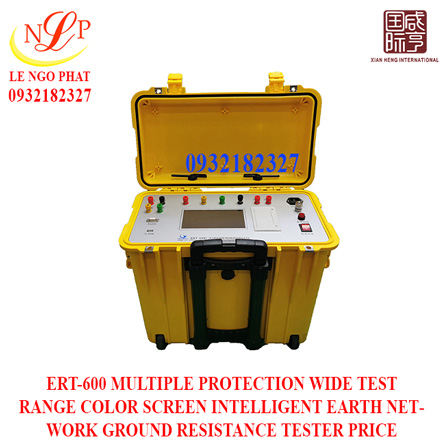

ERT-600 MULTIPLE PROTECTION WIDE TEST RANGE COLOR SCREEN INTELLIGENT EARTH NETWORK GROUND RESISTANCE TESTER PRICE

ERT-600 MULTIPLE PROTECTION WIDE TEST RANGE COLOR SCREEN INTELLIGENT EARTH NETWORK GROUND RESISTANCE TESTER PRICE

Model: ERT-600

Measure Range: 0-5000Ω

Resolution: 0.001mΩ

Accuracy: ±（0.02+0.005Ω）

Anti-interference

Anti-power frequency: 50Hz
Anti-voltage interference: 10V

Test Current Frequency

Single frequency: 40-70Hz set arbitrarily , resolution 0.1Hz

Dual frequency:
50±0.1Hz to 50±10.0Hz set arbitrarily
60±0.1Hz to 60±10.0Hz set arbitrarily

Output Current: 5A or external power supply 30A

Output Voltage: 400V or external power supply 1000V

Measuring Wire Requirement

Current wire Copper core ≥1.5mm2
Voltage wire Copper core ≥1.0mm2

Power Supply: AC220V±10％, 50Hz

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: ERT-600

Model: ERT-600

Description:

ERT-600 color screen intelligent earth grid grounding resistance tester is the latest new generation of intelligent earth grid test products launched in 2020. It adopts the integrated design of the American imported trolley case, convenient on-site movement, intelligent touch LCD large color screen, and automatic digital display , The operation is simpler. The instrument adopts frequency conversion anti-interference technology and does not require high current measurement. It can measure accurate data of 50Hz in a strong interference environment of substations. It can measure ground impedance and ground resistance at the same time. Accuracy is higher. Measurement results are directly displayed and can be more realistically reflected actual characteristics of ground network.

Features:
1. Appearance design: exquisite, light and portable;

2. Lightweight: weight of the whole machine is only 22kg;

3. Portable: adopt integrated design of American PELICAN trolley case;

4. Interface: smart touch large color screen.

Five innovative technologies:

1. Wide test range, extreme low error, 0.005Ω

2. Multiple protection, ensure equipment and people safe

3. Arbitrary set test frequency

4. Powerful function, many test contents: Grounding resistance, soil resistivity, ground connection;

5. New generation of frequency conversion anti-interference technology, ensure test accuracy

Technical Parameter:

Appearance Design	PELICAN integrated trolley case, light, portable IP67
Humanized Interface	Intelligent touch large color screen, simple operation, super large graphic operation interface, clear test process
Measure Range	0-5000Ω
Resolution	0.001mΩ
Accuracy	±（0.02+0.005Ω）
Anti-interference	Anti-power frequency: 50Hz Anti-voltage interference: 10V
Test Current Frequency	Single frequency: 40-70Hz set arbitrarily , resolution 0.1Hz
Test Current Frequency	Dual frequency: 50±0.1Hz to 50±10.0Hz set arbitrarily 60±0.1Hz to 60±10.0Hz set arbitrarily
Output Current	5A or external power supply 30A
Output Voltage	400V or external power supply 1000V
Measuring Wire Requirement	Current wire Copper core ≥1.5mm2 Voltage wire Copper core ≥1.0mm2
Power Supply	AC220V±10％, 50Hz
Dimension	500305457mm
Weight	20kg
