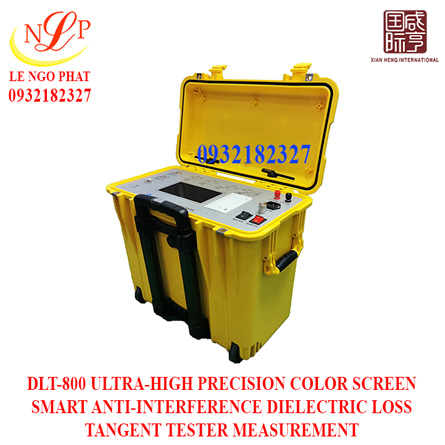

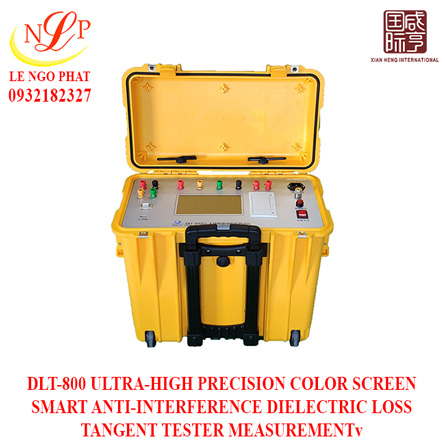

DLT-800 ULTRA-HIGH PRECISION COLOR SCREEN SMART ANTI-INTERFERENCE DIELECTRIC LOSS TANGENT TESTER MEASUREMENT

DLT-800 ULTRA-HIGH PRECISION COLOR SCREEN SMART ANTI-INTERFERENCE DIELECTRIC LOSS TANGENT TESTER MEASUREMENT

Model: DLT-800

Protection Setting :Low voltage/current, high voltage/current
4 protection

Capacitance range when using internal high voltage: 3pF-1μF, Max 0.001pF, 4 effective digits

Capacitance range when using external high voltage: 3pF-30μF, Max 0.001pF, 4 effective digits

Test Current Range: 5μA-5A

Internal High Voltage Output: 0.5-10kV

Test Frequency: 40-70Hz Single frequency can be set arbitrarily

CVT Self-excited Low Voltage Output: Output voltage 3-50V, Output current 3-30A

Measure Time: About 40s, related to the measurement method

Additional Feature: Optional standard oil cup can also realize oil loss measurement

Power Supply: 180V-270VAC, 50Hz±1%

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: DLT-800

Model: DLT-800

Description:

The DLT-800 color screen smart dielectric loss tester is the latest new generation of intelligent dielectric loss products. It adopts the integrated design of the American PELICAN trolley case, which is convenient for on-site move, intelligent touch LCD large color screen, automatic digital display, and simpler operation . It breaks through the traditional bridge measurement method, adopts variable frequency power supply technology, and uses modern electronic technology for automatic frequency conversion, analog/digital conversion and data calculation. It has strong anti-interference ability, fast test speed and high precision.

Features:
1. Appearance design: exquisite, light and portable;

2. Lightweight: Weight of the whole machine is only 22kg;

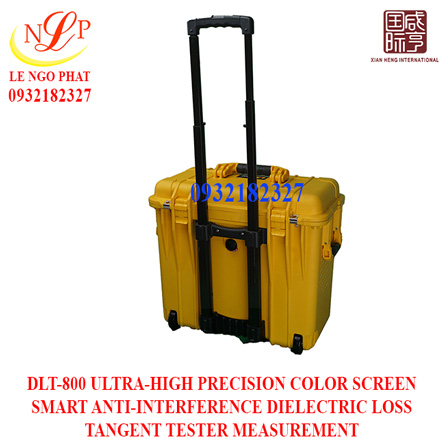

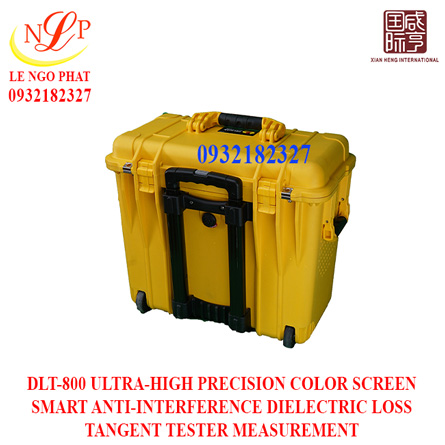

3. Portable: adopt the integrated design of American PELICAN trolley case;

4. Interface: smart touch large color screen.

Five innovative technologies:

1. CVT self-excitation method

2. AC withstand voltage test

3. Ultra-high precision

4. Reverse wiring low voltage screen function

5. Arbitrary set test frequency

Technical Parameter:

Appearance Design	PELICAN trolley case, light, portable IP67
Humanized Interface	Intelligent touch large color screen, simple operation, super large graphic operation interface, clear test process
Tgδ Range	Unlimited, resolution 0.001%, automatic identification of capacitance, inductance, and resistance
Accuracy	±（0.01+0.0004）
Protection Setting	Low voltage/current, high voltage/current 4 protection
Capacitance range when using internal high voltage	3pF-1μF, Max 0.001pF, 4 effective digits
Capacitance range when using external high voltage	3pF-30μF, Max 0.001pF, 4 effective digits
Test Current Range	5μA-5A
Internal High Voltage Output	0.5-10kV
Test Frequency	40-70Hz Single frequency can be set arbitrarily
CVT Self-excited Low Voltage Output	Output voltage 3-50V, Output current 3-30A
Measure Time	About 40s, related to the measurement method
Additional Feature	Optional standard oil cup can also realize oil loss measurement
Power Supply	180V-270VAC, 50Hz±1%
Dimension	500305457mm
Weight	22kg
