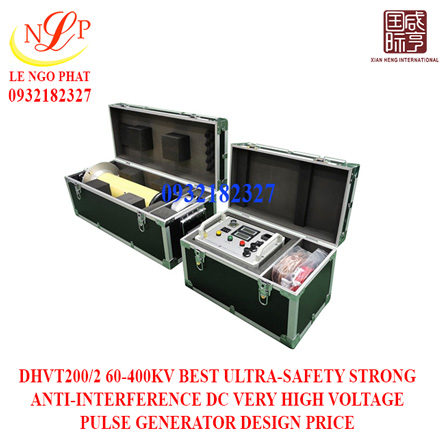

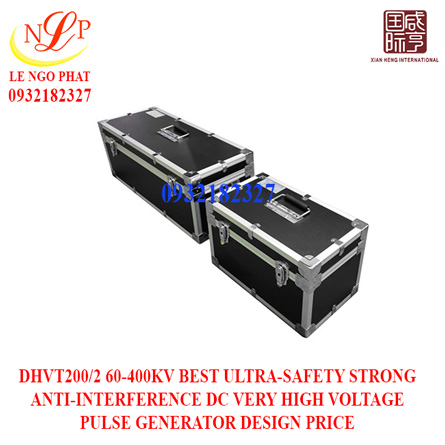

DHVT200/2 60-400KV BEST ULTRA-SAFETY STRONG ANTI-INTERFERENCE DC VERY HIGH VOLTAGE PULSE GENERATOR DESIGN PRICE

DHVT200/2 60-400KV BEST ULTRA-SAFETY STRONG ANTI-INTERFERENCE DC VERY HIGH VOLTAGE PULSE GENERATOR DESIGN PRICE

Model: DHVT200/2

Output voltage (kV): 200

Output current (mA): 2

Recharging current (mA): 3

Output power (W): 400

Control box weight(kg): 4.5

Doubler cylinder height(mm): φ110x770

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: DHVT200/2

Model: DHVT200/2

Description:

DHVT Series DC high voltage generator, suitable for electric power companies and enterprise power department to conduct DC withstand voltage test and DC leakage current test on zinc oxide arresters, power cables, generators, transformers, circuit breakers, etc. which is a necessary test instrument for high voltage tests.

Five innovative technologies:

1. Super high voltage stability, and voltage closed loop large feedback is adopted

2. Ultra-safety, with reliable fast protection circuit, no damage when high voltage is continuously discharged to ground

3. Ultra-lightweight, adopt intermediate frequency voltage double 35-50kHz inverter frequency and PWM pulse width modulation, with small ripple factor

4. Good electrical performance, using latest PWM pulse width modulation technology and high-power IGBT devices

5. Strong anti-interference performance, stable and reliable, fully shielded chassis and main components

Technical Parameter:

Ripple Coefficient	≤0.5 ％
Voltage Adjustment Accuracy	≤0.1％
Voltage Stability	≤1％
Voltage And Current Measurement	4.1/2 Digital display
Voltage Measurement Accuracy	1％±1 word
Current Measurement Accuracy	0.5％±1 word
Overvoltage Protection	Dialing setting, error±1％
Working Type	Intermittent use, rated load for 30 minutes
Working Temperature	–10-45℃
Relative Humidity	＜90％
Altitude	＜1000m

Routine selection:

Model	Output voltage (kV)	Output current (mA)	Recharging current (mA)	Output power (W)	Control box weight(kg)	Doubler cylinder height(mm)
DHVT60/2	60	2	3	120	3	φ80x470
DHVT60/5	60	5	7.5	300	3	φ80x470
DHVT120/2	120	2	3	240	4	φ80x640
DHVT120/3	120	3	4.5	360	4	φ80x640
DHVT120/5	120	5	7.5	600	4	φ80x640
DHVT200/2	200	2	3	400	4.5	φ110x770
DHVT200/3	200	3	4.5	600	5	φ110x770
DHVT200/5	200	5	7.5	1000	6	φ110x770
DHVT200/400/3	200/400	5	7.5	2000	8.5	φ110x1850

★The specifications shown above are only common specifications, output voltage and output current can be customized according to requirements
