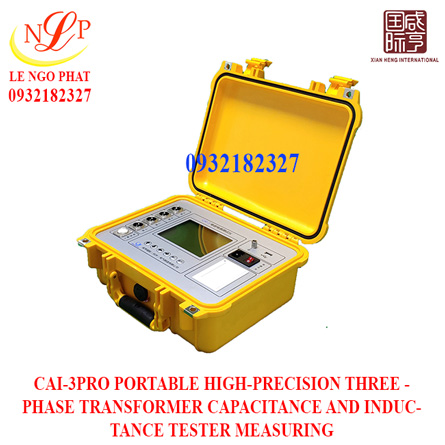

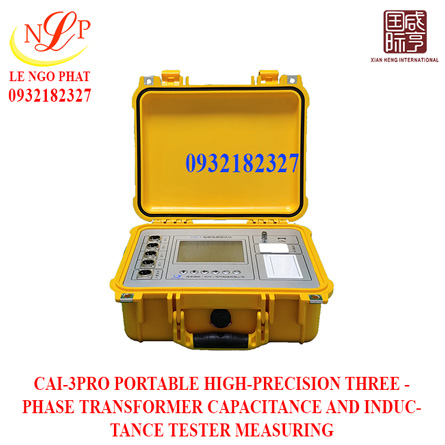

CAI-3PRO PORTABLE HIGH-PRECISION THREE - PHASE TRANSFORMER CAPACITANCE AND INDUCTANCE TESTER MEASURING
Model: CAI-3PRO
Capacitance Measurement Range: 0.1μF-3500μF
Capacitance Measurement Accuracy: ±（0.01 +0.005μF）
Minimum Resolution:0.001μF
Inductance Measurement Range: 100μH-20H 、±0.02
Resistance Measurement Range: 10mΩ-20kΩ、±0.02
Current Measurement Range: AC 10mA-50A, 30-150Hz
Current Measurement Accuracy: ±0.01
Voltage Measurement Range: AC 0V-30V
Store and Print: Built-in thermal printing function, fast and silent, data can be stored in real time
Power Supply: Built-in Lithium battery
Dimension: 340*295*152mm
Weight: 4.5kg
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
Description:
CAI-3Pro adopts high-precision, large-opening clamp current transformer for current measurement. It uses pilot frequency anti-interference power output, high test accuracy and stable data. It has strong ability to carry out the test in a strong magnetic field environment without affecting accuracy. Meanwhile, it has the function of three-phase capacitor test, which is simpler and faster for one-key measurement of three-phase capacitor group with different connection modes.
Features:
1. Appearance design: light, delicate, portable
2. Light: weight only 4.75KG

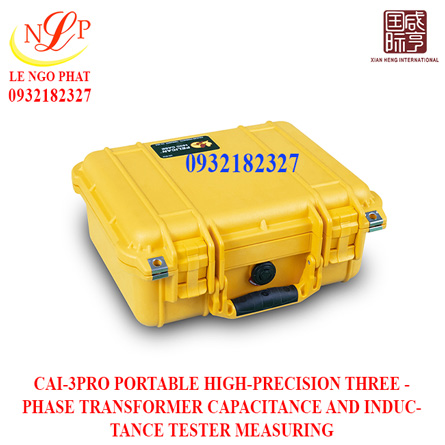

3. Portable: Adopt US PELICAN Protector Case, integrated design
4. Delicate: Imported material, metal wire drawing design, titanium alloy screw with super corrosion resistance
5. Interface: large LCD screen with high brightness, clearly visible under strong sunlight
Six innovative technologies:
1. Super safety, three-phase output short circuit at the same time won’t damage the instrument
2. With soft start, soft stop function, greatly reduce impact on test products
3. Pilot frequency source technology, higher anti-interference ability, higher test accuracy
4. The unique capacitance inductance tester containing power quality analysis
5. Three - phase test, analysis, greatly improve field test efficiency 6. Large capacity lithium battery, long-time work
Technical Parameter:
|
Appearance Design |
PELICAN Protector Case, light, portable IP67 |
|
Processing Design |
Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the quality |
|
Screen Display |
Large high-brightness color LCD screen, still clearly visible in strong sunlight |
|
Capacitance Measurement Range |
0.1μF-3500μF |
|
Capacitance Measurement Accuracy |
±（0.01 +0.005μF） |
|
Minimum Resolution |
0.001μF |
|
Inductance Measurement Range |
100μH-20H 、±0.02 |
|
Resistance Measurement Range |
10mΩ-20kΩ、±0.02 |
|
Current Measurement Range |
AC 10mA-50A, 30-150Hz |
|
Current Measurement Accuracy |
±0.01 |
|
Voltage Measurement Range |
AC 0V-30V |
|
Store and Print |
Built-in thermal printing function, fast and silent, data can be stored in real time |
|
Power Supply |
Built-in Lithium battery |
|
Dimension |
340*295*152mm |
|
Weight |
4.5kg |
TỪ KHÓA TÌM KIẾM: MÁY ĐO BIẾN ÁP ĐA NĂNG HTRT-10; MÁY ĐO DIỆN ÁP HLP-100, MÁY ĐO ĐIỆN ÁP HCCT-10; MÁY ĐO ĐIỆN TRỞ HZOA-20; MÁY ĐO BIẾN ÁP WDT-200, MÁY BIẾN ÁP TRT-20, MÁY ĐO TỶ LỆ BIẾN ÁP SRTR-100Pro, DÒ ĐIỆN ÁP CHỐNG LÃO HÓA
Description:
CAI-3Pro adopts high-precision, large-opening clamp current transformer for current measurement. It uses pilot frequency anti-interference power output, high test accuracy and stable data. It has strong ability to carry out the test in a strong magnetic field environment without affecting accuracy. Meanwhile, it has the function of three-phase capacitor test, which is simpler and faster for one-key measurement of three-phase capacitor group with different connection modes.
Features:
1. Appearance design: light, delicate, portable
2. Light: weight only 4.75KG
3. Portable: Adopt US PELICAN Protector Case, integrated design
4. Delicate: Imported material, metal wire drawing design, titanium alloy screw with super corrosion resistance
5. Interface: large LCD screen with high brightness, clearly visible under strong sunlight
Six innovative technologies:
1. Super safety, three-phase output short circuit at the same time won’t damage the instrument
2. With soft start, soft stop function, greatly reduce impact on test products
3. Pilot frequency source technology, higher anti-interference ability, higher test accuracy
4. The unique capacitance inductance tester containing power quality analysis
5. Three - phase test, analysis, greatly improve field test efficiency 6. Large capacity lithium battery, long-time work
Technical Parameter:
|
Appearance Design |
PELICAN Protector Case, light, portable IP67 |
|
Processing Design |
Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the quality |
|
Screen Display |
Large high-brightness color LCD screen, still clearly visible in strong sunlight |
|
Capacitance Measurement Range |
0.1μF-3500μF |
|
Capacitance Measurement Accuracy |
±（0.01 +0.005μF） |
|
Minimum Resolution |
0.001μF |
|
Inductance Measurement Range |
100μH-20H 、±0.02 |
|
Resistance Measurement Range |
10mΩ-20kΩ、±0.02 |
|
Current Measurement Range |
AC 10mA-50A, 30-150Hz |
|
Current Measurement Accuracy |
±0.01 |
|
Voltage Measurement Range |
AC 0V-30V |
|
Store and Print |
Built-in thermal printing function, fast and silent, data can be stored in real time |
|
Power Supply |
Built-in Lithium battery |
|
Dimension |
340*295*152mm |
|
Weight |
4.5kg |
Description:
CAI-3Pro adopts high-precision, large-opening clamp current transformer for current measurement. It uses pilot frequency anti-interference power output, high test accuracy and stable data. It has strong ability to carry out the test in a strong magnetic field environment without affecting accuracy. Meanwhile, it has the function of three-phase capacitor test, which is simpler and faster for one-key measurement of three-phase capacitor group with different connection modes.
Features:
1. Appearance design: light, delicate, portable
2. Light: weight only 4.75KG
3. Portable: Adopt US PELICAN Protector Case, integrated design
4. Delicate: Imported material, metal wire drawing design, titanium alloy screw with super corrosion resistance
5. Interface: large LCD screen with high brightness, clearly visible under strong sunlight
Six innovative technologies:
1. Super safety, three-phase output short circuit at the same time won’t damage the instrument
2. With soft start, soft stop function, greatly reduce impact on test products
3. Pilot frequency source technology, higher anti-interference ability, higher test accuracy
4. The unique capacitance inductance tester containing power quality analysis
5. Three - phase test, analysis, greatly improve field test efficiency 6. Large capacity lithium battery, long-time work
Technical Parameter:
|
Appearance Design |
PELICAN Protector Case, light, portable IP67 |
|
Processing Design |
Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the quality |
|
Screen Display |
Large high-brightness color LCD screen, still clearly visible in strong sunlight |
|
Capacitance Measurement Range |
0.1μF-3500μF |
|
Capacitance Measurement Accuracy |
±（0.01 +0.005μF） |
|
Minimum Resolution |
0.001μF |
|
Inductance Measurement Range |
100μH-20H 、±0.02 |
|
Resistance Measurement Range |
10mΩ-20kΩ、±0.02 |
|
Current Measurement Range |
AC 10mA-50A, 30-150Hz |
|
Current Measurement Accuracy |
±0.01 |
|
Voltage Measurement Range |
AC 0V-30V |
|
Store and Print |
Built-in thermal printing function, fast and silent, data can be stored in real time |
|
Power Supply |
Built-in Lithium battery |
|
Dimension |
340*295*152mm |
|
Weight |
4.5kg |
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
