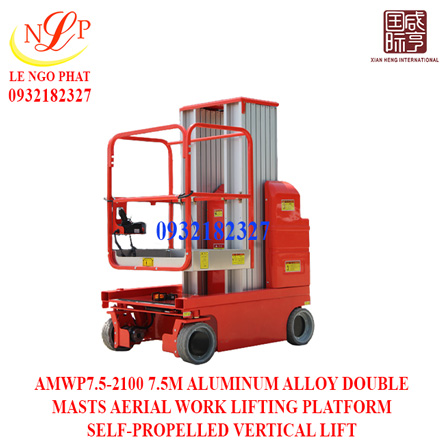

AMWP7.5-2100 7.5M ALUMINUM ALLOY DOUBLE MASTS AERIAL WORK LIFTING PLATFORM SELF-PROPELLED VERTICAL LIFT

Model: AMWP7.5-2100

Loading Capacity: 200kg

Occupants: 1

Max. Working Height: 9.50m

Max. Platform Height: 7.50m

Weight: 1270kg

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: AMWP7.5-2100

Model: AMWP7.5-2100

Self-propelled Vertical Lift
Model	AMWP7.5-2100	AMWP9-2100
Max. Working Height	9.50m	11.00m
Max. Platform Height	7.50m	9.00m
Loading Capacity	200kg	150kg
Occupants	1	1
Overall Length	1.55m	1.55m
Overall Width	1.01m	1.01m
Overall Height	1.99m	1.99m
Platform Dimension	1.00m×0.70m	1.00m×0.70m
Wheel Base	1.23m	1.23m
Turning Radius	0	0
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h
Up/Down Speed	48/40sec	58/49sec
Gradeability	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm
Drive Motors	2×12VDC/0.4kW	2×12VDC/0.4kW
Lifting Motor	24VDC/2.2kW	24VDC/2.2kW
Battery	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A
Weight	1270kg	1345kg

TỪ KHÓA TÌM KIẾM: MÁY NÂNG 4M, MÁY NÂNG 3M, MÁY NÂNG 3.6M, MÁY NÂNG 4.8M, MÁY NÂNG 6.5, MÁY NÂNG 7.7M, MÁY NÂNG 9M, MÁY NÂNG 12M, MÁY NÂNG 14M, MÁY NÂNG 16M.

Self-propelled Vertical Lift
Model	AMWP7.5-2100	AMWP9-2100
Max. Working Height	9.50m	11.00m
Max. Platform Height	7.50m	9.00m
Loading Capacity	200kg	150kg
Occupants	1	1
Overall Length	1.55m	1.55m
Overall Width	1.01m	1.01m
Overall Height	1.99m	1.99m
Platform Dimension	1.00m×0.70m	1.00m×0.70m
Wheel Base	1.23m	1.23m
Turning Radius	0	0
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h
Up/Down Speed	48/40sec	58/49sec
Gradeability	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm
Drive Motors	2×12VDC/0.4kW	2×12VDC/0.4kW
Lifting Motor	24VDC/2.2kW	24VDC/2.2kW
Battery	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A
Weight	1270kg	1345kg

Self-propelled Vertical Lift
Model	AMWP7.5-2100	AMWP9-2100
Max. Working Height	9.50m	11.00m
Max. Platform Height	7.50m	9.00m
Loading Capacity	200kg	150kg
Occupants	1	1
Overall Length	1.55m	1.55m
Overall Width	1.01m	1.01m
Overall Height	1.99m	1.99m
Platform Dimension	1.00m×0.70m	1.00m×0.70m
Wheel Base	1.23m	1.23m
Turning Radius	0	0
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h
Up/Down Speed	48/40sec	58/49sec
Gradeability	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm
Drive Motors	2×12VDC/0.4kW	2×12VDC/0.4kW
Lifting Motor	24VDC/2.2kW	24VDC/2.2kW
Battery	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A
Weight	1270kg	1345kg
