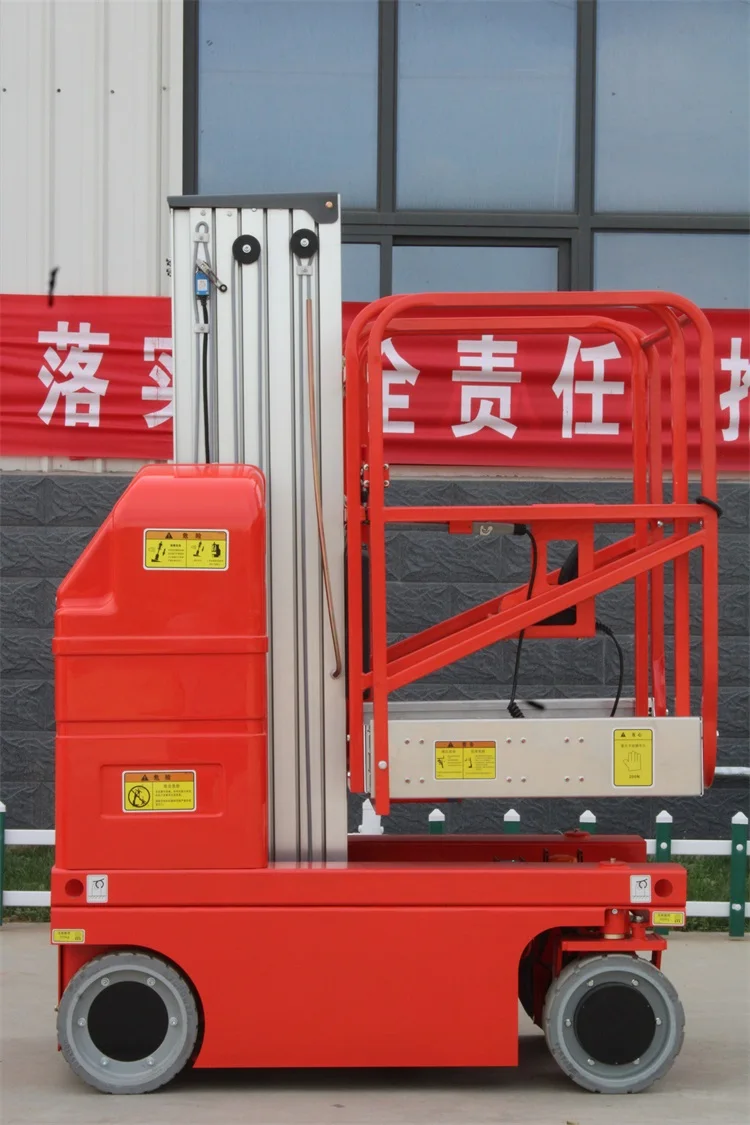

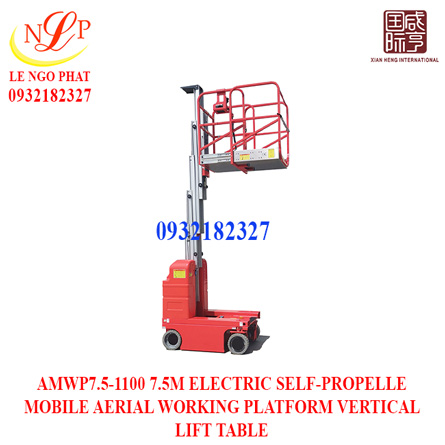

AMWP7.5-1100 7.5M ELECTRIC SELF-PROPELLE MOBILE AERIAL WORKING PLATFORM VERTICAL LIFT TABLE

AMWP7.5-1100

Loading Capacity: 125kg

Occupants: 1

Max. Working Height:9.50m

Max. Platform Height: 7.50m

Weight: 125kg

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: AMWP7.5-1100

Model: AMWP7.5-1100

Self-propelled Vertical Lift
Model	AMWP7.5-1100	AMWP6-1100
Max. Working Height	9.50m	8.00m
Max. Platform Height	7.50m	6.00m
Loading Capacity	125kg	150kg
Occupants	1	1
Overall Length	1.40m	1.40m
Overall Width	0.82m	0.82m
Overall Height	1.98m	1.98m
Platform Dimension	0.78m×0.70m	0.78m×0.70m
Wheel Base	1.14m	1.14m
Turning Radius	0	0
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h
Up/Down Speed	48/40sec	43/35sec
Gradeability	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm
Drive Motors	2×12VDC/0.4kW	2×12VDC/0.4kW
Lifting Motor	24VDC/2.2kW	24VDC/2.2kW
Battery	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A
Weight	1190kg	954kg

TỪ KHÓA TÌM KIẾM: XE NÂNG NGƯỜI LÀM VIỆC 4M, XE NÂNG NGƯỜI LÀM VIỆC 3M, XE NÂNG NGƯỜI LÀM VIỆC 3.6M, XE NÂNG NGƯỜI LÀM VIỆC 4.8M, XE NÂNG NGƯỜI LÀM VIỆC 6.5, XE NÂNG NGƯỜI LÀM VIỆC 7.7M, XE NÂNG NGƯỜI LÀM VIỆC 9M, MÁY NÂNG 12M, MÁY NÂNG 14M, XE NÂNG NGƯỜI LÀM VIỆC 16M.

Self-propelled Vertical Lift
Model	AMWP7.5-1100	AMWP6-1100
Max. Working Height	9.50m	8.00m
Max. Platform Height	7.50m	6.00m
Loading Capacity	125kg	150kg
Occupants	1	1
Overall Length	1.40m	1.40m
Overall Width	0.82m	0.82m
Overall Height	1.98m	1.98m
Platform Dimension	0.78m×0.70m	0.78m×0.70m
Wheel Base	1.14m	1.14m
Turning Radius	0	0
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h
Up/Down Speed	48/40sec	43/35sec
Gradeability	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm
Drive Motors	2×12VDC/0.4kW	2×12VDC/0.4kW
Lifting Motor	24VDC/2.2kW	24VDC/2.2kW
Battery	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A
Weight	1190kg	954kg

Self-propelled Vertical Lift
Model	AMWP7.5-1100	AMWP6-1100
Max. Working Height	9.50m	8.00m
Max. Platform Height	7.50m	6.00m
Loading Capacity	125kg	150kg
Occupants	1	1
Overall Length	1.40m	1.40m
Overall Width	0.82m	0.82m
Overall Height	1.98m	1.98m
Platform Dimension	0.78m×0.70m	0.78m×0.70m
Wheel Base	1.14m	1.14m
Turning Radius	0	0
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h
Up/Down Speed	48/40sec	43/35sec
Gradeability	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm
Drive Motors	2×12VDC/0.4kW	2×12VDC/0.4kW
Lifting Motor	24VDC/2.2kW	24VDC/2.2kW
Battery	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A
Weight	1190kg	954kg
