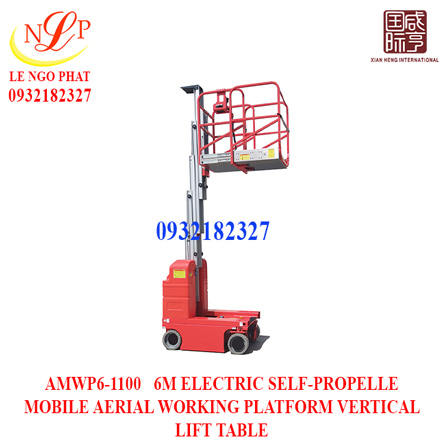

AMWP6-1100 6M ELECTRIC SELF-PROPELLE MOBILE AERIAL WORKING PLATFORM VERTICAL LIFT TABLE

Model: AMWP6-1100

Loading Capacity: 150kg

Occupants: 1

Max. Max. Working Height:8.00m

Max. Platform Height: 6.00m

Weight: 954kg

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: AMWP6-1100

Model: AMWP6-1100

Self-propelled Vertical Lift
Model	AMWP7.5-1100	AMWP6-1100
Max. Working Height	9.50m	8.00m
Max. Platform Height	7.50m	6.00m
Loading Capacity	125kg	150kg
Occupants	1	1
Overall Length	1.40m	1.40m
Overall Width	0.82m	0.82m
Overall Height	1.98m	1.98m
Platform Dimension	0.78m×0.70m	0.78m×0.70m
Wheel Base	1.14m	1.14m
Turning Radius	0	0
Travel Speed(Stowed)	4km/h	4km/h
Travel Speed(Raised)	1.1km/h	1.1km/h
Up/Down Speed	48/40sec	43/35sec
Gradeability	25%	25%
Drive Tyres	Φ305×100mm	Φ305×100mm
Drive Motors	2×12VDC/0.4kW	2×12VDC/0.4kW
Lifting Motor	24VDC/2.2kW	24VDC/2.2kW
Battery	2×12V/100Ah	2×12V/100Ah
Charger	24V/15A	24V/15A
Weight	1190kg	954kg
