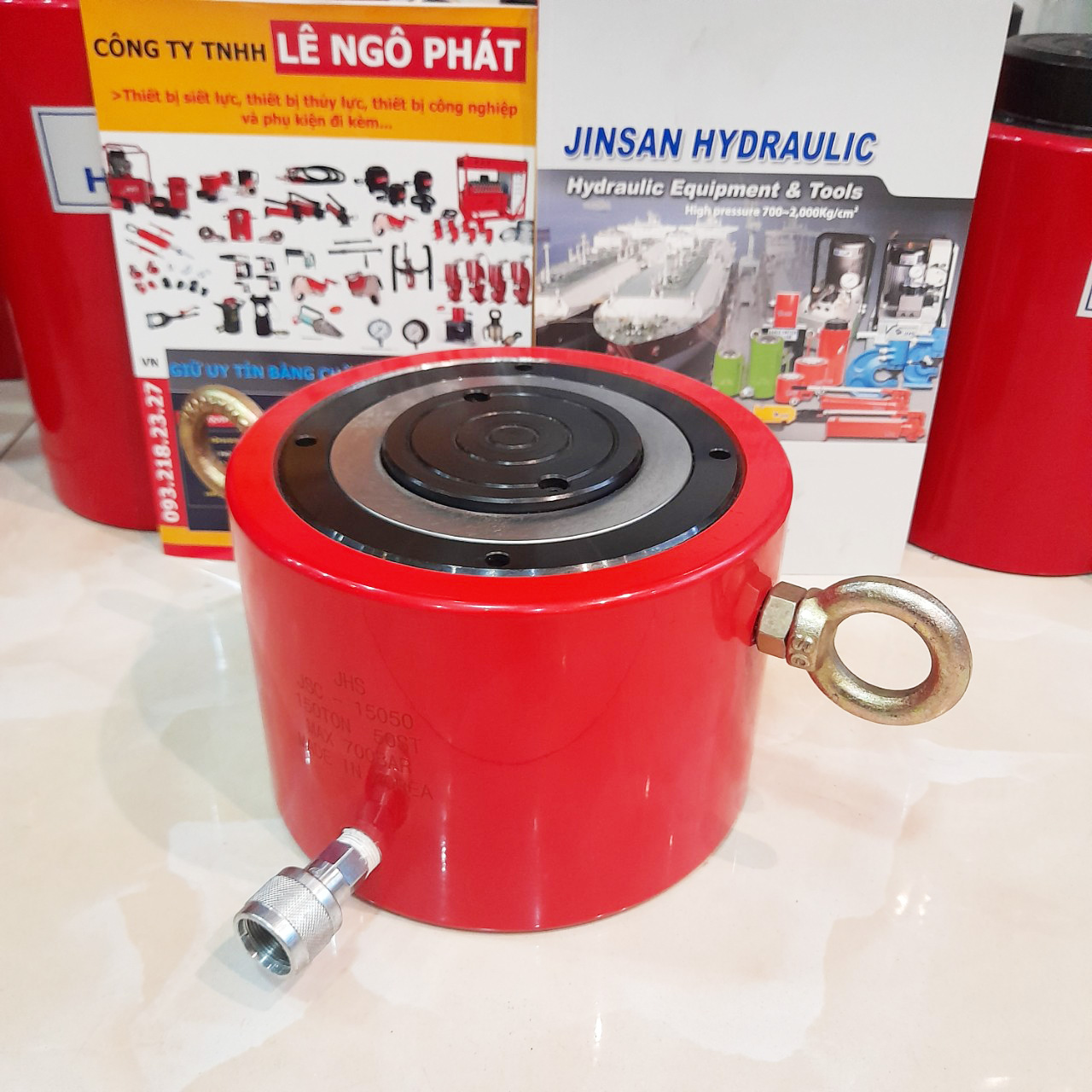

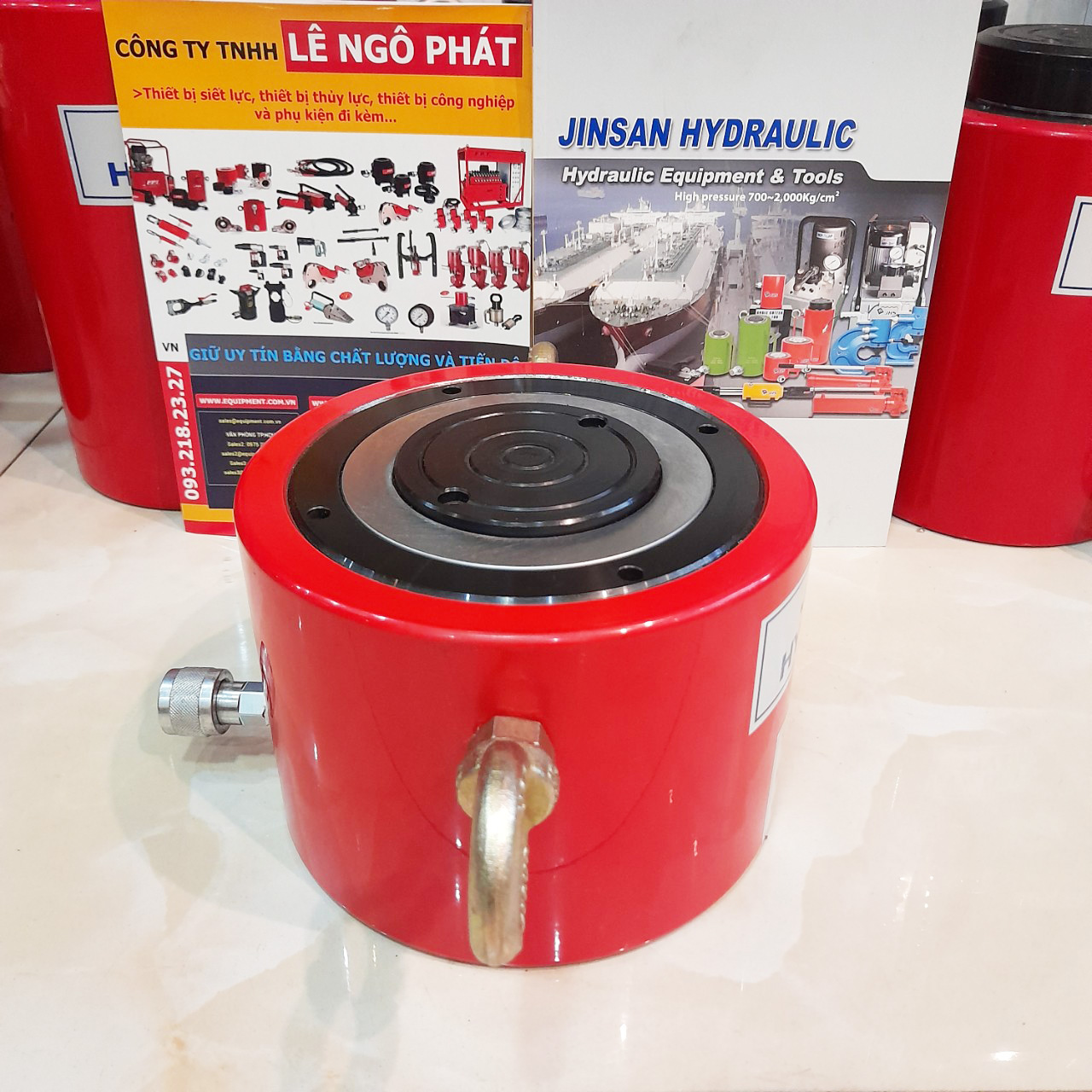

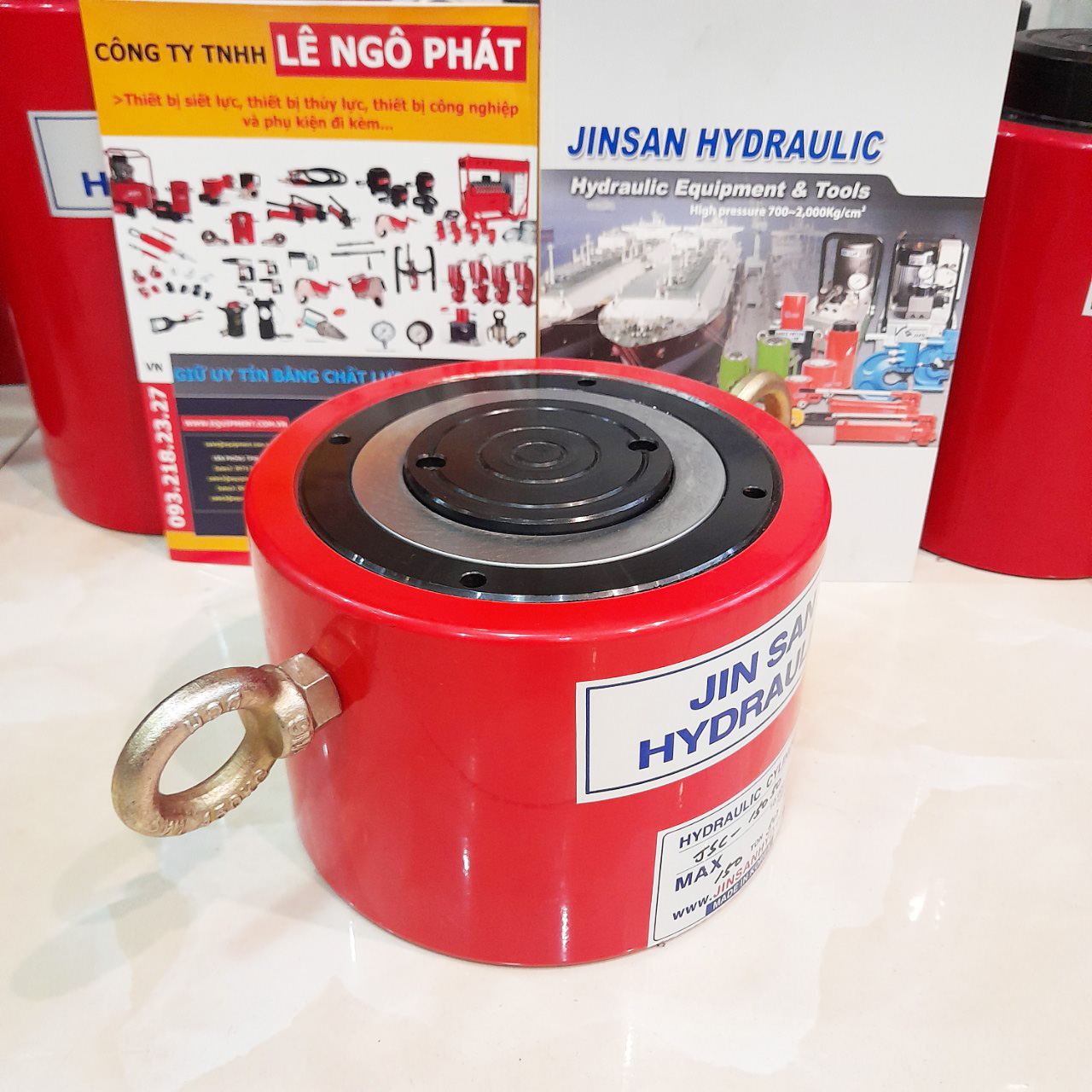

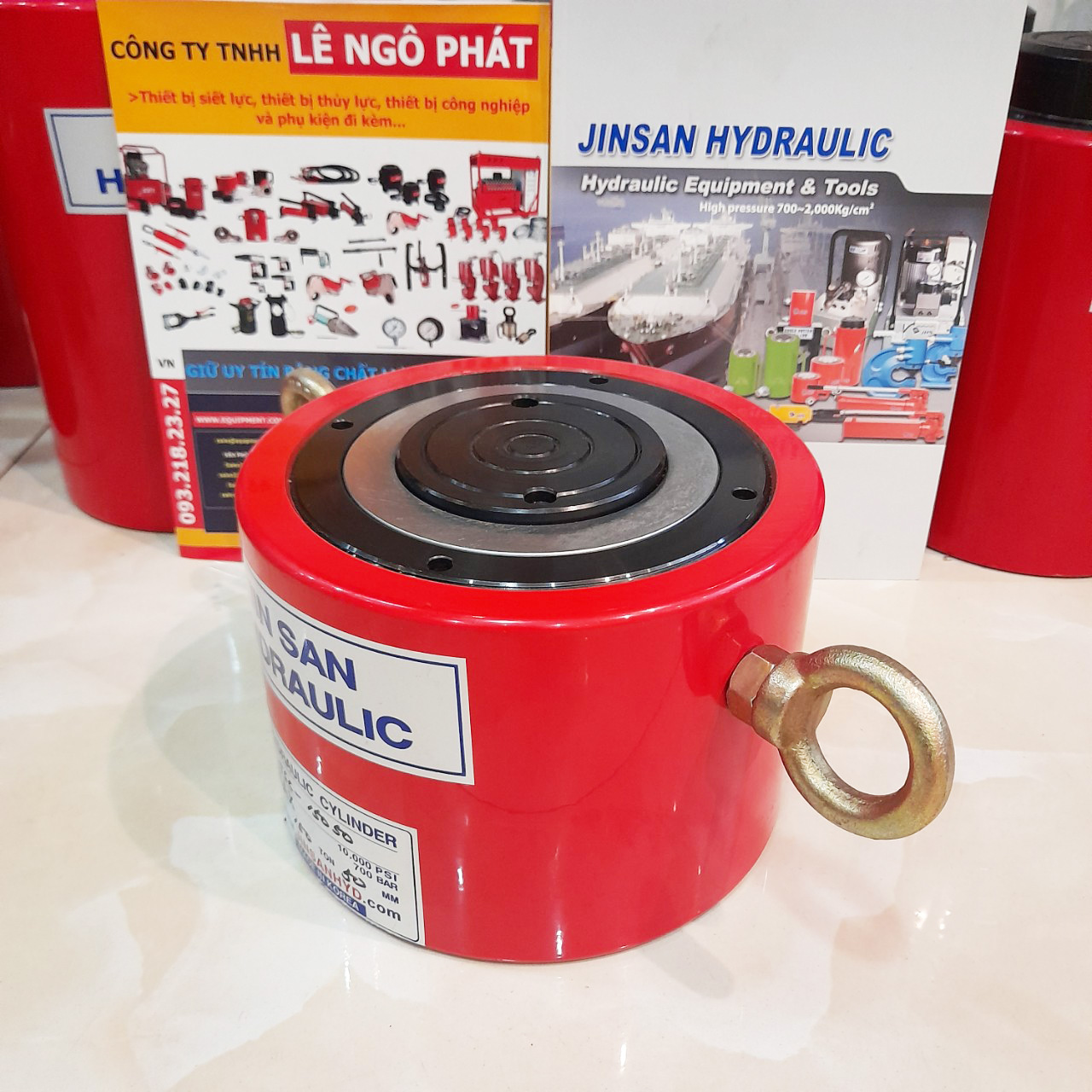

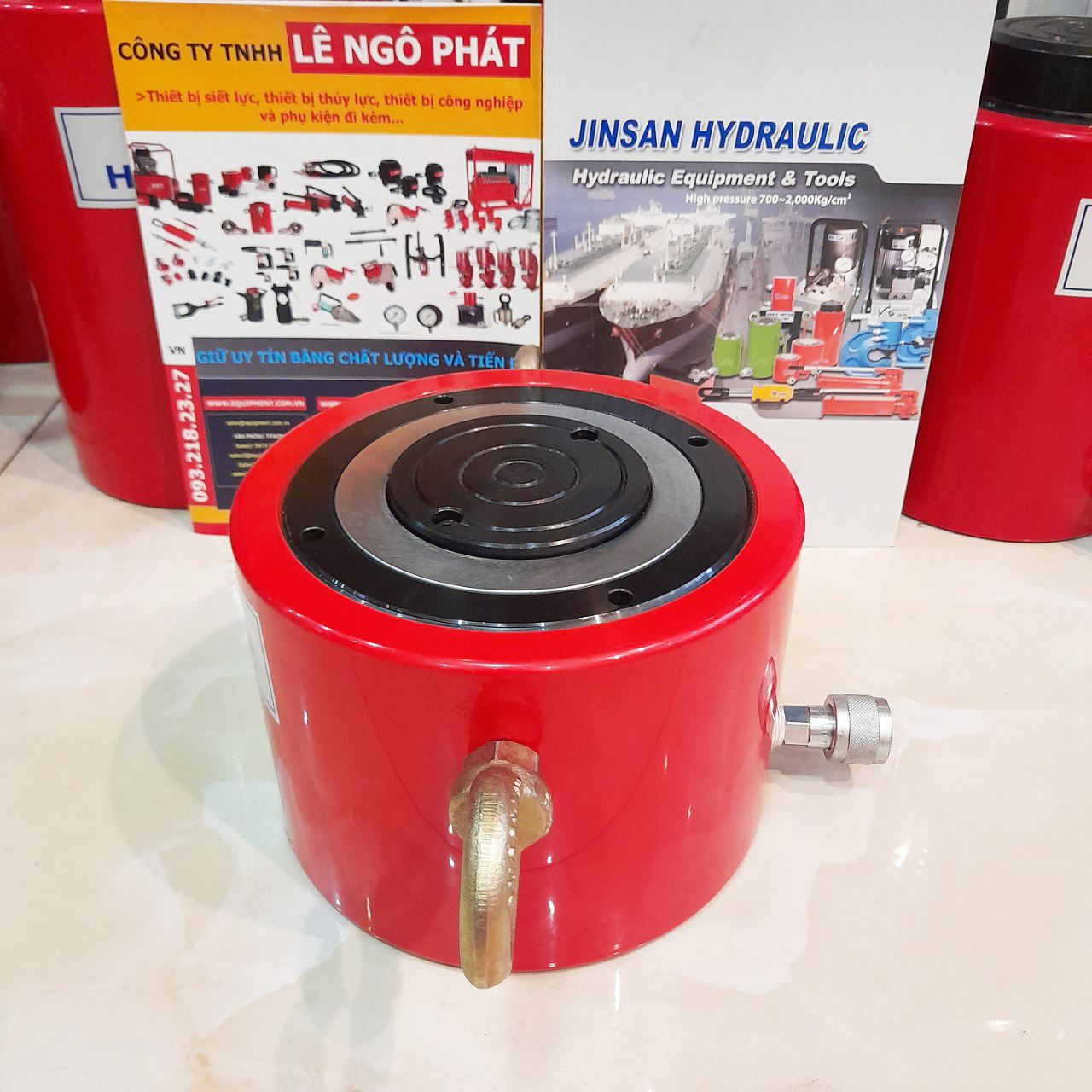

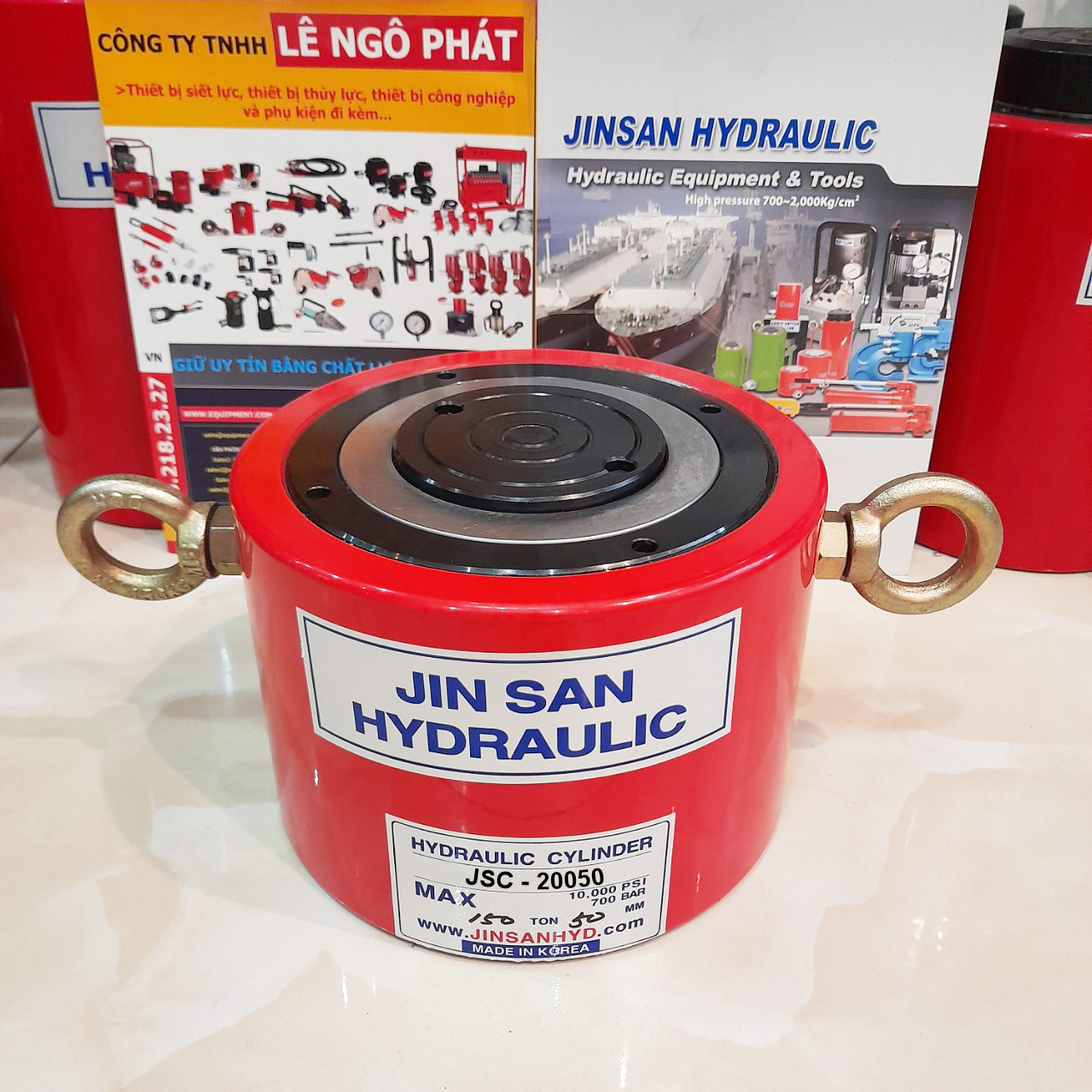

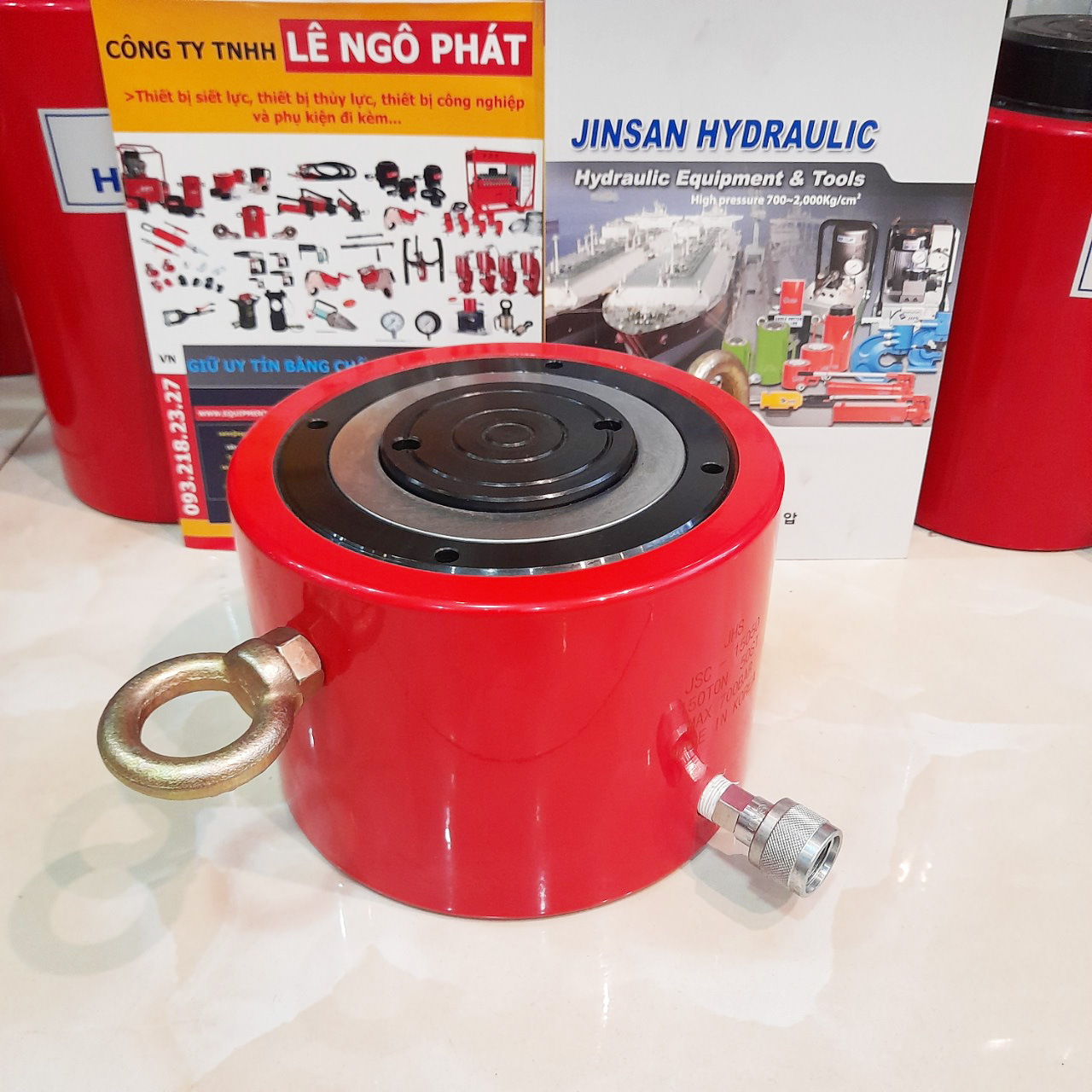

JSC-20050, Kích thủy lực lùn JHS 200 tấn hành trình 50 mm

JSC-20050, Kích thủy lực lùn JHS 200 tấn hành trình 50 mm

Model JSC-20050

Xuất xứ: JHS - Made in Korea

Kích thủy lực lùn (kích lùn)

Tải trọng: 200 tấn

Hành trình nâng: 50 mm

Chiều cao ban đầu: 193 mm

Đường kính ngoài: 245 mm

Đường kính xi lanh: 195 mm

Trọng lượng: 71 kg

Thời gian giao hàng: Hàng có sẵn

Bảo hành: 12 tháng

Chứng nhận xuất xứ hàng hóa (CO) do phòng thương mại và công nghiệp Korea cấp

Chứng nhận chất lượng sản phẩm (CQ) do nhà sản xuất cấp

Giá: 20050

Mã sản phẩm: KÍCH THỦY LỰC 200 TẤN

Model: JSC-20050

HYDRAULIC SHORTY CYLINDERS:

CAPACITY: 10~200ton
STROKE: 20~50mm
MAXIMUM PRESSURE: 700kgf/cm2
HYDRAULIC COUPLER: 3/8”PT

The short ram returns by the spring and is suitable for narrow space.
- Compact, flat design for use where there where other cylinders will not fit.
- How to understand Model No.

Shorter than general single acting cylinder
Recommended for work in confined spaces
Spring Return Type

Specification:

MODEL	Cylinder Capacity (tons)	Stroke (mm)	Cylinder Effective Area (cm2)	Oil Capacity (cc)	Retracted height	Extended height	Cylinder Out Dia	Cylinder Bore Dia	Base to Inlet port	Weight (kgs)
MODEL	Cylinder Capacity (tons)	Stroke (mm)	Cylinder Effective Area (cm2)	Oil Capacity (cc)	A	B	C	D	E	Weight (kgs)
JSC-1025	10	25	15.2	38	80	105	68	44	18	2
JSC-1044	10	44	15.2	67	98	142	68	44	18	2.5
JSC-1050	10	50	15.2	76	104	154	68	44	18	2.7
JSC-2025	20	25	28.2	71	80	105	87	60	15	3
JSC-2044	20	44	28.2	124	99	143	87	60	15	4
JSC-2050	20	50	28.2	124	105	155	87	60	15	4.9
JSC-3020	30	20	44.2	88	75	95	105	75	15	4.5
JSC-3025	30	25	44.2	110	80	105	105	75	15	5
JSC-3044	30	44	44.2	194	99	143	105	75	18	6
JSC-3050	30	50	44.2	220	105	155	105	75	18	7
JSC-5050	50	50	70.9	354	109	159	128	95	23	15
JSC-10050	100	50	143	715	137	187	178	135	25	24
JSC-15050	150	50	213	1068	155	205	218	166	30	43
JSC-20050	200	50	268.6	1343	193	243	245	195	50	71

Từ khóa: JSC-20050, Kích thủy lực lùn JHS 200 tấn hành trình 50 mm, kích thủy lực, kích thủy lực 200 tấn, kích thủy lực JHS, kích thủy lực JHS 200 tấn
