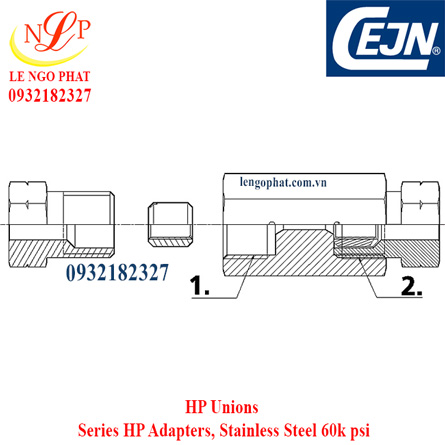

HP Unions Series HP Adapters Stainless Steel 60k psi

HP (Over 20k to 60k PSI)Adapters

Industry standard HP adapters. Compact designs, made from acid resistant, NACE certified, AISI 316L / EN1.4404 Stainless Steel for maximum life.

Giá: 0932182327

Mã sản phẩm: HP Unions

Model: 199502004, 199502005, 199502006, 199502007

HP Adapters, Stainless Steel (Over 20k to 60k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2
199502004	HP Unions	conn.1: 34 conn.2: 34 Nm	1/4"	1/4"
199502005	HP Unions	conn.1: 68 conn.2: 68 Nm	3/8"	3/8"
199502006	HP Unions	conn.1: 150 conn.2: 150 Nm	9/16"	9/16"
199502007	HP Unions	conn.1: 150 conn.2: 68 Nm	9/16"	3/8"
