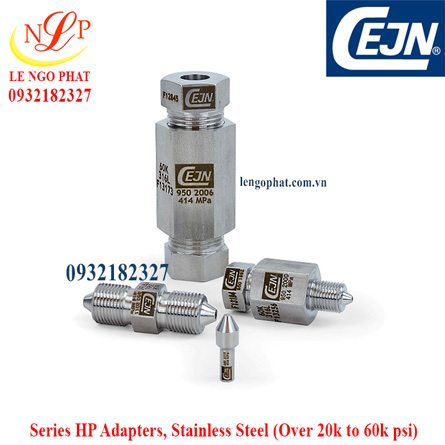

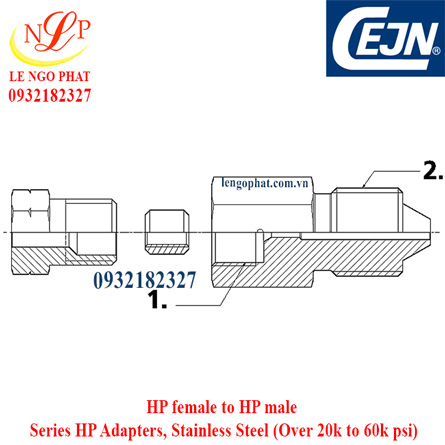

HP female to HP male - HP Adapters Stainless Steel 60k psi

HP (Over 20k to 60k PSI)Adapters

Industry standard HP adapters. Compact designs, made from acid resistant, NACE certified, AISI 316L / EN1.4404 Stainless Steel for maximum life.

Giá: 0932182327

Mã sản phẩm: HP female to HP male

Model: 199501998, 199501999, 199502000, 199502001, 199502002, 199502003

HP Adapters, Stainless Steel (Over 20k to 60k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2
199501998	HP female to HP male	conn.1: 34 conn.2: 68 Nm	1/4"	3/8"
199501999	HP female to HP male	conn.1: 34 conn.2: 150 Nm	1/4"	9/16"
199502000	HP female to HP male	conn.1: 68 conn.2: 34 Nm	3/8"	1/4"
199502001	HP female to HP male	conn.1: 68 conn.2: 150 Nm	3/8"	9/16"
199502002	HP female to HP male	conn.1: 150 conn.2: 34 Nm	9/16"	1/4"
199502003	HP female to HP male	conn.1: 150 conn.2: 68 Nm	9/16"	3/8"

HP Adapters, Stainless Steel (Over 20k to 60k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2
199501998	HP female to HP male	conn.1: 34 conn.2: 68 Nm	1/4"	3/8"
199501999	HP female to HP male	conn.1: 34 conn.2: 150 Nm	1/4"	9/16"
199502000	HP female to HP male	conn.1: 68 conn.2: 34 Nm	3/8"	1/4"
199502001	HP female to HP male	conn.1: 68 conn.2: 150 Nm	3/8"	9/16"
199502002	HP female to HP male	conn.1: 150 conn.2: 34 Nm	9/16"	1/4"
199502003	HP female to HP male	conn.1: 150 conn.2: 68 Nm	9/16"	3/8"

HP Adapters, Stainless Steel (Over 20k to 60k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2
199501998	HP female to HP male	conn.1: 34 conn.2: 68 Nm	1/4"	3/8"
199501999	HP female to HP male	conn.1: 34 conn.2: 150 Nm	1/4"	9/16"
199502000	HP female to HP male	conn.1: 68 conn.2: 34 Nm	3/8"	1/4"
199502001	HP female to HP male	conn.1: 68 conn.2: 150 Nm	3/8"	9/16"
199502002	HP female to HP male	conn.1: 150 conn.2: 34 Nm	9/16"	1/4"
199502003	HP female to HP male	conn.1: 150 conn.2: 68 Nm	9/16"	3/8"
