CÔNG TY TNHH LÊ NGÔ PHÁT

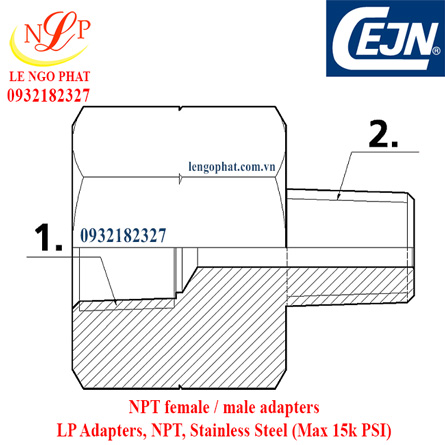

NPT female / male adapters 10K

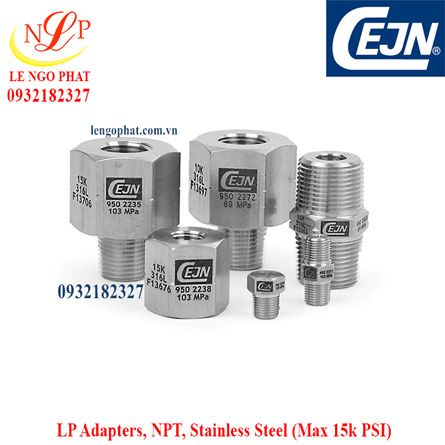

LP Adapters, NPT, Stainless Steel
LP (Max 15k PSI)Adapters
Industry standard adapters for 1/8" to 1" NPT. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.
| LP Adapters, NPT, Stainless Steel (Max 15k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199502270 | NPT female / male adapters 10K | 29 Nm | 1/4" NPT | 1/4" NPT | 69.0 MPa |
| 199502271 | NPT female / male adapters 10K | 34 Nm | 3/8" NPT | 3/8" NPT | 69.0 MPa |
| 199502272 | NPT female / male adapters 10K | 61 Nm | 1/2" NPT | 1/2" NPT | 69.0 MPa |
| 199502273 | NPT female / male adapters 10K | 102 Nm | 3/4" NPT | 3/4" NPT | 69.0 MPa |
| 199502274 | NPT female / male adapters 10K | 163 Nm | 1" NPT | 1" NPT | 69.0 MPa |
| LP Adapters, NPT, Stainless Steel (Max 15k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199502270 | NPT female / male adapters 10K | 29 Nm | 1/4" NPT | 1/4" NPT | 69.0 MPa |
| 199502271 | NPT female / male adapters 10K | 34 Nm | 3/8" NPT | 3/8" NPT | 69.0 MPa |
| 199502272 | NPT female / male adapters 10K | 61 Nm | 1/2" NPT | 1/2" NPT | 69.0 MPa |
| 199502273 | NPT female / male adapters 10K | 102 Nm | 3/4" NPT | 3/4" NPT | 69.0 MPa |
| 199502274 | NPT female / male adapters 10K | 163 Nm | 1" NPT | 1" NPT | 69.0 MPa |
| LP Adapters, NPT, Stainless Steel (Max 15k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199502270 | NPT female / male adapters 10K | 29 Nm | 1/4" NPT | 1/4" NPT | 69.0 MPa |
| 199502271 | NPT female / male adapters 10K | 34 Nm | 3/8" NPT | 3/8" NPT | 69.0 MPa |
| 199502272 | NPT female / male adapters 10K | 61 Nm | 1/2" NPT | 1/2" NPT | 69.0 MPa |
| 199502273 | NPT female / male adapters 10K | 102 Nm | 3/4" NPT | 3/4" NPT | 69.0 MPa |
| 199502274 | NPT female / male adapters 10K | 163 Nm | 1" NPT | 1" NPT | 69.0 MPa |
