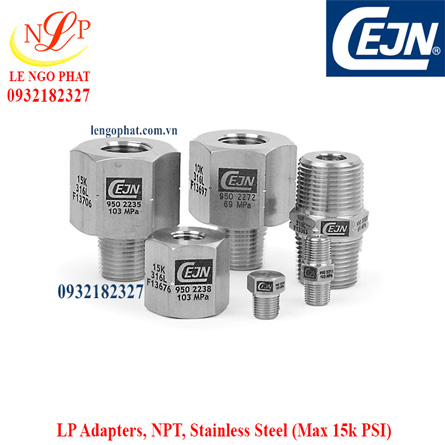

LP Adapters, NPT male adapters 10k, Stainless Steel

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/8" to 1" NPT. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

Mã sản phẩm: NPT male adapters 10k

Model: 199502078, 199502079, 199502080, 199502081, 199502082, 199502083, 199502084, 199502085, 199502086, 199502087, 199502088, 199502089, 199502210

LP Adapters, NPT, Stainless Steel (Max 15k PSI)

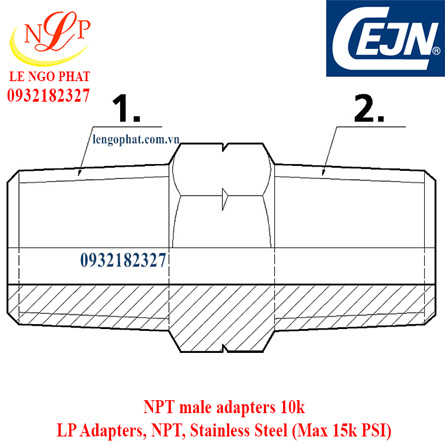

Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502078	NPT male adapters 10k	23 Nm	1/8" NPT	1/8" NPT	69.0 MPa
199502079	NPT male adapters 10k	con.1: 29 con.2: 29 Nm	1/4" NPT	1/4" NPT	69.0 MPa
199502080	NPT male adapters 10k	34 Nm	3/8" NPT	3/8" NPT	69.0 MPa
199502081	NPT male adapters 10k	con.1: 34 con.2: 29 Nm	3/8" NPT	1/4" NPT	69.0 MPa
199502082	NPT male adapters 10k	61 Nm	1/2" NPT	1/2" NPT	69.0 MPa
199502083	NPT male adapters 10k	con.1: 61 con.2: 29 Nm	1/2" NPT	1/4" NPT	69.0 MPa
199502084	NPT male adapters 10k	con.1: 61 con.2: 34 Nm	1/2" NPT	3/8" NPT	69.0 MPa
199502085	NPT male adapters 10k	102 Nm	3/4" NPT	3/4" NPT	69.0 MPa
199502086	NPT male adapters 10k	con.1: 102 con.2: 61 Nm	3/4" NPT	1/2" NPT	69.0 MPa
199502087	NPT male adapters 10k	163 Nm	1" NPT	1" NPT	69.0 MPa
199502088	NPT male adapters 10k	con.1: 163 con.2: 61 Nm	1" NPT	1/2" NPT	69.0 MPa
199502089	NPT male adapters 10k	con.1: 163 con.2: 102 Nm	1" NPT	3/4" NPT	69.0 MPa
199502210	NPT male adapters 10k	con.1: 23 con.2: 29 Nm	1/8" NPT	1/4" NPT	69.0 MPa
