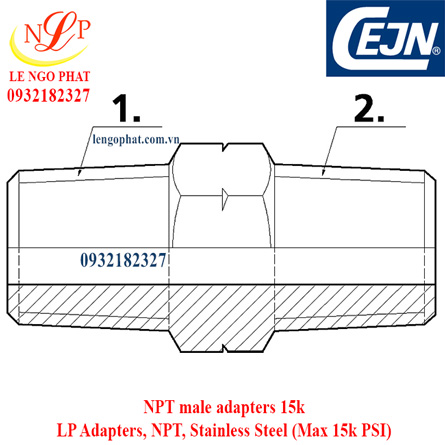

LP Adapters, NPT male adapters 15k

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/8" to 1" NPT. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

Mã sản phẩm: NPT male adapters 15k

Model: 199502211, 199502212, 199502213, 199502214, 199502215, 199502216, 199502217, 199502218, 199502219, 199502220, 199502221, 199502222, 199502223

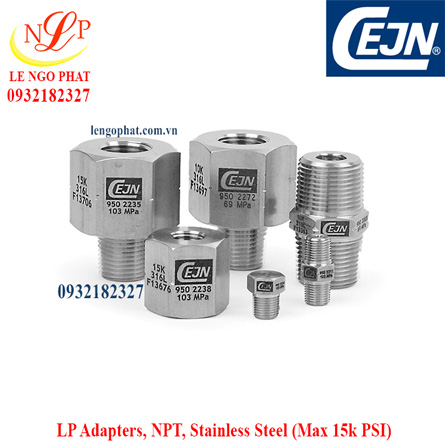

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502211	NPT male adapters 15k	23 Nm	1/8" NPT	1/8" NPT	103.0 MPa
199502212	NPT male adapters 15k	con.1: 23 con.2: 29 Nm	1/8" NPT	1/4" NPT	103.0 MPa
199502213	NPT male adapters 15k	29 Nm	1/4" NPT	1/4" NPT	103.0 MPa
199502214	NPT male adapters 15k	34 Nm	3/8" NPT	3/8" NPT	103.0 MPa
199502215	NPT male adapters 15k	con.1: 34 con.2: 29 Nm	3/8" NPT	1/4" NPT	103.0 MPa
199502216	NPT male adapters 15k	61 Nm	1/2" NPT	1/2" NPT	103.0 MPa
199502217	NPT male adapters 15k	con.1: 61 con.2: 29 Nm	1/2" NPT	1/4" NPT	103.0 MPa
199502218	NPT male adapters 15k	con.1: 61 con.2: 34 Nm	1/2" NPT	3/8" NPT	103.0 MPa
199502219	NPT male adapters 15k	102 Nm	3/4" NPT	3/4" NPT	103.0 MPa
199502220	NPT male adapters 15k	con.1: 102 con.2: 61 Nm	3/4" NPT	1/2" NPT	103.0 MPa
199502221	NPT male adapters 15k	163 Nm	1" NPT	1" NPT	103.0 MPa
199502222	NPT male adapters 15k	con.1: 163 con.2: 61 Nm	1" NPT	1/2" NPT	103.0 MPa
199502223	NPT male adapters 15k	con.1: 163 con.2: 102 Nm	1" NPT	3/4" NPT	103.0 MPa

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502211	NPT male adapters 15k	23 Nm	1/8" NPT	1/8" NPT	103.0 MPa
199502212	NPT male adapters 15k	con.1: 23 con.2: 29 Nm	1/8" NPT	1/4" NPT	103.0 MPa
199502213	NPT male adapters 15k	29 Nm	1/4" NPT	1/4" NPT	103.0 MPa
199502214	NPT male adapters 15k	34 Nm	3/8" NPT	3/8" NPT	103.0 MPa
199502215	NPT male adapters 15k	con.1: 34 con.2: 29 Nm	3/8" NPT	1/4" NPT	103.0 MPa
199502216	NPT male adapters 15k	61 Nm	1/2" NPT	1/2" NPT	103.0 MPa
199502217	NPT male adapters 15k	con.1: 61 con.2: 29 Nm	1/2" NPT	1/4" NPT	103.0 MPa
199502218	NPT male adapters 15k	con.1: 61 con.2: 34 Nm	1/2" NPT	3/8" NPT	103.0 MPa
199502219	NPT male adapters 15k	102 Nm	3/4" NPT	3/4" NPT	103.0 MPa
199502220	NPT male adapters 15k	con.1: 102 con.2: 61 Nm	3/4" NPT	1/2" NPT	103.0 MPa
199502221	NPT male adapters 15k	163 Nm	1" NPT	1" NPT	103.0 MPa
199502222	NPT male adapters 15k	con.1: 163 con.2: 61 Nm	1" NPT	1/2" NPT	103.0 MPa
199502223	NPT male adapters 15k	con.1: 163 con.2: 102 Nm	1" NPT	3/4" NPT	103.0 MPa

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502211	NPT male adapters 15k	23 Nm	1/8" NPT	1/8" NPT	103.0 MPa
199502212	NPT male adapters 15k	con.1: 23 con.2: 29 Nm	1/8" NPT	1/4" NPT	103.0 MPa
199502213	NPT male adapters 15k	29 Nm	1/4" NPT	1/4" NPT	103.0 MPa
199502214	NPT male adapters 15k	34 Nm	3/8" NPT	3/8" NPT	103.0 MPa
199502215	NPT male adapters 15k	con.1: 34 con.2: 29 Nm	3/8" NPT	1/4" NPT	103.0 MPa
199502216	NPT male adapters 15k	61 Nm	1/2" NPT	1/2" NPT	103.0 MPa
199502217	NPT male adapters 15k	con.1: 61 con.2: 29 Nm	1/2" NPT	1/4" NPT	103.0 MPa
199502218	NPT male adapters 15k	con.1: 61 con.2: 34 Nm	1/2" NPT	3/8" NPT	103.0 MPa
199502219	NPT male adapters 15k	102 Nm	3/4" NPT	3/4" NPT	103.0 MPa
199502220	NPT male adapters 15k	con.1: 102 con.2: 61 Nm	3/4" NPT	1/2" NPT	103.0 MPa
199502221	NPT male adapters 15k	163 Nm	1" NPT	1" NPT	103.0 MPa
199502222	NPT male adapters 15k	con.1: 163 con.2: 61 Nm	1" NPT	1/2" NPT	103.0 MPa
199502223	NPT male adapters 15k	con.1: 163 con.2: 102 Nm	1" NPT	3/4" NPT	103.0 MPa
