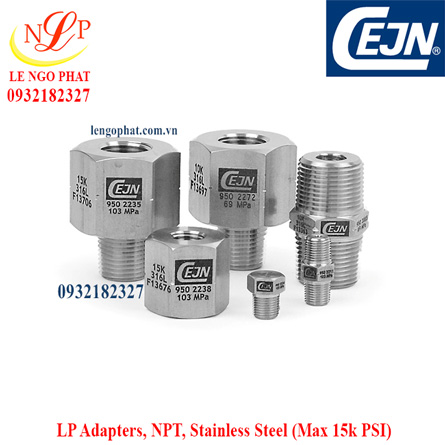

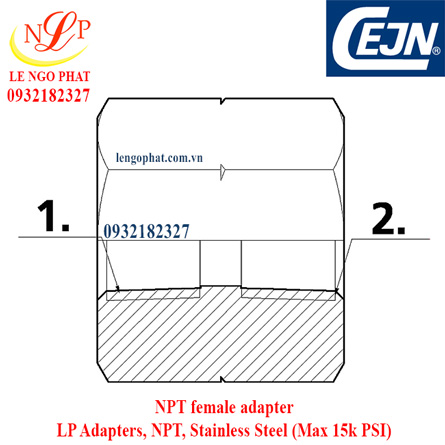

NPT female adapter 15K

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/8" to 1" NPT. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

Mã sản phẩm: NPT female adapter 15K

Model: 199502238, 199502239, 199502240, 199502241

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502238	NPT female adapter 15K	29 Nm	1/4" NPT	1/4" NPT	103.0 MPa
199502239	NPT female adapter 15K	34 Nm	3/8" NPT	3/8" NPT	103.0 MPa
199502240	NPT female adapter 15K	61 Nm	1/2" NPT	1/2" NPT	103.0 MPa
199502241	NPT female adapter 15K	102 Nm	3/4" NPT	3/4" NPT	103.0 MPa

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502238	NPT female adapter 15K	29 Nm	1/4" NPT	1/4" NPT	103.0 MPa
199502239	NPT female adapter 15K	34 Nm	3/8" NPT	3/8" NPT	103.0 MPa
199502240	NPT female adapter 15K	61 Nm	1/2" NPT	1/2" NPT	103.0 MPa
199502241	NPT female adapter 15K	102 Nm	3/4" NPT	3/4" NPT	103.0 MPa

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502238	NPT female adapter 15K	29 Nm	1/4" NPT	1/4" NPT	103.0 MPa
199502239	NPT female adapter 15K	34 Nm	3/8" NPT	3/8" NPT	103.0 MPa
199502240	NPT female adapter 15K	61 Nm	1/2" NPT	1/2" NPT	103.0 MPa
199502241	NPT female adapter 15K	102 Nm	3/4" NPT	3/4" NPT	103.0 MPa
