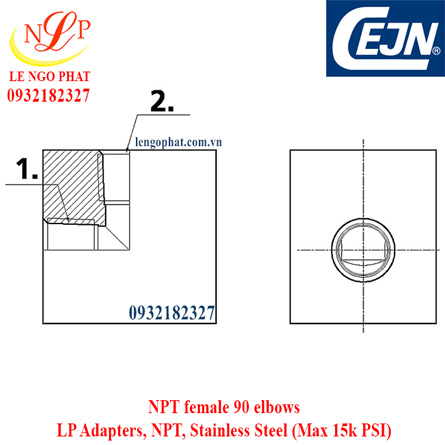

NPT female 90 elbows 15K

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/8" to 1" NPT. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

Mã sản phẩm: NPT female 90 elbows

Model: 199502230, 199502231, 199502232

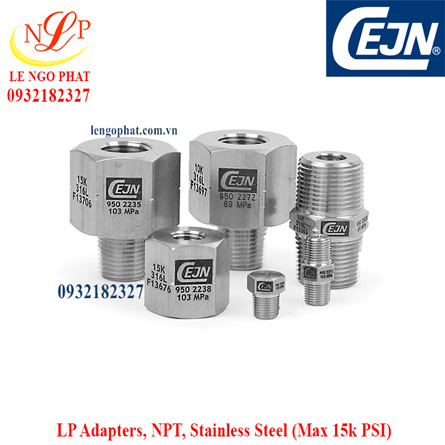

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Description	Rec. torque (Nm)	Max working pressure
199502230	NPT female 90 elbows 15K	Elbow 1/4" NPT F/F 90 15K 316L 15000 psi (103 Mpa)	29 Nm	14938 PSI (103.0 MPa)
199502231	NPT female 90 elbows 15K	Elbow 3/8" NPT F/F 90 15K 316L 15000 psi (103 Mpa)	34 Nm	14938 PSI (103.0 MPa)
199502232	NPT female 90 elbows 15K	Elbow 1/2" NPT F/F 90 15K 316L 15000 psi (103 Mpa)	61 Nm	14938 PSI (103.0 MPa)

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Description	Rec. torque (Nm)	Max working pressure
199502230	NPT female 90 elbows 15K	Elbow 1/4" NPT F/F 90 15K 316L 15000 psi (103 Mpa)	29 Nm	14938 PSI (103.0 MPa)
199502231	NPT female 90 elbows 15K	Elbow 3/8" NPT F/F 90 15K 316L 15000 psi (103 Mpa)	34 Nm	14938 PSI (103.0 MPa)
199502232	NPT female 90 elbows 15K	Elbow 1/2" NPT F/F 90 15K 316L 15000 psi (103 Mpa)	61 Nm	14938 PSI (103.0 MPa)

LP Adapters, NPT, Stainless Steel (Max 15k PSI)
Part No.	Category	Description	Rec. torque (Nm)	Max working pressure
199502230	NPT female 90 elbows 15K	Elbow 1/4" NPT F/F 90 15K 316L 15000 psi (103 Mpa)	29 Nm	14938 PSI (103.0 MPa)
199502231	NPT female 90 elbows 15K	Elbow 3/8" NPT F/F 90 15K 316L 15000 psi (103 Mpa)	34 Nm	14938 PSI (103.0 MPa)
199502232	NPT female 90 elbows 15K	Elbow 1/2" NPT F/F 90 15K 316L 15000 psi (103 Mpa)	61 Nm	14938 PSI (103.0 MPa)
