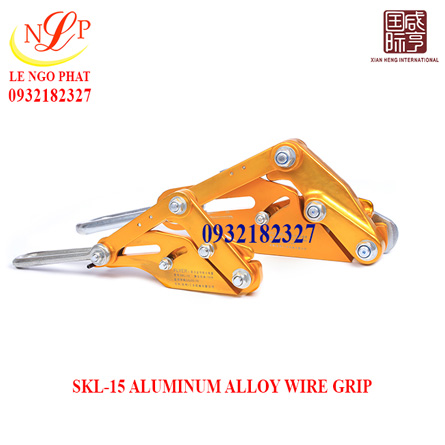

SKL-15 ALUMINUM ALLOY WIRE GRIP

Model: SKL-15

Rated load (KN): 15

Applicable conductor: LGJ95-120

Max. opening(mm): 18

Weight(kg): 1. 4

Clamp with protection hook devices, strength test up to 3 times and no damage to conductor, especially suitable for power distribution and transmission companies

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: SKL-15

Model: SKL-15

Technical Date:

Model	Rated load (KN)	Applicable conductor	Max. opening(mm)	Weight(kg)
SKL-7	7	LGJ25-70	14	1. 0
SKL-15	15	LGJ95-120	18	1. 4
SKL-25	25	LGJ150-240	24	3. 0
SKL-40	40	LGJ300-400	32	4. 0
SKL-50	50	LGJ500-630	36	6. 6
SKL-40G	40	LGJ400	32	5. 3
SKL-50G	50	LGJ500	34	7. 0

Features:

1. Applied to adjusting sag in erecting wire and sagging.

2. Forged of high strength aluminum alloy, compact and light weight.

3. Model number with “G” stands for clamp with protection hook device.

4. Clamp with protection hook devices, strength test up to 3 times and no damage to conductor, especially suitable for power distribution and transmission companies.

TỪ KHÓA: C-C1 SERIES, LJG SERIES, SHL SERIES, SDTG, SHG, SKL SERIES, P SERIES, 2TON, 3TON-G, SBT-5, SBT-51, SBT-3A, CPEM-9031C, BTJM-3, DS-180, IR-SERIES, SBT-10, SBT-20, SBT-5, SBT-5A, SBT-3A, TCS-5, PCS-25DL, EXZ-150, CỤNG CỤ KÉO CÁP CON LĂN, DỤNG CỤ KÉO CĂN DÂY CÁP, MÁY KÉO CÁP, DỤNG CỤ HỘ TRỢ KÉO CÁP

Technical Date:

Model	Rated load (KN)	Applicable conductor	Max. opening(mm)	Weight(kg)
SKL-7	7	LGJ25-70	14	1. 0
SKL-15	15	LGJ95-120	18	1. 4
SKL-25	25	LGJ150-240	24	3. 0
SKL-40	40	LGJ300-400	32	4. 0
SKL-50	50	LGJ500-630	36	6. 6
SKL-40G	40	LGJ400	32	5. 3
SKL-50G	50	LGJ500	34	7. 0

Features:

1. Applied to adjusting sag in erecting wire and sagging.

2. Forged of high strength aluminum alloy, compact and light weight.

3. Model number with “G” stands for clamp with protection hook device.

4. Clamp with protection hook devices, strength test up to 3 times and no damage to conductor, especially suitable for power distribution and transmission companies.

Technical Date:

Model	Rated load (KN)	Applicable conductor	Max. opening(mm)	Weight(kg)
SKL-7	7	LGJ25-70	14	1. 0
SKL-15	15	LGJ95-120	18	1. 4
SKL-25	25	LGJ150-240	24	3. 0
SKL-40	40	LGJ300-400	32	4. 0
SKL-50	50	LGJ500-630	36	6. 6
SKL-40G	40	LGJ400	32	5. 3
SKL-50G	50	LGJ500	34	7. 0

Features:

1. Applied to adjusting sag in erecting wire and sagging.

2. Forged of high strength aluminum alloy, compact and light weight.

3. Model number with “G” stands for clamp with protection hook device.

4. Clamp with protection hook devices, strength test up to 3 times and no damage to conductor, especially suitable for power distribution and transmission companies.

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

DOWNLOAD Catalogue
