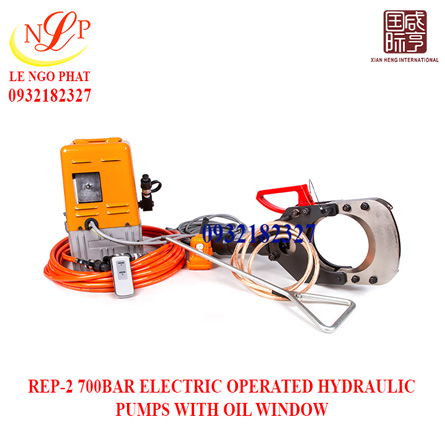

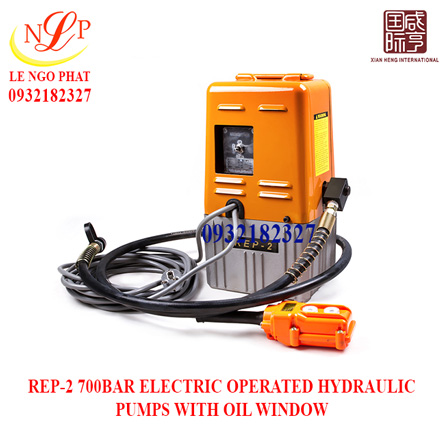

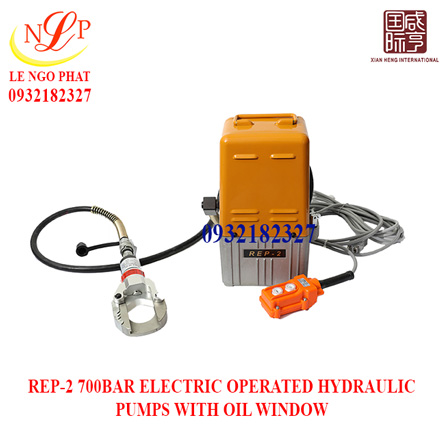

Model:: REP-2
Rated pressure: 70 MPa/700bar
Pressure relief method: Automatic Pressure Relief
Low pressure Flow rate: 2.6 L/min
High pressure flow rate: 0.32L/min
Operating voltage: 200 to 250V
Frequency: 50-60Hz
Volume of oil: 2.4L
Weight: 16kg
Standard Hydraulic Hose: 2m
Technical Data:
Model |
REP-2 |
Rated pressure |
70 MPa/700bar |
Pressure relief method |
Automatic Pressure Relief |
Low pressure Flow rate |
2.6 L/min |
High pressure flow rate |
0.32L/min |
Operating voltage |
200 to 250V |
Frequency |
50-60Hz |
Volume of oil |
2.4L |
Weight |
16kg |
Standard Hydraulic Hose |
2m |
Features:
1.A 3 meter remote control cable provides both safety and convenience
2.Electromagnetic valve controls the hydraulic pump
3.Oil output can be inching put by remote control, can advance, stop, and retract oil at will,
enable to work in correct position
4.Pressure can be retained in case of need (pressure maintaining)
Technical Data:
Model |
REP-2 |
Rated pressure |
70 MPa/700bar |
Pressure relief method |
Automatic Pressure Relief |
Low pressure Flow rate |
2.6 L/min |
High pressure flow rate |
0.32L/min |
Operating voltage |
200 to 250V |
Frequency |
50-60Hz |
Volume of oil |
2.4L |
Weight |
16kg |
Standard Hydraulic Hose |
2m |
Features:
1.A 3 meter remote control cable provides both safety and convenience
2.Electromagnetic valve controls the hydraulic pump
3.Oil output can be inching put by remote control, can advance, stop, and retract oil at will,
enable to work in correct position
4.Pressure can be retained in case of need (pressure maintaining)
Technical Data:
Model |
REP-2 |
Rated pressure |
70 MPa/700bar |
Pressure relief method |
Automatic Pressure Relief |
Low pressure Flow rate |
2.6 L/min |
High pressure flow rate |
0.32L/min |
Operating voltage |
200 to 250V |
Frequency |
50-60Hz |
Volume of oil |
2.4L |
Weight |
16kg |
Standard Hydraulic Hose |
2m |
Features:
1.A 3 meter remote control cable provides both safety and convenience
2.Electromagnetic valve controls the hydraulic pump
3.Oil output can be inching put by remote control, can advance, stop, and retract oil at will,
enable to work in correct position
4.Pressure can be retained in case of need (pressure maintaining)
