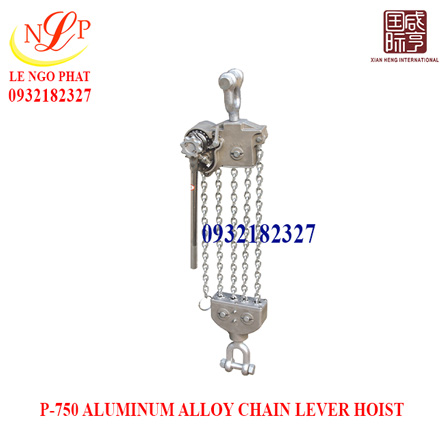

P-750 ALUMINUM ALLOY CHAIN LEVER HOIST

Model: P-750

Working Capacity( (KN): 7.5

Test load (KN): 11.3

Chain Diameter(MM): 5

Contraction Distance( (MM): 300

Stretch Distance( (MM): 1800

Standard Lift(MM): 1500

Handle Length (MM): 230

Net Weight(kg): 4.7

Extra weight per meter of extra lift( (kg): 0.55

Suitable for tightening line, adjusting sag, drawing line and other work in line construction

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: P-750

Model: P-750

Features:

1. Used to tighten cables in power line construction, adjust sag, pull wire and other work

2. Widely used in electric power, shipbuilding, transportation, construction, mineral, post and telecommunications, and communications.

3. Lifting small items, part drawing, etc., especially in small workplaces, wild, aerial work and different angles traction, etc., it has the unique superiority.

4. Main body uses high strength magnesium alloy

5. The chain is made of high strength steel, convenient, safe and reliable; Reasonable structure, beautiful appearance, simple maintenance and durable

6. The hand force is small, high work efficiency

7. Small size, light weight, easy to carry

Technical Date:

Model	Working Capacity( (KN)	Test load (KN)	Chain Diameter(MM)	Contraction Distance( (MM)	Stretch Distance( (MM)	Standard Lift(MM)	Handle Length (MM)	Net Weight(kg)	Extra weight per meter of extra lift( (kg)
P-750	7.5	11.3	5	300	1800	1500	230	4.7	0.55
P-1500	15	22.5	5	350	1850	1500	230	5.8	1.10
P-3000	30	45	6	350	1850	1500	430	9.5	1.70
P-6000	60	90	6	650	2150	1500	730	18.0	2.80
P-9000	90	135	7	820	2320	1500	730	24.0	3.20
