MB-RAD Battery Torque Wrenches
MB-RAD 1400
Tool Model: MB-RAD 1400
Part No.200922
• TORQUE RANGE: 140 - 1400 Nm
• SPEED: 10 RPM
• WEIGHT: 3,7 Kg with battery, excluding reaction arm and impact socket
• SQUARE DRIVE: ¾ inch square drive
• BATTERY: Two 18V Li-ion batteries 5.2 Amp/93 Wh
• NOISE LEVEL: Maximum 65 dB
• TORQUE SETTING: Steps of 1 Nm
• REPEATABILITY ON SAME JOINT *: +/- 3%.
* Test results from RAD’s certificated calibration lab
MB-RAD BATTERY SERIES
Torque range: 30 – 7.000 Nm
The MB-RAD Series torque wrenches are the professional range of torque wrenches for the more demanding user. Now with data logging via bluetooth and advanced bolting options such as a smart bolt counter, torque check and the possibility to set torque + angle limits.
Part No. |
Model | Square drive |
Torque range | Speed |
Noise |
Inch | Nm | RPM | DBA | ||
200919 | MB-RAD 275 | ½" | 30 - 300 Nm | 48 | 65 |
200921 | MB-RAD 700 | ¾" | 70 - 700 Nm | 21 | 65 |
200922 | MB-RAD 1400 | ¾" | 140 - 1.400 Nm | 10 | 65 |
200924 | MB-RAD 2000 | 1" | 200 - 2.000 Nm | 6 | 65 |
200926 | MB-RAD 4000 | 1" | 400 - 4.000 Nm | 3 | 65 |
200928 | MB-RAD 7000 | 1,5" | 700 - 7.000 Nm | 2 | 65 |

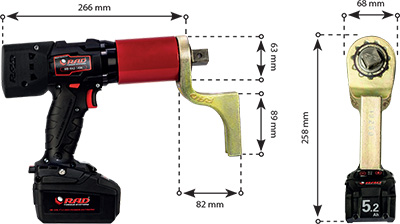

Part No. |
Model | Square drive |
Weight | Dim. A | Dim. B | Dim. C | Dim. D |
200919 | MB-RAD 275 | ½" | 3,5 Kg | 247 mm | 63 mm | 68 mm | 258 mm |
200921 | MB-RAD 700 | ¾" | 3,5 Kg | 266 mm | 63 mm | 68 mm | 258 mm |
200922 | MB-RAD 1400 | ¾" | 3,7 Kg | 266 mm | 63 mm | 68 mm | 258 mm |
200924 | MB-RAD 2000 | 1" | 4,3 Kg | 276 mm | 69 mm | 69 mm | 262 mm |
200926 | MB-RAD 4000 | 1" | 6,0 Kg | 301 mm | 81 mm | 81 mm | 268 mm |
200928 | MB-RAD 7000 | 1,5" | 8,7 Kg | 322 mm | 95 mm | 95 mm | 277 mm |

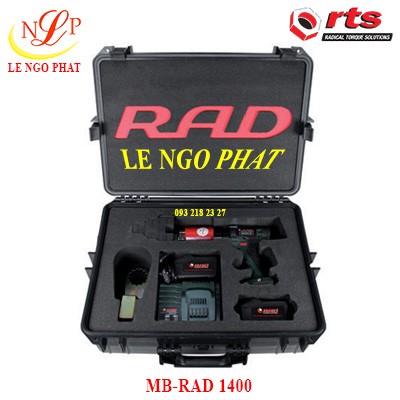

TOOL KIT INCLUDING:
|
In addition, the MB-RAD Series torque wrenches are standard equipped with torque + angle limits and automatic reaction arm release.
MB-RAD features:
All MB-RAD tools include:
Optional 8.0 Ah LiHD high-performance battery pack
The combination of new high-performance battery cells and completely newly developed electronic components in the pack ensure that maximum power remains available for a longer time. So you can now tighten even more bolts compared to the already impressive performing 5.2 Ah batteries.
Unfortunately, because of the increased power output, it is not possible to airfreight the 8.0 Ah battery due to IATA restrictions. These restrictions do not apply to sea and overland transport. Therefore RAD’s battery powered torque wrenches will not be equipped as standard with the LiHD 8.0 Ah battery pack but with the current 5.2 Ah battery pack.
Part number 8.0 Ah LiHD battery pack: 200473
Optional: Double Safety Button
Part number: 25949
All MB-RAD torque wrenches can optionally be equipped with a “Double safety button”. This optional safety system consists of an extra button on the topside of the tool which need to be pressed simultaneously with the trigger in order to start operation of the tool.
This system dramatically reduces the pinching risk with the reaction arm as it forces the operator to have two hands on the tool handle at all time.
SUITABLE REACTION ARMS FOR MB-RAD 1400:
Standard |
Deep socket PN: 13367 |
Double ended |
Blank |
Double ended blank PN: 13365 |
Safety sliding |
Từ khóa: MB-RAD 275, MB-RAD 700, MB-RAD 1400, MB-RAD 2000, MB-RAD 4000, MB-RAD 7000
