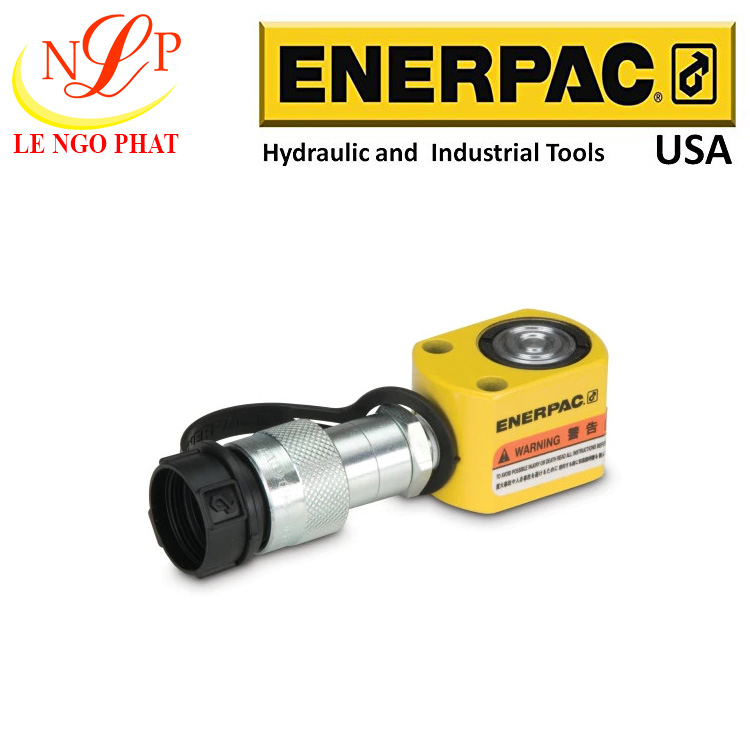

RC50, 4.9 ton Capacity, .63 in Stroke, General Purpose Hydraulic Cylinder
Maximum Operating Pressure (bar): 700
Capacity Class (tonnage): 5
Maximum Cylinder Capacity Advance (kN): 45
Stroke (mm): 16
Collapsed Height A (mm): 41
Extended Height B (mm): 57
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance (cm2): 6,4
Oil Capacity Advance (cm3): 10
Surface Treatment: Paint
Weight (kg): 1,0
Metric Specifications model RC50 |
Imperial Specifications model RC50 | ||
Maximum Operating Pressure (bar) |
700 | Maximum Operating Pressure (psi) |
10,000 |
Capacity Class (tonnage) |
5 | Capacity Class (kN) |
5 |
Maximum Cylinder Capacity Advance (kN) |
45 |
Maximum Cylinder Capacity Advance (tons) |
4.9 |
Stroke (mm) |
16 |
Stroke (in) |
0.63 |
Collapsed Height A (mm) |
41 |
Collapsed Height A (in) |
1.63 |
Extended Height B (mm) |
57 |
Extended Height B (in) |
2.25 |
Return Type |
Single-Acting, Spring Return | Return Type |
Single-Acting, Spring Return |
Plunger Type |
Solid | Plunger Type |
Solid |
Material |
Steel | Material |
Steel |
Cylinder Effective Area Advance (cm2) |
6,4 | Cylinder Effective Area Advance (in2) |
0.99 |
Oil Capacity Advance (cm3) |
10 | Oil Capacity Advance (in3) |
0.62 |
Surface Treatment |
Paint | Surface Treatment |
Paint |
Weight (kg) |
1,0 | Weight (lbs) |
2.2 |

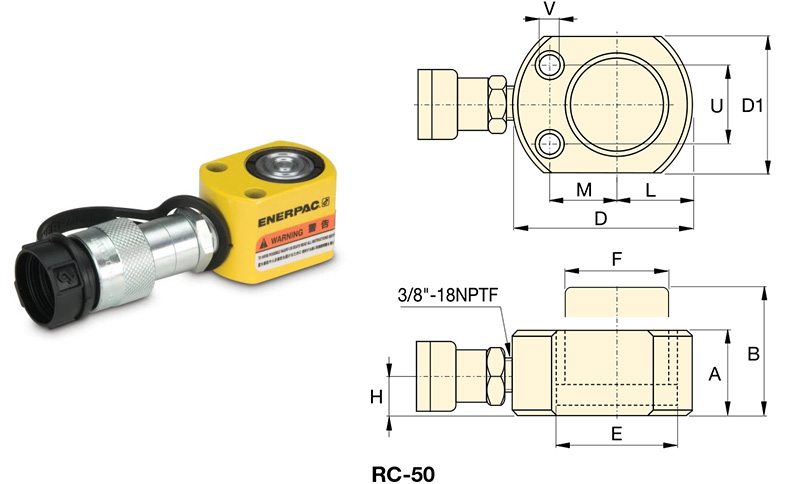

Metric Dimensions model RC50 |
Imperial Dimensions model RC50 |
||
Collapsed Height A (mm) |
41 | Collapsed Height A (in) |
1.63 |
Extended Height B (mm) |
57 |
Extended Height B (in) |
2.25 |
Outside Diameter D (mm) |
58 | Outside Diameter D (in) |
2.31 |
Dimension D1 (mm) |
41 |
|
|
Cylinder Bore Diameter E (mm) |
28,6 | Cylinder Bore Diameter E (in) |
1.13 |
Plunger Diameter F (mm) |
25,4 | Plunger Diameter F (in) | 1 |
Base to Advance Port H (mm) |
19 | Base to Advance Port H (in) | 0.75 |
Saddle Diameter J (mm) |
- | ||
Dimension L (mm) |
20 |
|
|
Dimension M (mm) |
25 |
|
|
Plunger Internal Thread O (in) |
- | Plunger Internal Thread O (in) | - |
Plunger Thread Length P (mm) |
- | ||
Base Mounting Holes Bolt Circle U (mm) |
29 | Base Mounting Holes Bolt Circle U (in) |
1.13 |
Base Mounting Holes Thread V |
5,6 mm | Base Mounting Holes Thread V |
5,6 mm |
Collar Thread Size W |
- | Collar Thread Size W | - |
Collar Thread W (in) |
- | Collar Thread W (in) | - |
Collar Thread Length X (mm) |
- | Collar Thread Length X (in) | - |
Base Mounting Holes Thread Depth Z (mm) |
- | Base Mounting Holes Thread Depth Z (in) | - |
Model Number | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (kN) |
Stroke (mm) | Collapsed Height A (mm) |
Extended Height B (mm) |
Cylinder Effective Area Advance (cm2) |
Oil Capacity Advance (cm3) |
Weight (kg) |
---|---|---|---|---|---|---|---|---|
RC50 | 5 | 45 | 16 | 41 | 57 | 6,4 | 10 | 1,0 |
RC51 | 5 | 45 | 25 | 110 | 135 | 6,4 | 16 | 1,0 |
RC53 | 5 | 45 | 79 | 165 | 244 | 6,4 | 50 | 1,5 |
RC55 | 5 | 45 | 127 | 216 | 343 | 6,4 | 83 | 1,9 |
RC57 | 5 | 45 | 177 | 273 | 450 | 6,4 | 115 | 2,4 |
RC59 | 5 | 45 | 232 | 324 | 556 | 6,4 | 151 | 2,8 |
RC101 | 10 | 101 | 26 | 90 | 116 | 14,4 | 38 | 1,8 |
RC102 | 10 | 101 | 54 | 121 | 175 | 14,4 | 78 | 2,3 |
RC104 | 10 | 101 | 105 | 171 | 276 | 14,4 | 152 | 3,3 |
RC106 | 10 | 101 | 156 | 248 | 404 | 14,4 | 226 | 4,4 |
RC108 | 10 | 101 | 203 | 298 | 501 | 14,4 | 294 | 5,4 |
RC1010 | 10 | 101 | 257 | 349 | 606 | 14,4 | 373 | 6,4 |
RC1012 | 10 | 101 | 304 | 400 | 704 | 14,4 | 441 | 6,8 |
RC1014 | 10 | 101 | 356 | 451 | 807 | 14,4 | 516 | 8,2 |
RC151 | 15 | 142 | 25 | 124 | 149 | 20,3 | 51 | 3,3 |
RC152 | 15 | 142 | 51 | 149 | 200 | 20,3 | 104 | 4,1 |
RC154 | 15 | 142 | 101 | 200 | 301 | 20,3 | 205 | 5,0 |
RC156 | 15 | 142 | 152 | 271 | 423 | 20,3 | 308 | 6,8 |
RC158 | 15 | 142 | 203 | 322 | 525 | 20,3 | 411 | 8,2 |
RC1510 | 15 | 142 | 254 | 373 | 627 | 20,3 | 516 | 9,5 |
RC1512 | 15 | 142 | 305 | 424 | 729 | 20,3 | 619 | 10,9 |
RC1514 | 15 | 142 | 356 | 475 | 831 | 20,3 | 723 | 11,8 |
RC251 | 25 | 232 | 26 | 140 | 166 | 33,3 | 86 | 5,9 |
RC252 | 25 | 232 | 50 | 165 | 215 | 33,3 | 166 | 6,4 |
RC254 | 25 | 232 | 102 | 216 | 318 | 33,3 | 339 | 8,2 |
RC256 | 25 | 232 | 158 | 273 | 431 | 33,3 | 525 | 10,0 |
RC258 | 25 | 232 | 210 | 324 | 534 | 33,3 | 697 | 12,2 |
RC2510 | 25 | 232 | 261 | 375 | 636 | 33,3 | 867 | 14,1 |
RC2512 | 25 | 232 | 311 | 425 | 736 | 33,3 | 1033 | 16,3 |
RC2514 | 25 | 232 | 362 | 476 | 838 | 33,3 | 1202 | 17,7 |
RC308 | 30 | 295 | 209 | 387 | 596 | 42,9 | 880 | 18,1 |
RC502 | 50 | 498 | 51 | 176 | 227 | 71,3 | 362 | 15,0 |
RC504 | 50 | 498 | 101 | 227 | 328 | 71,3 | 719 | 19,1 |
RC506 | 50 | 498 | 159 | 283 | 442 | 71,3 | 1131 | 23,1 |
RC5010 | 50 | 498 | 260 | 384 | 644 | 71,3 | 1855 | 31,8 |
RC5013 | 50 | 498 | 337 | 460 | 797 | 71,3 | 2399 | 37,6 |
RC756 | 75 | 718 | 156 | 286 | 442 | 102,6 | 1601 | 29,5 |
RC7513 | 75 | 718 | 333 | 492 | 825 | 102,6 | 3417 | 59,0 |
RC1002 | 100 | 933 | 50 | 219 | 270 | 133,1 | 676 | 36,7 |
RC1006 | 100 | 933 | 168 | 357 | 525 | 133,1 | 2239 | 59,0 |
RC10010 | 100 | 933 | 260 | 449 | 709 | 133,1 | 3466 | 72,6 |
RC53NV | 5 | 45 | 76 | 165 | 241 | 6,5 | 50 | 1,5 |
RC102NV | 10 | 101 | 51 | 121 | 175 | 14,5 | 78 | 2,3 |
RC106NV | 10 | 101 | 156 | 247 | 403 | 14,5 | 225 | 4,4 |
RC256NV | 25 | 232 | 156 | 273 | 431 | 33,2 | 528 | 10,0 |
Model : RC50
Series : RC
Product Lines : Industrial Tools
RC-TRIO Series Cylinders
The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. Featuring a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.
