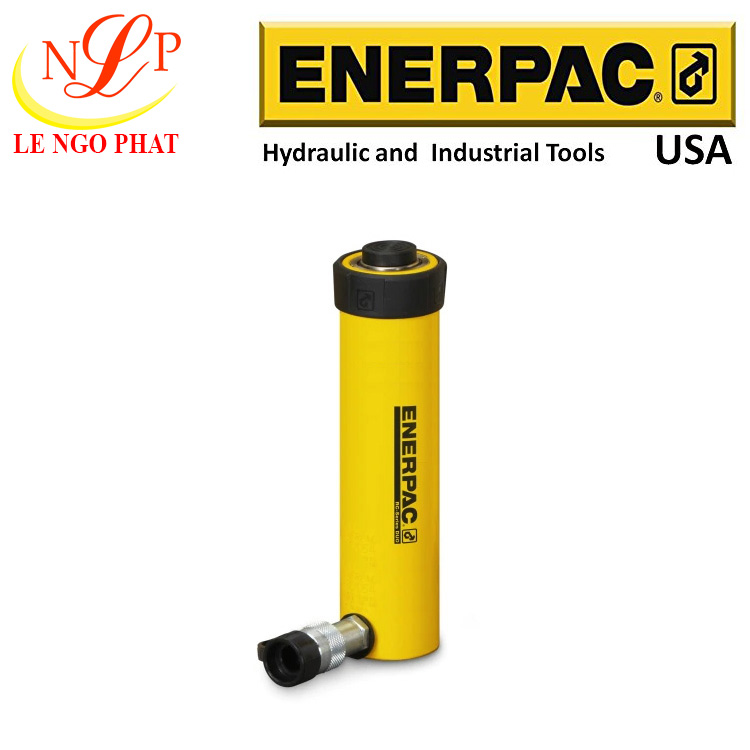

Kích thủy lực Enerpac RC2512

RC1512, 15.7 ton Capacity, 12.00 in Stroke, General Purpose Hydraulic Cylinder

Maximum Operating Pressure (bar): 700
Capacity Class (tonnage): 15
Maximum Cylinder Capacity Advance (kN): 142
Stroke (mm): 305
Collapsed Height A (mm): 424
Extended Height B (mm): 729
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance (cm2): 20,3
Oil Capacity Advance (cm3): 619
Surface Treatment: Paint
Weight (kg): 10,9

Giá: 0932182327

Mã sản phẩm: KÍCH THỦY LỰC ENERPAC

Model: 25 tấn, hành trình 305mm

ENERPAC RC2512 General Purpose Hydraulic Cylinder:

Metric Specifications model RC2512

Imperial Specifications model RC2512

Maximum Operating Pressure (bar)

700 Maximum Operating Pressure (psi)

10,000

Capacity Class (tonnage)

25 Capacity Class (kN)

25

Maximum Cylinder Capacity Advance (kN)

232

Maximum Cylinder Capacity Advance (tons)

25.8

Stroke (mm)

311

Stroke (in)

12.25

Collapsed Height A (mm)

425

Collapsed Height A (in)

16.75

Extended Height B (mm)

736

Extended Height B (in)

29

Return Type

Single-Acting, Spring Return Return Type

Single-Acting, Spring Return

Plunger Type

Solid Plunger Type

Solid

Material

Steel Material

Steel

Cylinder Effective Area Advance (cm2)

33,3 Cylinder Effective Area Advance (in2)

5.16

Oil Capacity Advance (cm3)

1033 Oil Capacity Advance (in3)

63.18

Surface Treatment

Paint Surface Treatment

Paint

Weight (kg)

16,3 Weight (lbs)

36

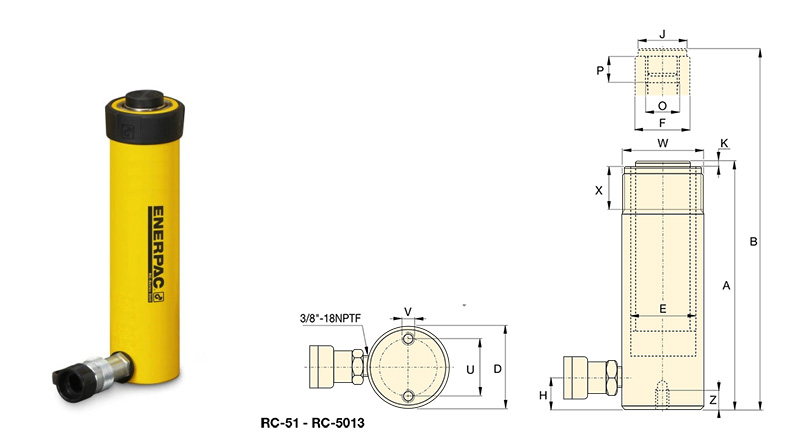

Metric Dimensions model RC2512

Imperial Dimensions model RC2512

Collapsed Height A (mm)

425 Collapsed Height A (in)

16.75

Optional Tilt Saddle Addition To Collapsed Height A1 (mm)

15 Optional Tilt Saddle Addition To Collapsed Height A1 (in) 0.59
    Optional Tilt Saddle Diameter J1 (in) 1.97

Extended Height B (mm)

736

Extended Height B (in)

29

Outside Diameter D (mm)

86 Outside Diameter D (in)

3.38

Cylinder Bore Diameter E (mm)

65,1 Cylinder Bore Diameter E (in)

2.56

Plunger Diameter F (mm)

57,2 Plunger Diameter F (in) 2.25

Base to Advance Port H (mm)

25 Base to Advance Port H (in) 1

Saddle Diameter J (mm)

51 Saddle Diameter J1 (in) 1.97

Saddle Protrusion from Plunger K1 (mm)

10 Saddle Protrusion from Plunger K (in) 0.41

Plunger Internal Thread O (in)

1 1/2" - 16

Plunger Internal Thread O (in)

1 1/2" - 16

Plunger Thread Length P (mm)

25

Plunger Thread Length P (in)

1

Saddle Maximum Tilt Angle Radius (degrees)

5 Saddle Maximum Tilt Angle Radius (degrees) 5

Base Mounting Holes Bolt Circle U (mm)

59

Base Mounting Holes Bolt Circle U (in)

2.31

Base Mounting Holes Thread V

1/2"- 13 un

Base Mounting Holes Thread V

1/2"- 13 un

Collar Thread Size W

3 5/16" - 12 un

Collar Thread Size W

3 5/16" - 12 un

Collar Thread W (in)

3 5/16" - 12 UN

Collar Thread W (in)

3 5/16" - 12 UN

Collar Thread Length X (mm)

49

Collar Thread Length X (in)

1.94

Base Mounting Holes Thread Depth Z (mm)

19 Base Mounting Holes Thread Depth Z (in)

0.75

Metric Specifications RC Serial:

Model Number Capacity Class (tonnage) Maximum
Cylinder Capacity Advance
(kN)
Stroke (mm) Collapsed Height A
(mm)
Extended Height B
(mm)
Cylinder
Effective
Area
Advance (cm2)
Oil
Capacity Advance
(cm3)
Weight (kg)
RC50 5 45 16 41 57 6,4 10 1,0
RC51 5 45 25 110 135 6,4 16 1,0
RC53 5 45 79 165 244 6,4 50 1,5
RC55 5 45 127 216 343 6,4 83 1,9
RC57 5 45 177 273 450 6,4 115 2,4
RC59 5 45 232 324 556 6,4 151 2,8
RC101 10 101 26 90 116 14,4 38 1,8
RC102 10 101 54 121 175 14,4 78 2,3
RC104 10 101 105 171 276 14,4 152 3,3
RC106 10 101 156 248 404 14,4 226 4,4
RC108 10 101 203 298 501 14,4 294 5,4
RC1010 10 101 257 349 606 14,4 373 6,4
RC1012 10 101 304 400 704 14,4 441 6,8
RC1014 10 101 356 451 807 14,4 516 8,2
RC151 15 142 25 124 149 20,3 51 3,3
RC152 15 142 51 149 200 20,3 104 4,1
RC154 15 142 101 200 301 20,3 205 5,0
RC156 15 142 152 271 423 20,3 308 6,8
RC158 15 142 203 322 525 20,3 411 8,2
RC1510 15 142 254 373 627 20,3 516 9,5
RC1512 15 142 305 424 729 20,3 619 10,9
RC1514 15 142 356 475 831 20,3 723 11,8
RC251 25 232 26 140 166 33,3 86 5,9
RC252 25 232 50 165 215 33,3 166 6,4
RC254 25 232 102 216 318 33,3 339 8,2
RC256 25 232 158 273 431 33,3 525 10,0
RC258 25 232 210 324 534 33,3 697 12,2
RC2510 25 232 261 375 636 33,3 867 14,1
RC2512 25 232 311 425 736 33,3 1033 16,3
RC2514 25 232 362 476 838 33,3 1202 17,7
RC308 30 295 209 387 596 42,9 880 18,1
RC502 50 498 51 176 227 71,3 362 15,0
RC504 50 498 101 227 328 71,3 719 19,1
RC506 50 498 159 283 442 71,3 1131 23,1
RC5010 50 498 260 384 644 71,3 1855 31,8
RC5013 50 498 337 460 797 71,3 2399 37,6
RC756 75 718 156 286 442 102,6 1601 29,5
RC7513 75 718 333 492 825 102,6 3417 59,0
RC1002 100 933 50 219 270 133,1 676 36,7
RC1006 100 933 168 357 525 133,1 2239 59,0
RC10010 100 933 260 449 709 133,1 3466 72,6
RC53NV 5 45 76 165 241 6,5 50 1,5
RC102NV 10 101 51 121 175 14,5 78 2,3
RC106NV 10 101 156 247 403 14,5 225 4,4
RC256NV 25 232 156 273 431 33,2 528 10,0

Model : RC2512
Series : RC
Product Lines : Industrial Tools

RC-TRIO Series Cylinders
The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. Featuring a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.

New TRIO Bearing System

  • Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan.
  • Hardened composite material wear bands increase bearing surface area for greater sideload resistance - Significantly improving cylinder life.
  • New high-performance Polyethylene seals last longer than ever, improving lifespan and keep you working for longer.

New TRIO Stop Ring

  • Part of the Trio Bearing System, the Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
  • Capable of taking full cylinder extension force
  • Features durable wiper to help prevent contamination from entering the cylinder during retract cycles.

New TRIO Spring System

  • High-strength steel wire improves spring life
  • Spring retention design improves serviceability while allowing higher pre-load during assembly
  • Spring is easily removed without special tools.

Durable Piston Rod

  • High-strength steel plunger for improved life and sideload resistance
  • Nickel-plated plunger coating improves corrosion protection
  • Internal plunger threads for easy tool fixturing.

Enhanced Ergonomics

  • Standard carrying handles from 33 up to 55 lbs. Sizes above include certified lifting eyes or optional carrying handles
  • Collar threads, plunger threads and base mounting holes enable easy fixturing.

Improved Saddle Retention

  • Hardened plunger saddle protects plunger end during all lifting operations
  • Easily removable for access to plunger mounting threads
  • Tilt and smooth saddles available as accessories (compatible with new range of CATS-Series Tilt Saddles).

Enduring Compatibility

  • For full compatibility and peace of mind, the new RC-Series model numbers, external dimensions and threads remain unchanged from prior RC-Series cylinders. Ensuring compatibility with historical versions and systems.
