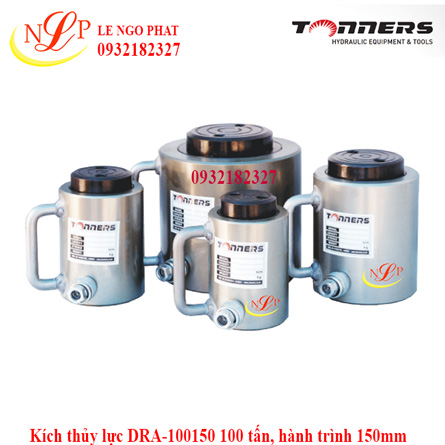

Kích thủy lực DRA-100150 100 tấn, hành trình 150mm

Kích thủy lực DRA-100150 100 tấn, hành trình 150mm

Feature
- Possible for heavy work in small space as spring return
type by using aluminum material
- Easy to handle as it is light weighted than the existing
Cylinder(Steel)
- Possible for multi-purpose manufacture by the user
demands and is possible to produce in 200ton, 300ton also
- Aluminum double acting cylinder is possible for special order

Giá: 0932182327

Mã sản phẩm: DRA-100150

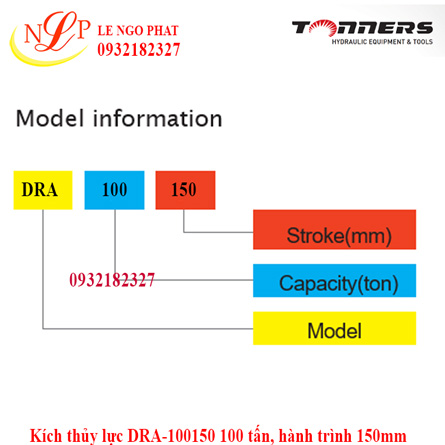

Model: DRA-100150

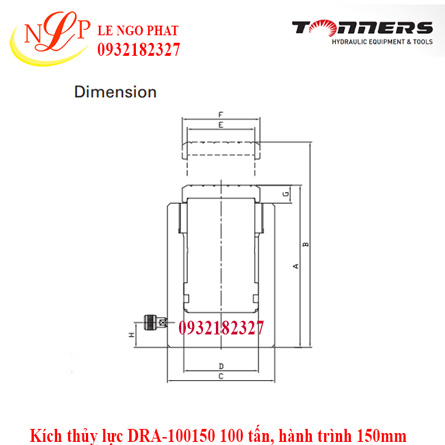

Model No.	Cylinder Capacity (ton)	Stroke (mm)	Cylinder Effective Area (cm2)	Retracted Height A	Extended Height B	Cylinder Out Dia C	Cylinder In Dia D	Piston Rod Dia E	Head Out Dia F	Head Height G	Coupler Height H	Weight (kg)
DRA-2050	20	50	33.1	153	203	98	65	58	68	18	25	3
DRA-20100	20	100	33.1	203	303	98	65	58	68	18	25	4.5
DRA-20150	20	150	33.1	253	403	98	65	58	68	18	25	5.3
DRA-3050	30	50	44.2	163	213	108	75	68	78	18	25	5.6
DRA-30100	30	100	44.2	213	313	108	75	68	78	18	25	6
DRA-30150	30	150	44.2	263	413	108	75	68	78	18	25	7
DRA-5050	50	50	70.8	181	231	136	95	85	98	21	30	7.5
DRA-50100	50	100	70.8	231	331	136	95	85	98	21	30	10
DRA-50150	50	150	70.8	281	431	136	95	85	98	21	30	11.2
DRA-10050	100	50	143.1	204	254	195	135	105	118	24	35	18.5
DRA-100100	100	100	143.1	254	354	195	135	105	118	24	35	25
DRA-100150	100	150	143.1	304	454	195	135	105	118	24	35	30
DRA-15050	150	50	213.8	211	261	248	165	135	148	26	33	29.5
DRA-150100	150	100	213.8	261	361	248	165	135	148	26	33	32
