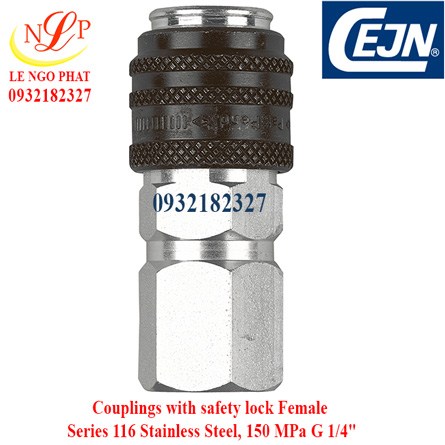

Couplings safety lock Female Flat-Face G 1/4"
Series 116 Stainless Steel, 150 MPa
Stainless steel
A CEJN original design for use on traditional tools such as tensioners, wrenches, pullers, power packs and more in harsh and corrosive environments. It features extremely small outside dimensions, and non-drip functionality is a given feature. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. All exposed components are stainless steel, or even acid proof steel, to provide the longest possible service life and thus save both the environment and money. To further extending service life of the entire hydraulic system both coupling and nipple are provided with plastic dust caps. Aluminum dust caps can be ordered separately.
| Category | Couplings with safety lock |
| Description Class | Female thread |
| Remark | Flat-Face |
| Connection | G 1/4" |
| Length | 72.4 mm |
| Diameter | - mm |
| Hexagon | 24 mm |
| Rec. torque (Nm) | 40-50 Nm |
| Rec. seal. method | CMS* |
| Nominal flow diameter | 2.5 mm (0.1") |
| Flow capacity | 6.0 l/min (1.3 GPM UK) |
| Max. working pressure | 150 MPa |
| Min. burst pressure | 300 MPa |
| Temperature range | -30°C — +100°C (-22°F — +212°F) |
| Material coupling | AISI 316, Hardened stainless steel |
| Material nipple | AISI 316, Hardened stainless steel |
| Material seal | Nitrile (NBR) other sealing materials on request |
*CMS= Cejn metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= cupper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
Oil Flow
x: Flow, l/min. (GPM UK)
y: Pressure drop, MPa
