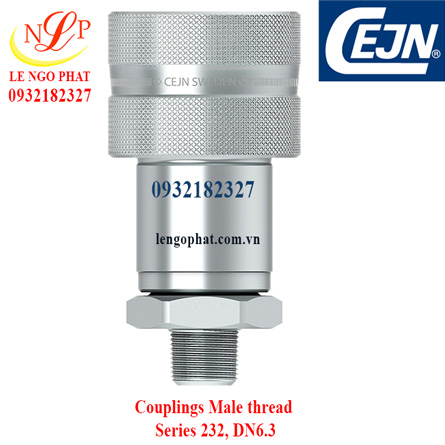

Couplings Male thread Series 232, DN6.3 1/8" NPT

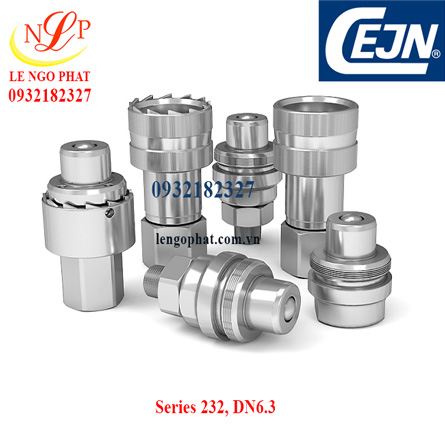

Series 232, DN6.3
Series 232 is a series of robust screw-to-connect couplings. The couplings are also available with teeth lock function for increased vibration resistance. Compliance with ISO 14540 ensures complete interchangeability with other brands following the same standard. High flow rate capacity, high quality and ability to withstand harsh conditions, make them an ideal fit for many different applications. With the teeth lock function, the connection is more vibration resistant to minimize the risk of accidental unscrewing and costly downtime.
| Category | Couplings |
| Description Class | Male thread |
| Connection | 1/8" NPT |
| Length | 56.4 mm |
| Diameter | 29 mm |
| Hexagon | 21 mm |
| Rec. torque (Nm) | 40-50 mm |
| Nominal flow diameter | 6.3mm (0.2") |
| Flow capacity | 16.1 l/min (3.5 GPM UK) |
| Max. working pressure | 72 MPa |
| Min. burst pressure connected | 216.0 MPa |
| Min burst pressure coupling disconnected | 180.0 MPa |
| Min burst pressure nipple disconnected | 149.0 MPa |
| Temperature range | -30°C — +100°C (-22°F — +212°F) |
| Material coupling | Zinc plated steel |
| Material nipple | Zinc plated steel |
| Material seal | Nitrile NBR |
Flow capacity is measured at 0.4 MPa pressure drop.
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
| Category | Couplings |
| Description Class | Male thread |
| Connection | 1/8" NPT |
| Length | 56.4 mm |
| Diameter | 29 mm |
| Hexagon | 21 mm |
| Rec. torque (Nm) | 40-50 mm |
| Nominal flow diameter | 6.3mm (0.2") |
| Flow capacity | 16.1 l/min (3.5 GPM UK) |
| Max. working pressure | 72 MPa |
| Min. burst pressure connected | 216.0 MPa |
| Min burst pressure coupling disconnected | 180.0 MPa |
| Min burst pressure nipple disconnected | 149.0 MPa |
| Temperature range | -30°C — +100°C (-22°F — +212°F) |
| Material coupling | Zinc plated steel |
| Material nipple | Zinc plated steel |
| Material seal | Nitrile NBR |
Flow capacity is measured at 0.4 MPa pressure drop.
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
| Category | Couplings |
| Description Class | Male thread |
| Connection | 1/8" NPT |
| Length | 56.4 mm |
| Diameter | 29 mm |
| Hexagon | 21 mm |
| Rec. torque (Nm) | 40-50 mm |
| Nominal flow diameter | 6.3mm (0.2") |
| Flow capacity | 16.1 l/min (3.5 GPM UK) |
| Max. working pressure | 72 MPa |
| Min. burst pressure connected | 216.0 MPa |
| Min burst pressure coupling disconnected | 180.0 MPa |
| Min burst pressure nipple disconnected | 149.0 MPa |
| Temperature range | -30°C — +100°C (-22°F — +212°F) |
| Material coupling | Zinc plated steel |
| Material nipple | Zinc plated steel |
| Material seal | Nitrile NBR |
Flow capacity is measured at 0.4 MPa pressure drop.
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
