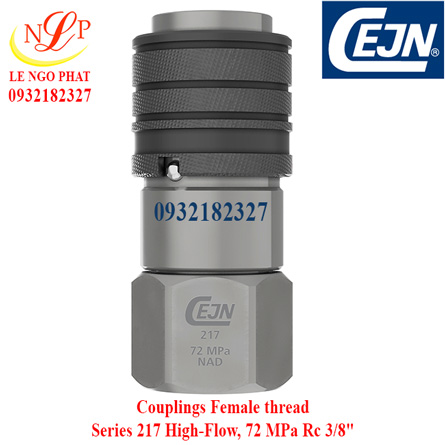

Couplings Female thread Series 217 High-Flow, 72 MPa Rc 3/8"

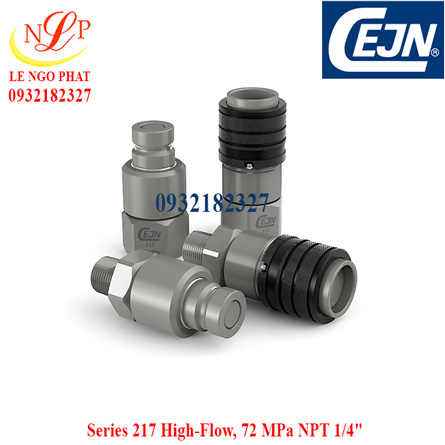

Series 217 High-Flow, 72 MPa
Series 217 couplings and nipples offers a superior flow performance in relation to working pressure. The product has a flat-face design that keeps air inclusion and spillage down to a minimum, protecting both the hydraulic system and the environment from contamination. The flat-face feature also enables one-handed operation and easy maintenance. To prevent unintentional connection and disconnection during operation, a safety lock is standard on all couplings. The CEJN Series 217 ultra high-pressure hydraulic quick disconnect is particularly suitable for high flow hydraulic systems.
| Category | Couplings |
| Description Class | Female thread |
| Remark | - |
| Connection | Rc 3/8" |
| Length | 62.7 mm |
| Diameter | 27 mm |
| Hexagon | 24 mm |
| Rec. torque (Nm) | 70-80 Nm |
| Rec. seal. method | - |
| Nominal flow diameter | 6.3 mm (0.2") |
| Flow capacity | 28 l/min (6.2 GPM UK) |
| Max. working pressure | 72 MPa |
| Min. burst pressure | 186 MPa |
| Temperature range | -30°C — +100°C (-22°F — +212°F) |
| Material coupling | Steel, Zn-Ni |
| Material nipple | Hardened steel, Zn-Ni |
| Material seal | NBR |
*CMS= CEJN metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= cupper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
Oil Flow
x: Flow l/min. (GPM UK)
y: Pressure drop, MPa
| Category | Couplings |
| Description Class | Female thread |
| Remark | - |
| Connection | Rc 3/8" |
| Length | 62.7 mm |
| Diameter | 27 mm |
| Hexagon | 24 mm |
| Rec. torque (Nm) | 70-80 Nm |
| Rec. seal. method | - |
| Nominal flow diameter | 6.3 mm (0.2") |
| Flow capacity | 28 l/min (6.2 GPM UK) |
| Max. working pressure | 72 MPa |
| Min. burst pressure | 186 MPa |
| Temperature range | -30°C — +100°C (-22°F — +212°F) |
| Material coupling | Steel, Zn-Ni |
| Material nipple | Hardened steel, Zn-Ni |
| Material seal | NBR |
*CMS= CEJN metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= cupper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
Oil Flow
x: Flow l/min. (GPM UK)
y: Pressure drop, MPa
| Category | Couplings |
| Description Class | Female thread |
| Remark | - |
| Connection | Rc 3/8" |
| Length | 62.7 mm |
| Diameter | 27 mm |
| Hexagon | 24 mm |
| Rec. torque (Nm) | 70-80 Nm |
| Rec. seal. method | - |
| Nominal flow diameter | 6.3 mm (0.2") |
| Flow capacity | 28 l/min (6.2 GPM UK) |
| Max. working pressure | 72 MPa |
| Min. burst pressure | 186 MPa |
| Temperature range | -30°C — +100°C (-22°F — +212°F) |
| Material coupling | Steel, Zn-Ni |
| Material nipple | Hardened steel, Zn-Ni |
| Material seal | NBR |
*CMS= CEJN metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= cupper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
Oil Flow
x: Flow l/min. (GPM UK)
y: Pressure drop, MPa
