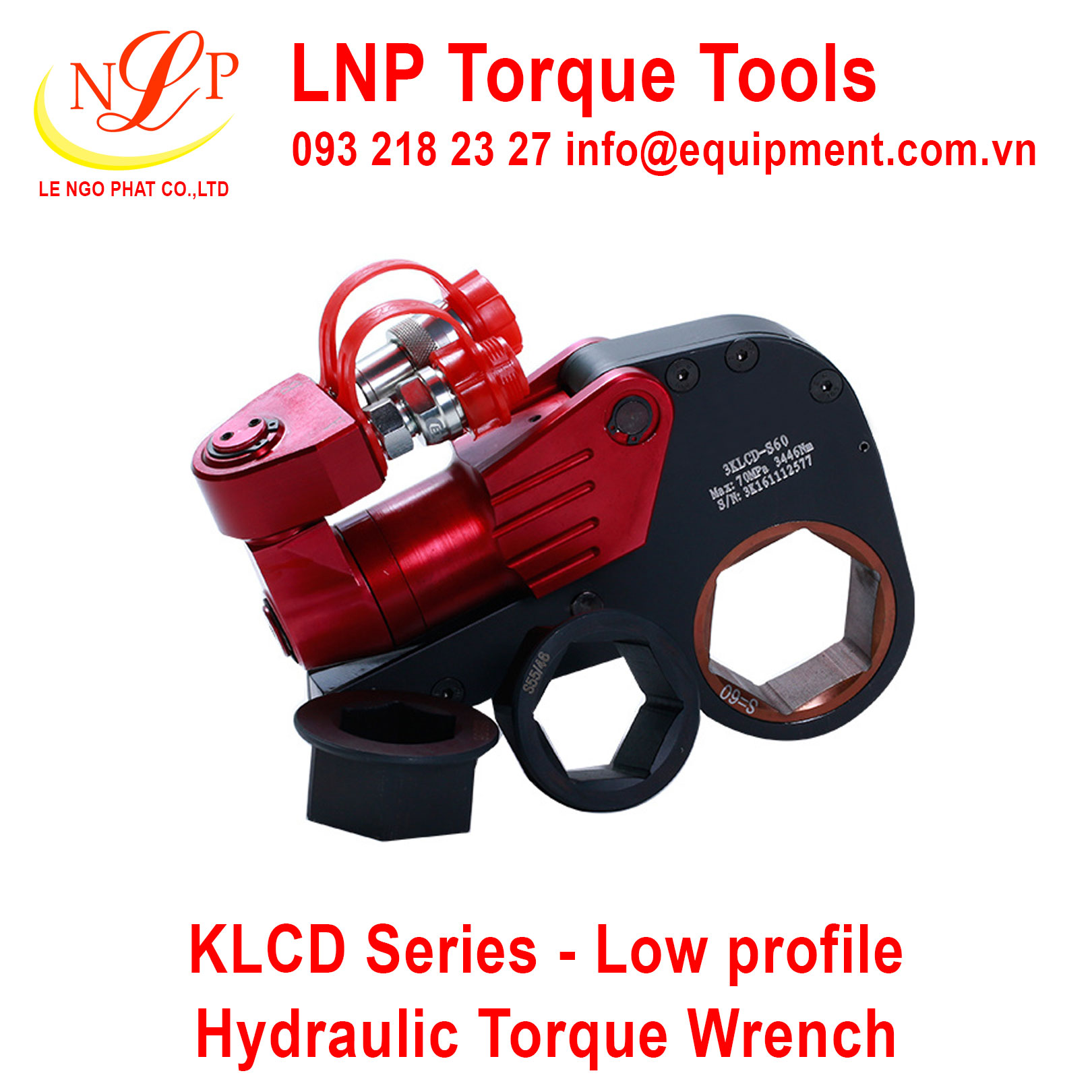

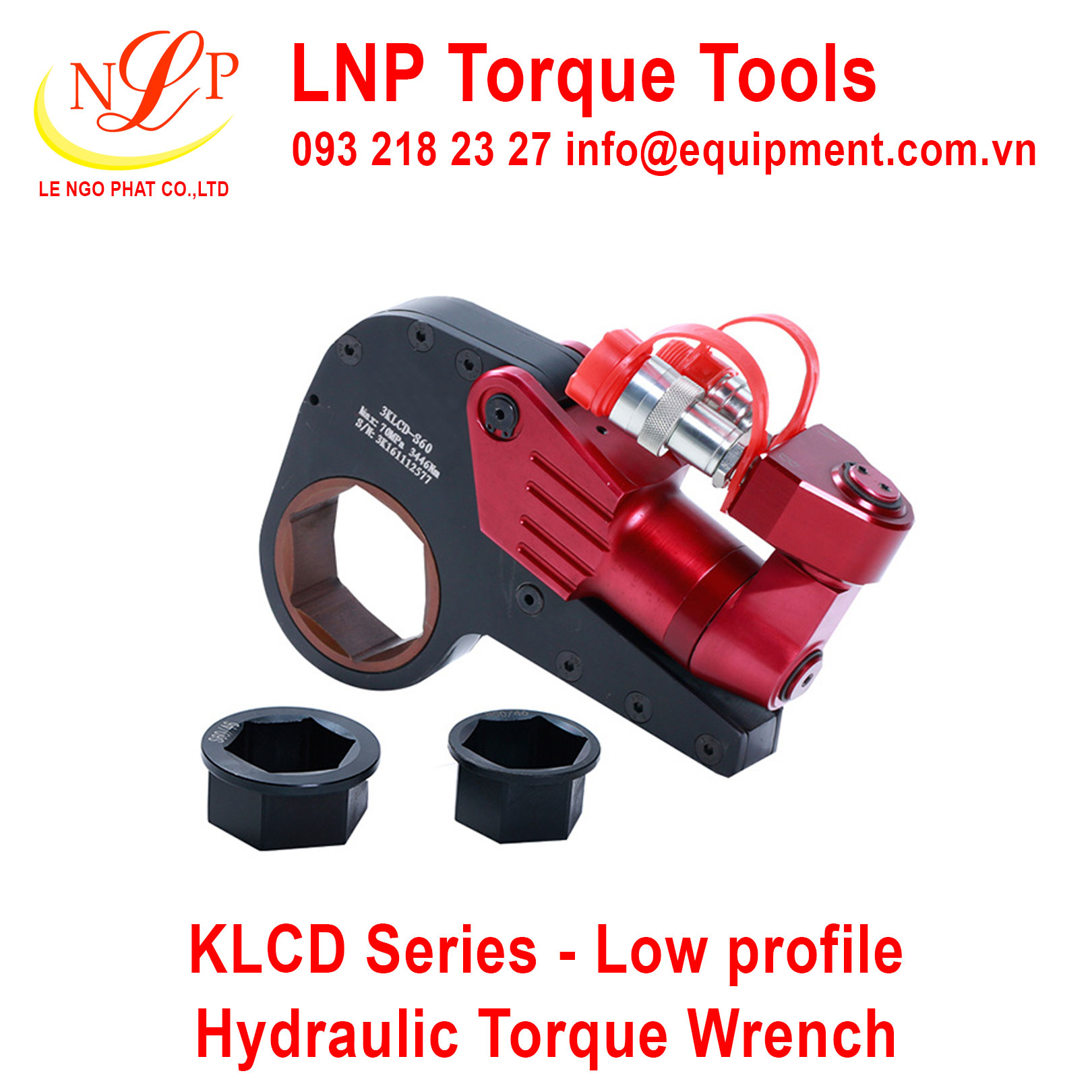

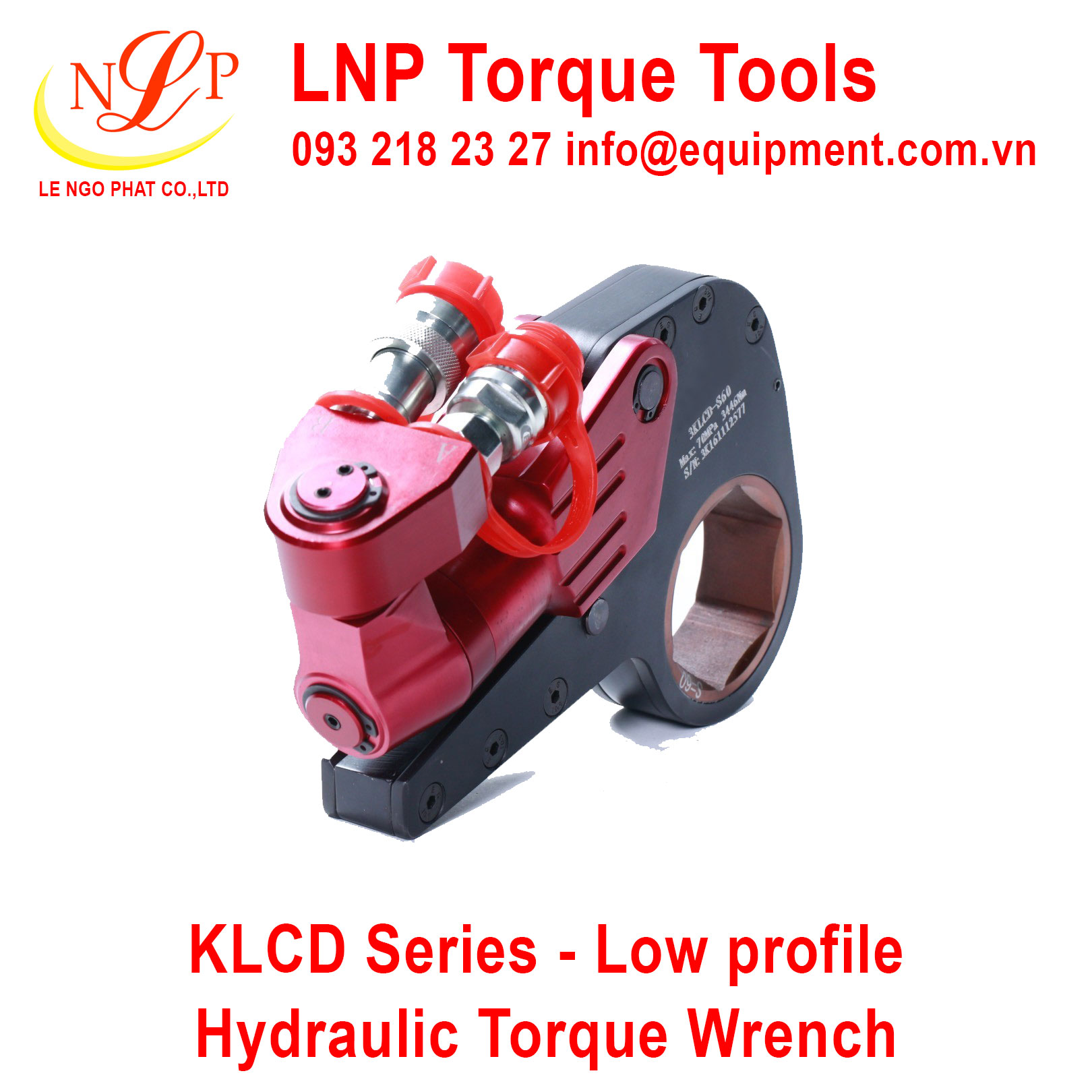

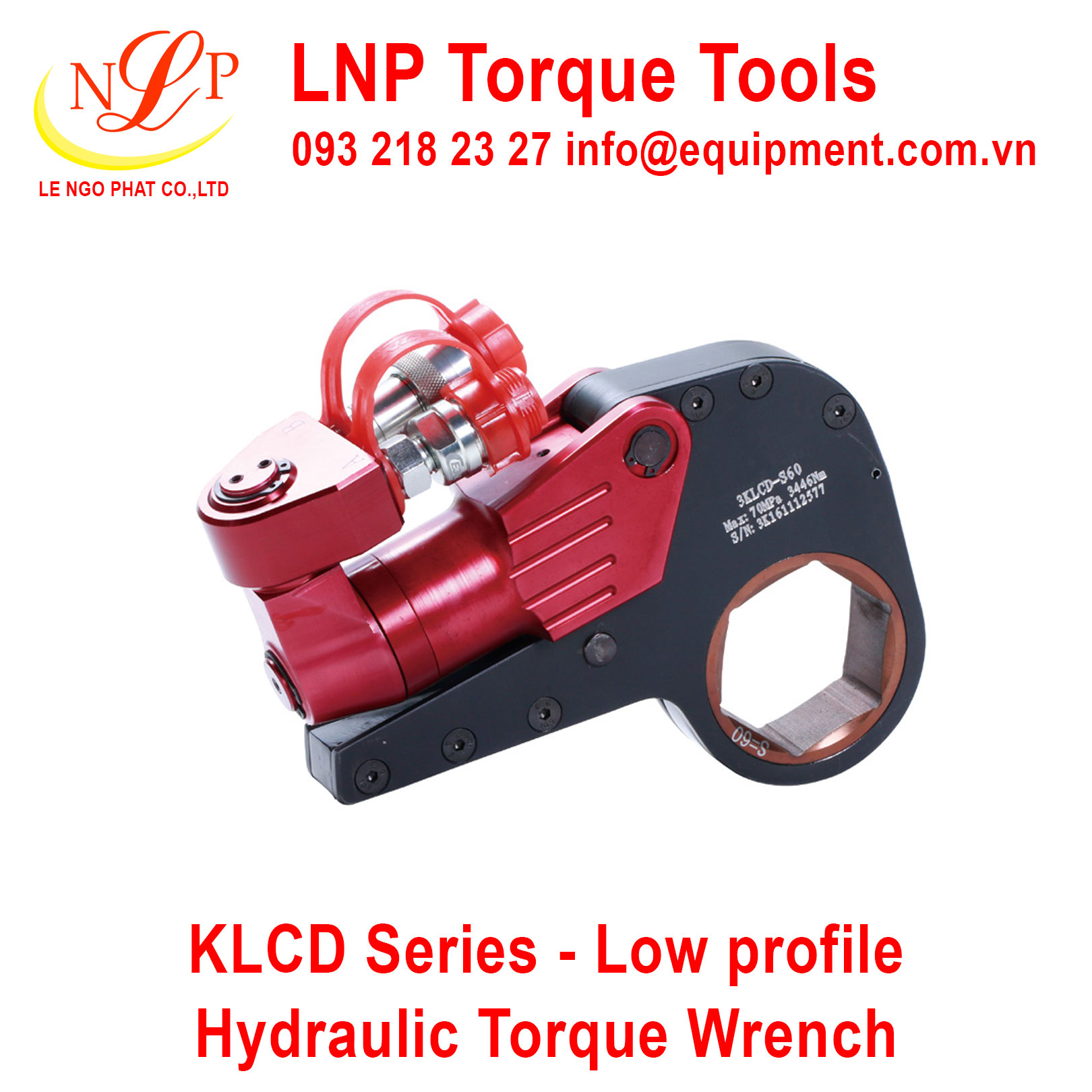

Cờ lê thủy lực đầu tròng LKCD

KLCD series - Low profile hydraulic torque wrench

Model: 2KLCD; 3KLCD; 4KLCD; 8KLCD; 14KLCD; 18KLCD; 20KLCD; 30KLCD; 40KLCD; 45KLCD; 60KLCD

• 70MPa max working pressure
• Torque repeatability up to 3%
• 11 models with the ranges from 237 - 85000 Nm

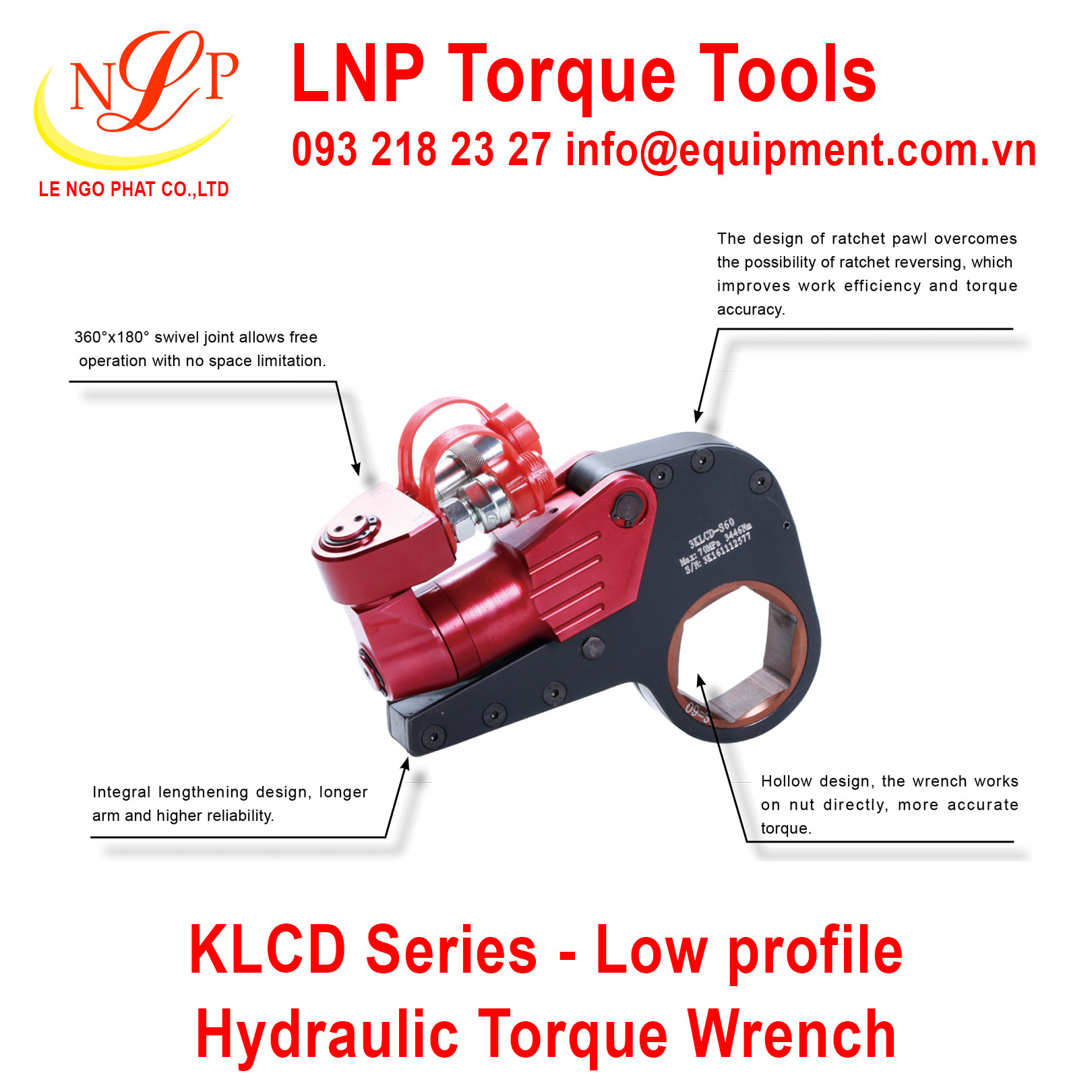

• 360x180 degree swivel joint, no space limitation
• Integral design, high strength and high toughness
• Al-Ti alloy material
• Working head and supporting point are coaxial, perfect structure, long service life
• One power head can match different working heads.

Giá: 0932182327

Mã sản phẩm: CỜ LÊ THỦY LỰC

Model: KLCD Series

Dimensional Drawing:

Technical parameters:

Model	2KLCD	3KLCD	4KLCD	8KLCD	14KLCD	18KLCD	20KLCD	30KLCD	40KLCD	45KLCD	65KLCD
Torque (Nm)	237 2370	345 3446	546 5458	1055 10550	1848 18484	2481 24814	2909 29089	4231 42311	5209 52088	6285 62851	9000 89996
A/F (mm)	36-55	36-60	46-80	70-105	80-115	85-120	90-130	95-145	120-145	130-155	135-180
Power head Weight (kg)	0.8	0.8	1.9	4.2	6.8	8.1	10.5	12.7	15.2	16.3	23
Cassette weight (kg)	1.5	1.7	3.6	7.6	12.2	19.3	22.3	32.3	47.5	58.7	75
L (mm)	192	218	266	324	382	404	427	479	479	486	514
H1 (mm)	105	118	139	171	205	229	240	268	285	311	336
H2 (mm)	147	156	167	198	231	255	265	289	302	352	375
W1 (mm)	32	32	42	53	64	68	70	85	98	105	117
W2 (mm)	50	50	66	83	99	105	110	132	148	160	177
R (mm)	-	31-46	42-62	58-78	67-87	73-93	77-102	83-128	101-130	–	–

1) The KLCD low profile torque wrench adopts an integrated design and is made of aluminum-titanium alloy, which makes it stronger and tougher.

2) The working head and fulcrum of KLCD low profile hydraulic wrench are coaxial, with perfect structure and long service life. One power head can match different working heads.

3) KLCD low profile hydraulic torque wrench can run smoothly under a pressure of 70MPa, and have high accuracy, with a torque repeatability of ±3%. The 360×180 degree rotary joint allows it to be operated more freely in any small space.

4) There are 11 models of TorcStark KLCD low clearance wrench, with a very wide torque range from 237Nm to 85000Nm.

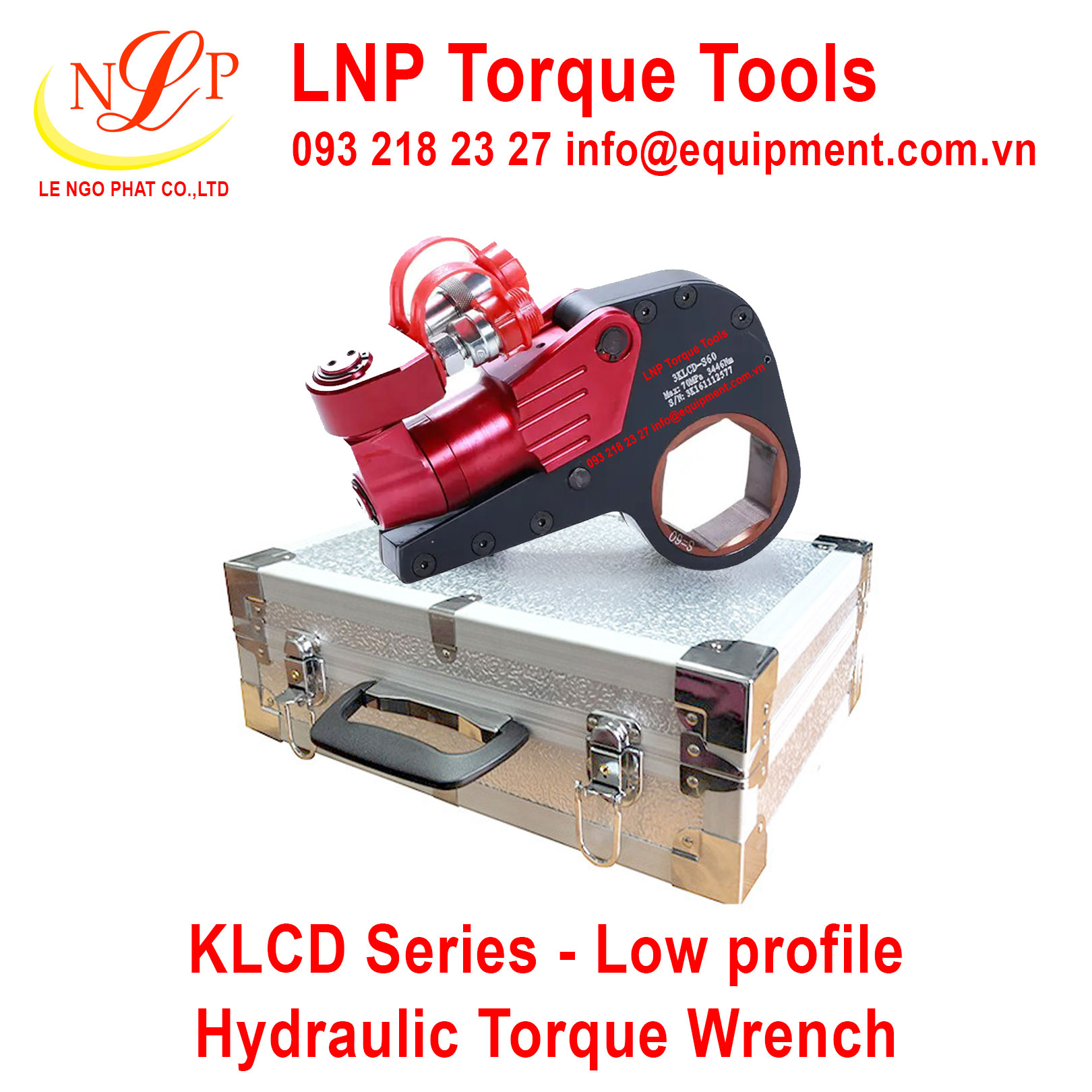

5) KLCD low clearance hydraulic torque wrench are packaged in double layers, with aluminum-plastic boxes and wooden boxes. TorcStark stocks a large number of KLCD wrenches, which can be shipped immediately. The shipping time depends on the shipping method, and the shortest time is 3-5 days. TorcStark provides a one-year product warranty.

The KLCD series is ideal for narrow spaces with relatively small space requirements. Its application industries cover wind power, petrochemical, mining, shipbuilding, power plants, cement plants and other fields.

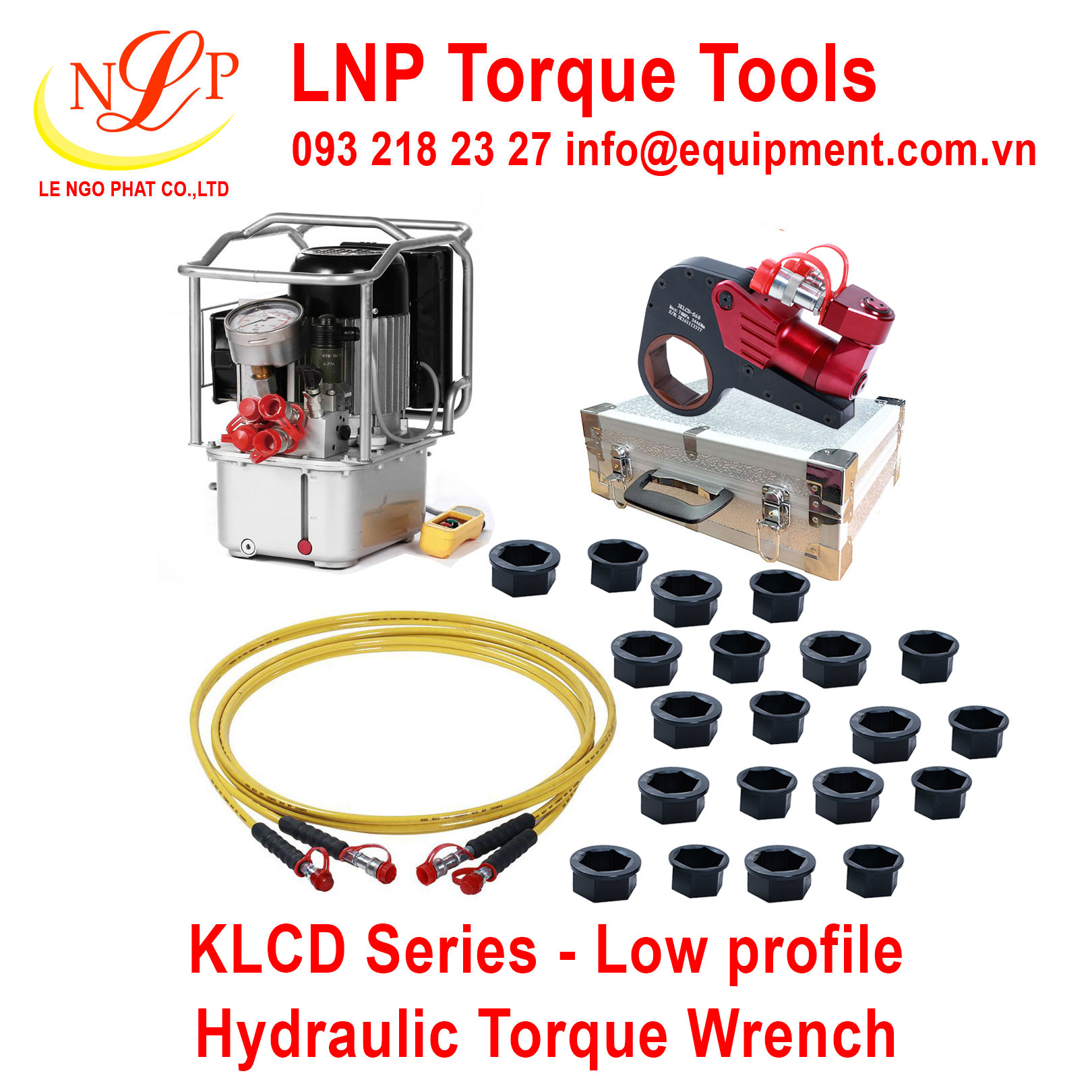

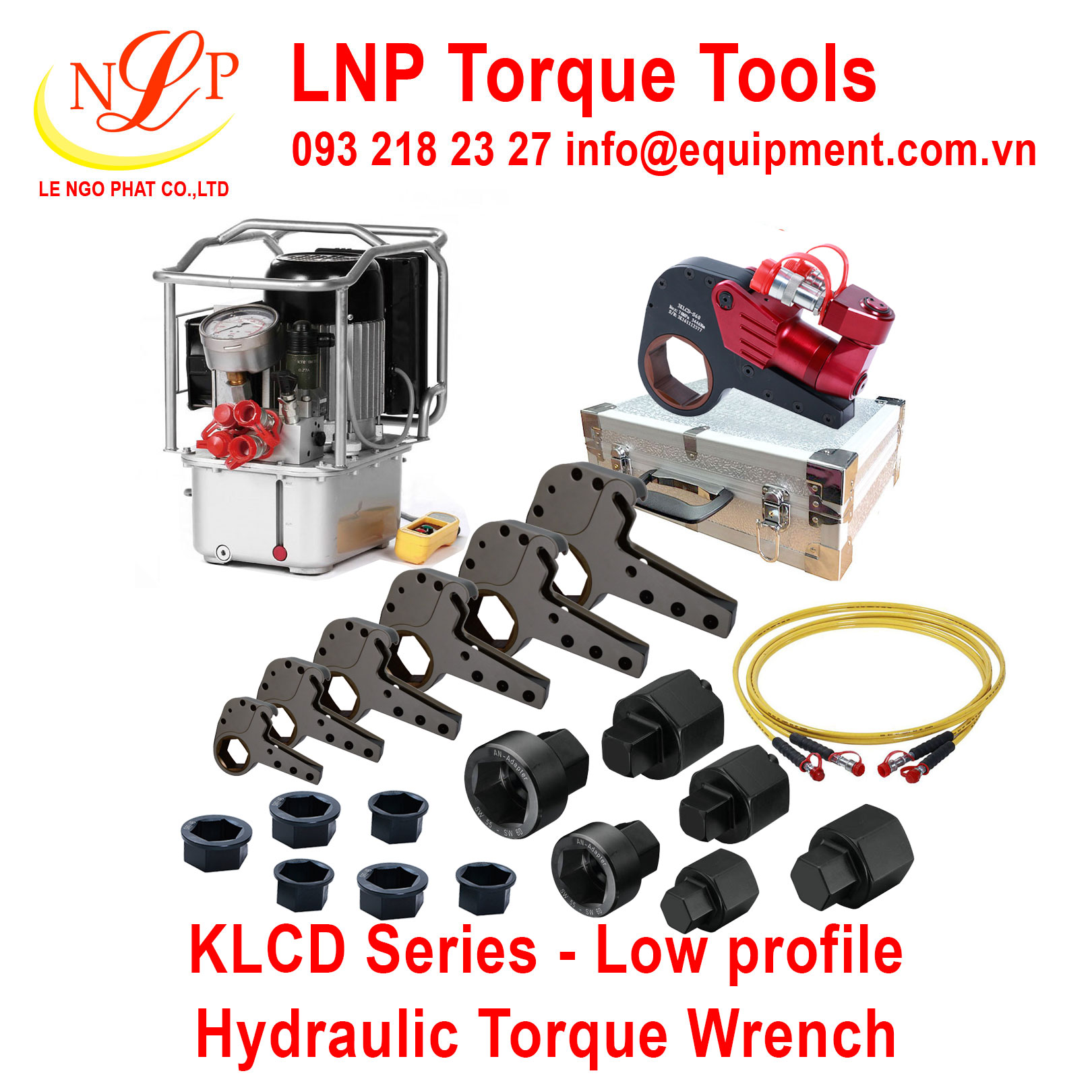

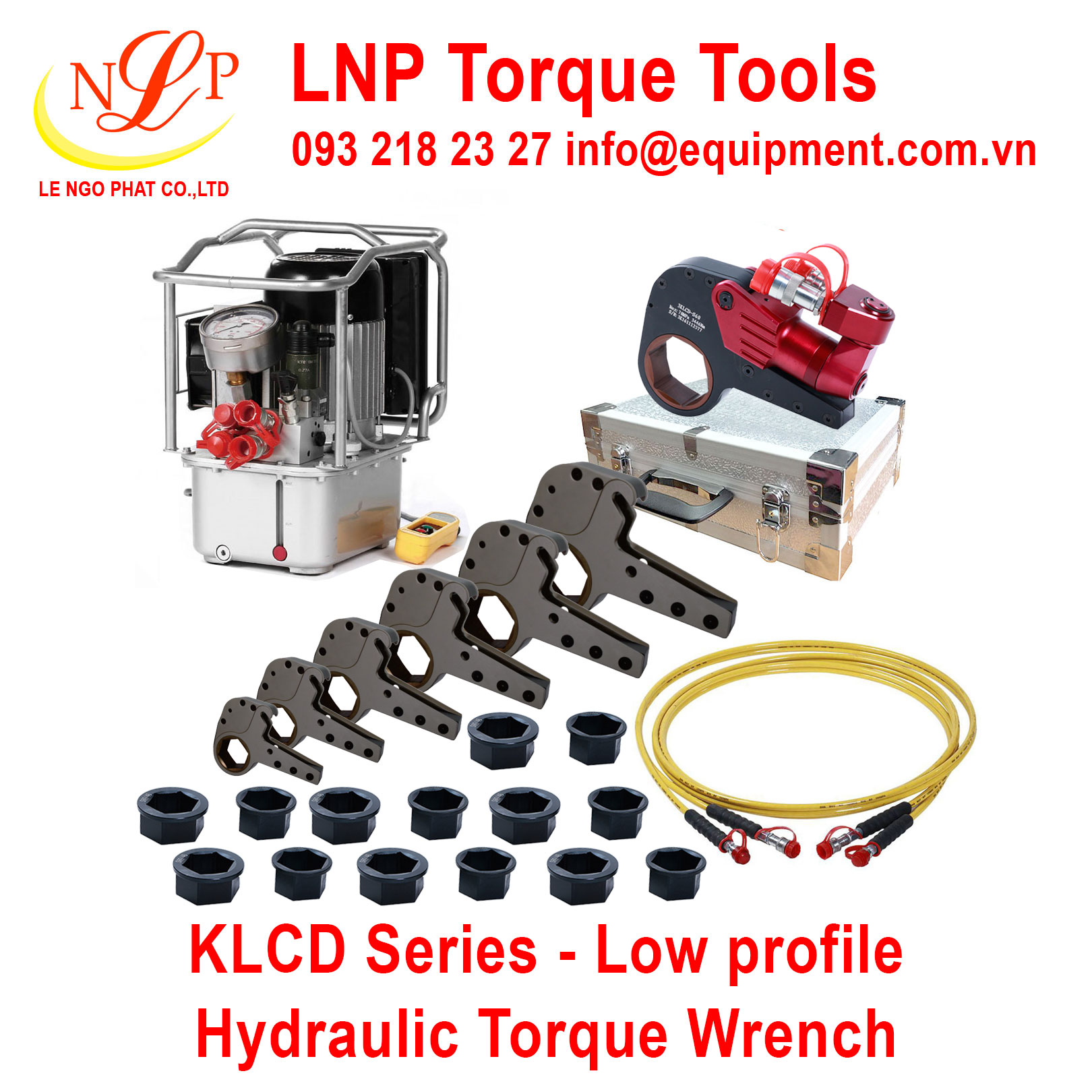

When using the KLCD wrench, it needs to be matched with a hydraulic pump and a hose. For the selection of the hydraulic pump, there are several situations:

1. The SP304 electric pump can be used in the case of alternating current. This pump has three-stage flow and high working efficiency.
2. QMP304 pneumatic pump can be used when there is an air source.
3. The PHG220 gasoline pump can be used when there is neither AC nor air source.

Hose: Usually you can choose a 6-meter hose. If required, TorcStark can provide hoses of 9 meters, 12 meters or longer.

KLCD wrench can be used for flanges of various specifications under DN and ANSI standards. The specific wrench model should be determined according to the size of the bolt and the working space.

When a customer finds a fault in the process of using the wrench, please contact our sales staff first, describe the fault in detail, and take a clear video and picture for our technical staff to judge and analyze. Our technicians will give the perfect solution.

KLCD series wrenches are almost the same as HYTORC’s XLCT series, TORCUP’s TX series, HI FORCE’s TWH-N series, Enerpac’s W series and other wrenches in terms of function, quality, and applicable working conditions. At the same time, TorcStark provides a one-year warranty, more favorable prices, and customized services for special working conditions.
