Cờ lê thủy lực 3MXTD (1”; 436-4364Nm)

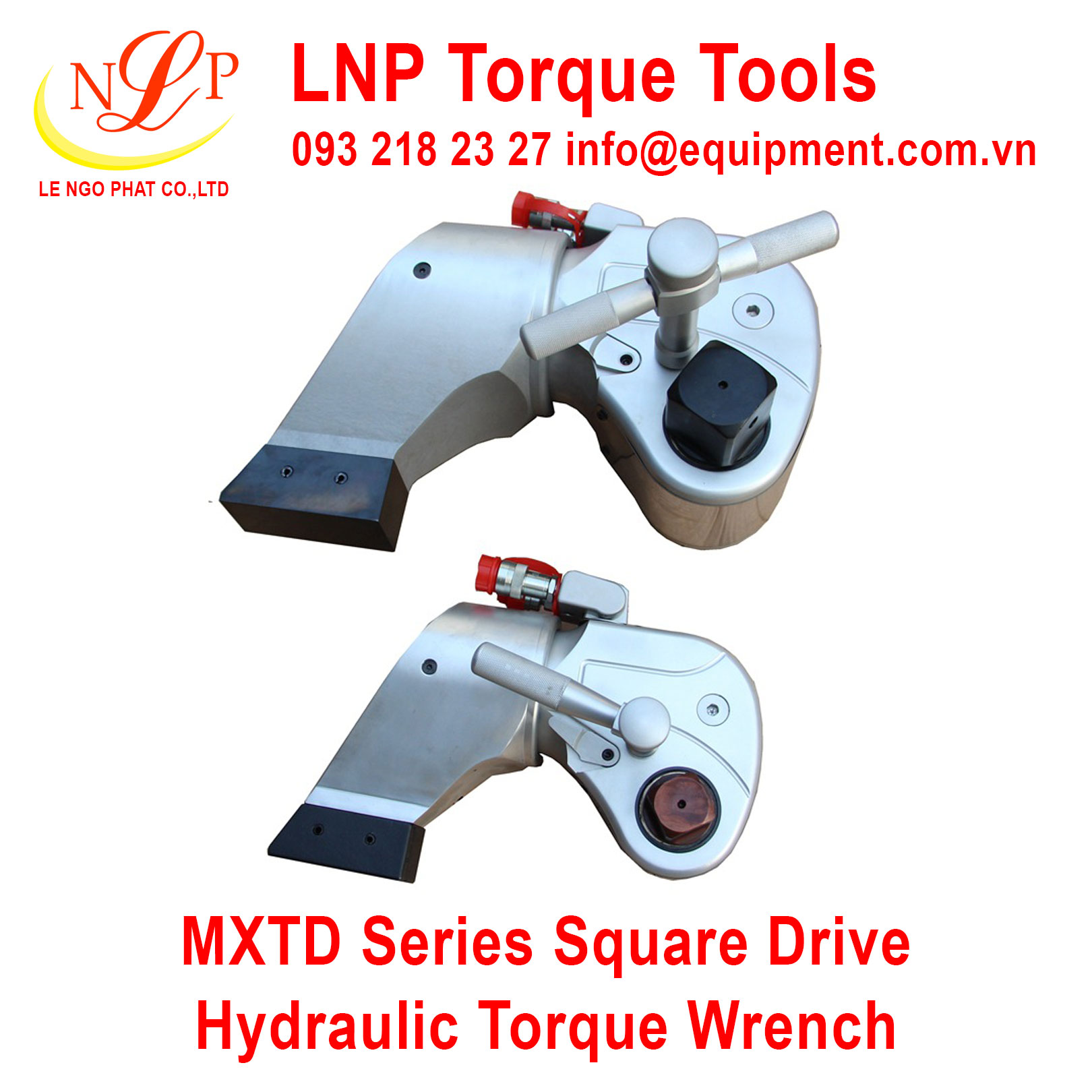

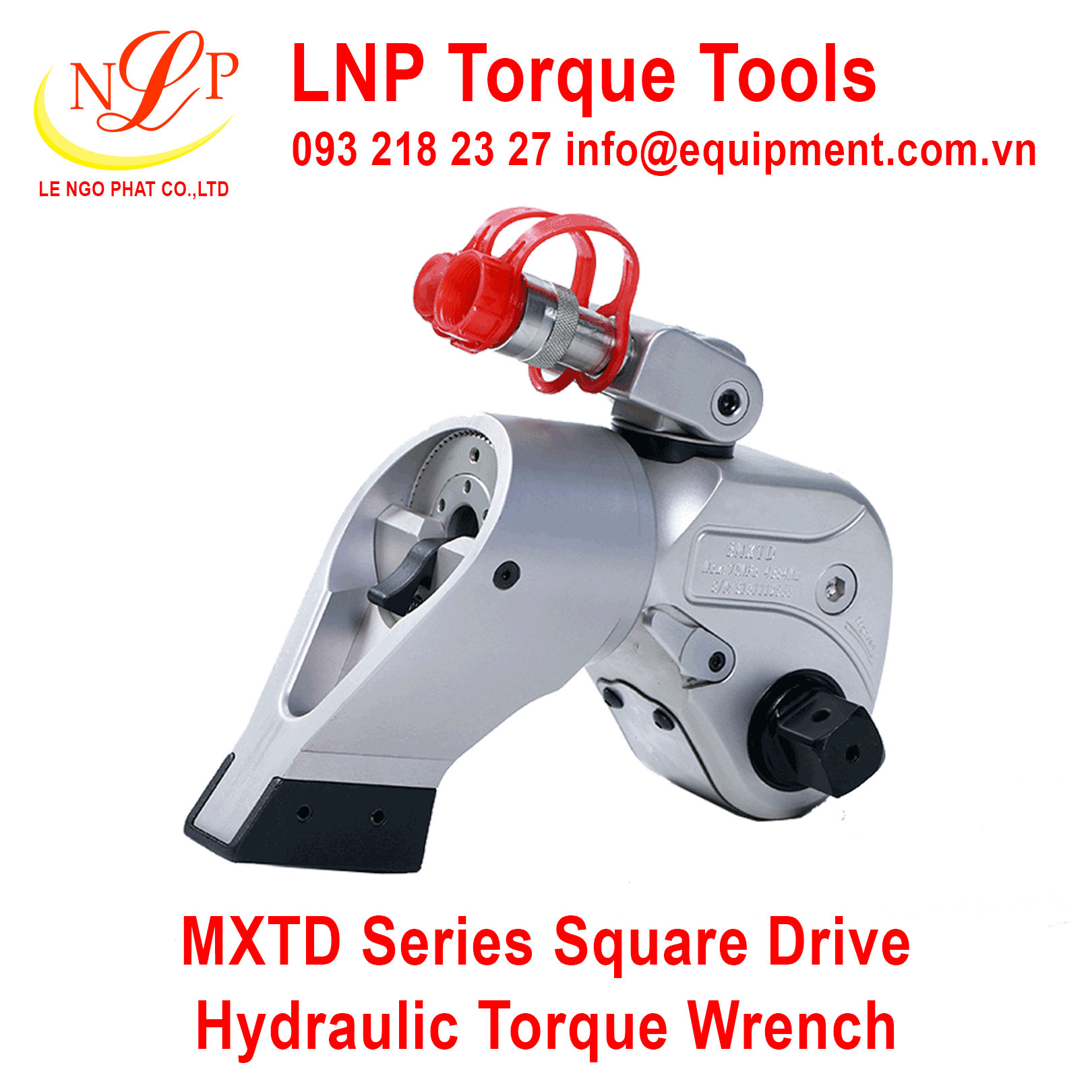

MXTD Series Square Drive Hydraulic Torque Wrench

• Square Drive: 1"
• Torque: 436 - 4364 Nm
• 70MPa max working pressure
• Torque accuracy up to ±3%
• 360X180 degree swivel joint, no space limitation
• 360 degree reaction arm
• Al-Ti alloy material, integrated design
• Square drive and reaction arm can be customized.

Giá: 0932182327

Mã sản phẩm: cờ lê thủy lực

Model: 3MXTD

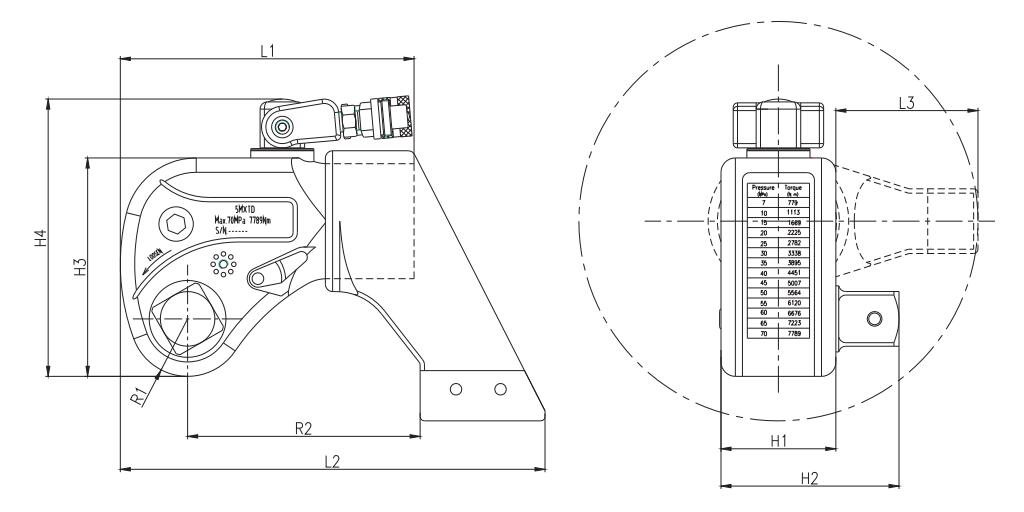

Dimensional Drawing:

Selection Table:

Model	1MXTD	2MXTD	3MXTD	5MXTD	8MXTD	10MXTD	15MXTD	20MXTD	25MXTD	35MXTD	45MXTD	50MXTD	65MXTD	75MXTD	95MXTD
Torque (Nm)	185 1852	302 3017	436 4364	779 7789	1072 10715	1553 15528	2050 20501	2617 26171	3493 34928	4963 49627	5912 59123	7032 70315	8451 84512	10512 105120	14085 140848
Weight (Kg)	2.7	3.6	4.8	8.8	12	14.5	19	25	37.5	44	63	89	66	81	220
L1 (mm)	138	149	168	207	226	250	281	304	331	390	412	418	471	507	520
L2 (mm)	194	213	244	296	326	366	402	442	483	558	570	596	660	729	758
L3 (mm)	63	70	79	99	110	120	132	146	158	177	188	195	204	240	246
H1 (mm)	50	60	70	80	90	100	112	120	138	150	163	166	182	190	210
H2 (mm)	73	87	99	124	133	146	165	183	202	219	229	236	263	291	307
H3 (mm)	96	111	125	152	170	186	208	226	250	282	288	300	348	392	415
H4 (mm)	140	157	165	193	211	227	249	267	291	323	332	366	407	447	473
R1 (mm)	26	29	34	40	46	50	56	60	66	77	80	82	95	108	115
R2 (mm)	107	112	132	162	178	199	218	240	260	298	303	325	345	380	400
Square Drive	3/4”	1”	1”	1 1/2”	1 1/2”	1 1/2”	2”	2 1/2”	2 1/2”	2 1/2”	2 1/2”	3”	3”	3 1/2”	4”

Main Feature:

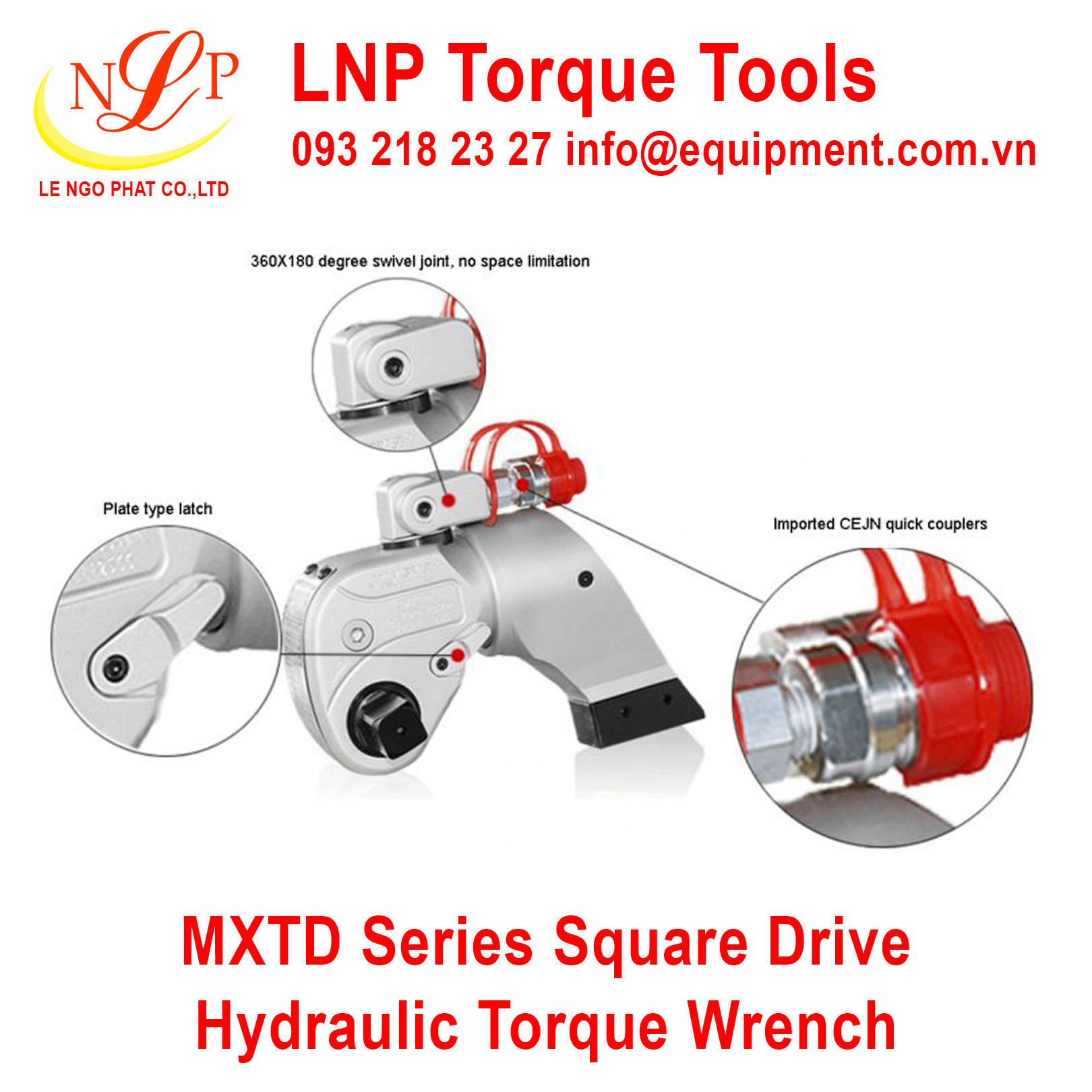

* Imported CEJN quick couplers

* Al-Ti alloy material, integrated design

* 360X180 degree swivel joint, no space limitation

* 360 degree reaction arm

* Square drive design, easy to convert between tightening and loosening.

* Advanced ratchet drive, torque repeatability +/-3%

Notice:

Product reference/part number will vary depending on options chosen.
Torque values will vary depending on bolt diameter, material, working conditions and the requirements of the equipment manufacturer.
The data may vary without notification.
Special specifications of drive axis and counter-acting force arm are customizable.

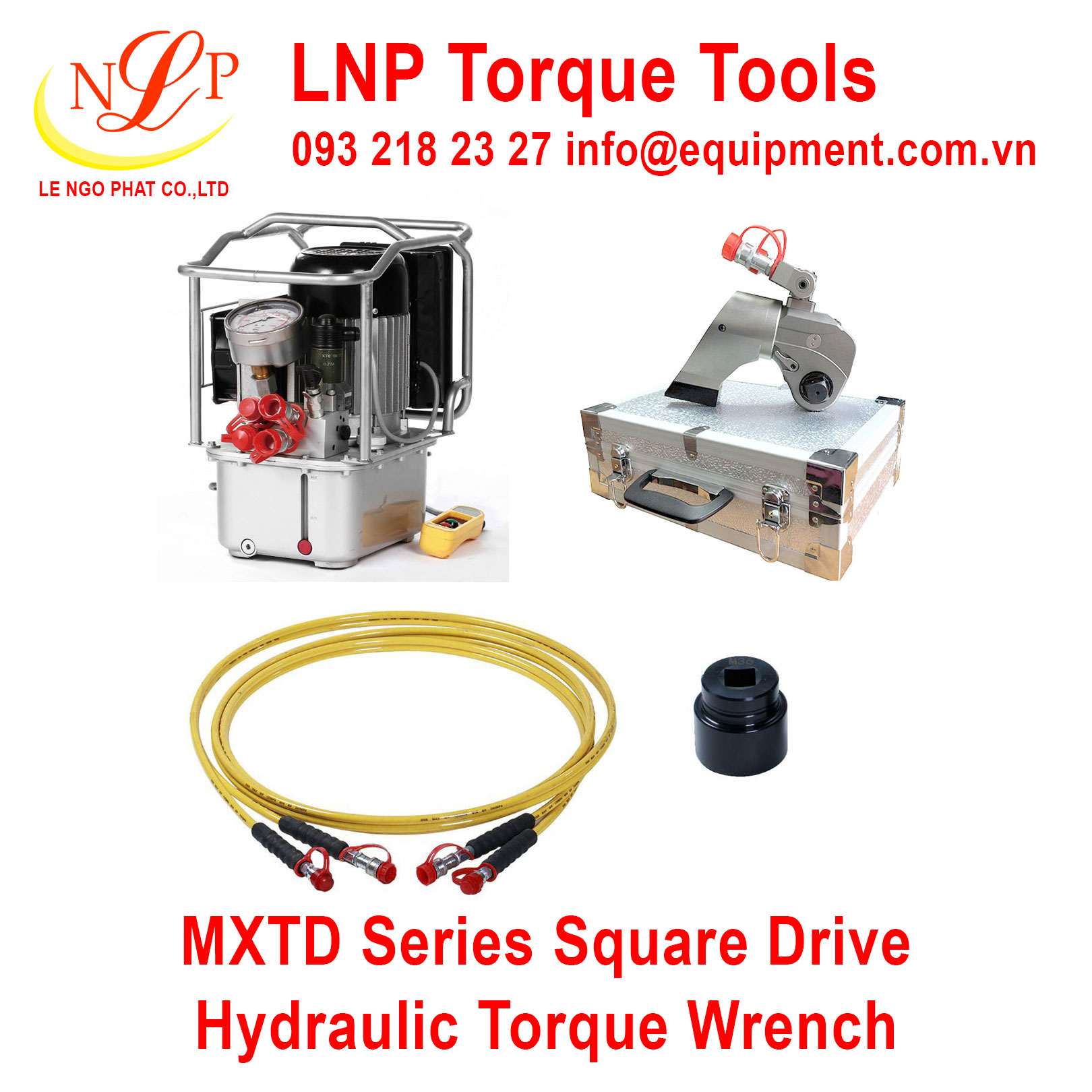

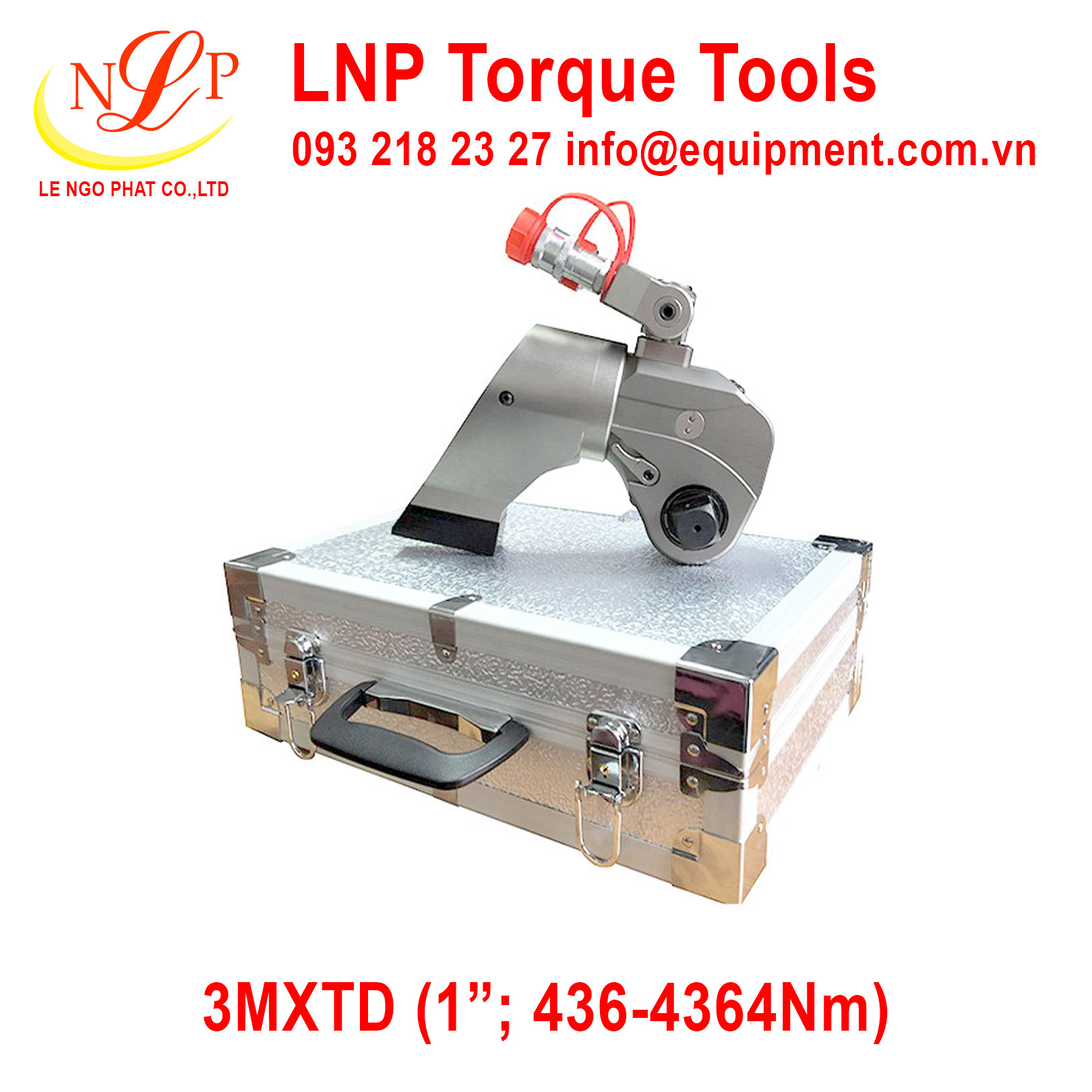

MXTD square drive wrench is double-packed, aluminum-plastic box and wooden box. TorcStark has well-stocked MXTD wrenches that can be shipped immediately. The shipping time depends on the shipping method, and the shortest time is 3-5 days. TorcStark provides a one-year product warranty.

The MXTD series square drive hydraulic torque wrench is a professional hydraulic torque wrench designed by TorcStark to launch into the international market. Aluminum titanium alloy aviation material manufacture, light weight, high strength; MXTD series torque wrench covers from 185-160,000N altogether 11 standard models, and the maximum torque can be extended to 160,000 Nm.

1) MXTD series square drive hydraulic torque wrench is made of aviation aluminum alloy material. Its quality and durability are well guaranteed. The one-piece design makes it more widely used and more adaptable.

2) MXTD square drive torque wrench adopts advanced precision ratchet drive. The torque output accuracy is higher, and the maximum output repetitive torque is ±3%. The maximum working pressure is 70MPa, and it has 12 models with torque from 185Nm to 160000Nm. It is the product with the most complete specifications and the widest bolt coverage of TorcStark.

3) MXTD square torque wrench has a 360° x180° rotary tubing joint, which has a wide range of applications. The 360° x180 ° trigger lock can place the 360° fine-tuning reaction arm on any fulcrum. The direct-push drive shaft design can quickly switch between tightening and disassembly states, and the locking drive shaft can be customized according to your requirements.

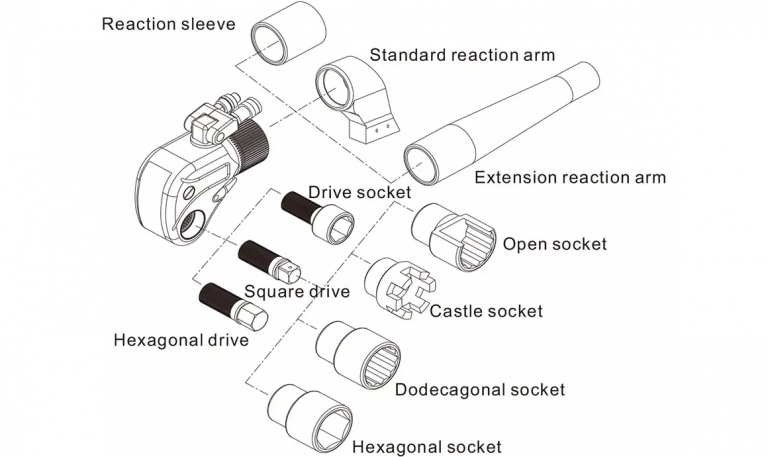

4) The square head size of the MXTD square drive hydraulic wrench is 3/4”-4”. It can be used with TorcStark’s special square drive socket and can be applied to bolts of various specifications.
