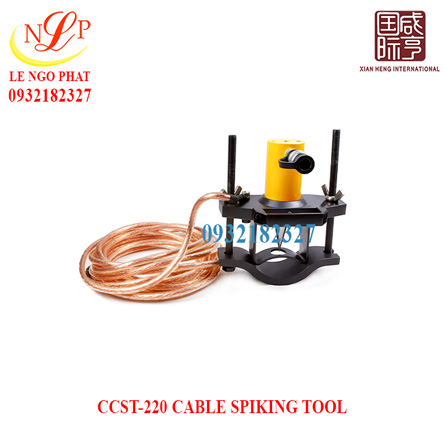

CCST-220 CABLE SPIKING TOOL

Technical Data:

1. Model: CCST-220
2. Output Force: 15T
3. Rated Pressure: 700bar
4. Puncturing diameter: Max. Ø135mm
5. Puncturing depth: 55mm
6. Weight: 10kg
7. Packing: Steel Case

Features:
1. The cable spiking tool has a 15T oil cylinder, strong puncture force.
2. Puncture results can be directly observed.
3. With Alloy steel puncture cone, can be used repeatedly.
4. The cable puncturing tool is powered by hand or electric insulated hydraulic pump.
5. Easy operation, fine puncture effects.
6. The cable puncturing and spiking device can be used with insulated cutter.

7. Working with hydraulic pump

Technical Data:

1. Model: CCST-220
2. Output Force: 15T
3. Rated Pressure: 700bar
4. Puncturing diameter: Max. Ø135mm
5. Puncturing depth: 55mm
6. Weight: 10kg
7. Packing: Steel Case

Features:
1. The cable spiking tool has a 15T oil cylinder, strong puncture force.
2. Puncture results can be directly observed.
3. With Alloy steel puncture cone, can be used repeatedly.
4. The cable puncturing tool is powered by hand or electric insulated hydraulic pump.
5. Easy operation, fine puncture effects.
6. The cable puncturing and spiking device can be used with insulated cutter.

7. Working with hydraulic pump
