B-RAD OFFSET 2000-2

Offset Battery Torque Wrenches
B-RAD OFFSET 2000-2
Tool Model: B-RAD OFFSET 2000-2
Part No.201030
• TORQUE RANGE: 400 - 2000 Nm
• SPEED: 19 RPM
• WEIGHT: 4,9 Kg with battery, excluding reaction arm and impact socket
• SQUARE DRIVE: 1 inch square drive
• BATTERY: Two 18V Li-ion batteries 5.2 Amp/93 Wh
• NOISE LEVEL: Maximum 65 dB
• TORQUE SETTING: Steps of 10Nm or ft. lbs
• REPEATABILITY ON SAME JOINT *: +/- 3%.
  * Test results from RAD’s certificated calibration lab

Giá: 0932182327

Mã sản phẩm: SÚNG SIẾT ỐC BULONG DÙNG PIN

Model: 400 – 2000 Nm

Kết nối facebook Kết nối Youtube Kết nối Google + Kết nối Twitter Kết nối Intagrams Kết nối Pinterest

B-RAD OFFSET BATTERY SERIES
Torque range: 50 – 7.000 Nm

Heavy duty industries like windpower and oil & gas need powerful and reliable solutions. RAD’s proven gearbox technology combined with the latest battery technology has resulted in the B-RAD OFFSET Series.

Part
No.		 Model Square
drive		 Torque range Speed

Noise
Level
Inch Nm RPM DBA
201024 B-RAD OFFSET 275 ½" 50 - 270 Nm 47 65
201026 B-RAD OFFSET 700 ¾" 170 - 700 Nm 21 65
201027 B-RAD OFFSET 1400 ¾" 300 - 1.400 Nm 10 65
201028 B-RAD OFFSET 1400-2 ¾" 300 - 1.400 Nm 71 65
201029 B-RAD OFFSET 2000 1" 400 - 2.000 Nm 6 65
201030 B-RAD OFFSET 2000-2 1" 400 - 2.000 Nm 19 65
201031 B-RAD OFFSET 4000 1" 800 - 4.000 Nm 3 65
201032 B-RAD OFFSET 4000-2 1" 800 - 4.000 Nm 19 65
201033 B-RAD OFFSET 7000 1,5" 1.400 - 7.000 Nm 2 65

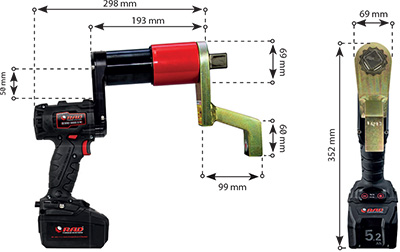

Part
No.		 Model Square
drive		 Weight Dim. A Dim. B Dim. C Dim. D
201024 B-RAD OFFSET 275 ½" 3,2 Kg 110 mm 63 mm 50 mm 352 mm
201026 B-RAD OFFSET 700 ¾" 3,5 Kg 126 mm 63 mm 50 mm 352 mm
201027 B-RAD OFFSET 1400 ¾" 3,5 Kg 126 mm 63 mm 50 mm 352 mm
201028 B-RAD OFFSET 1400-2 ¾" 4,3 Kg 174 mm 63 mm 50 mm 352 mm
201029 B-RAD OFFSET 2000 1" 4,0 Kg 139 mm 69 mm 50 mm 352 mm
201030 B-RAD OFFSET 2000-2 1" 4,9 Kg 193 mm 69 mm 50 mm 352 mm
201031 B-RAD OFFSET 4000 1" 6,0 Kg 180 mm 81 mm 50 mm 356 mm
201032 B-RAD OFFSET 4000-2 1" 6,7 Kg 232 mm 81 mm 50 mm 356 mm
201033 B-RAD OFFSET 7000 1,5" 9,3 Kg 190 mm 95 mm 50 mm 362 mm

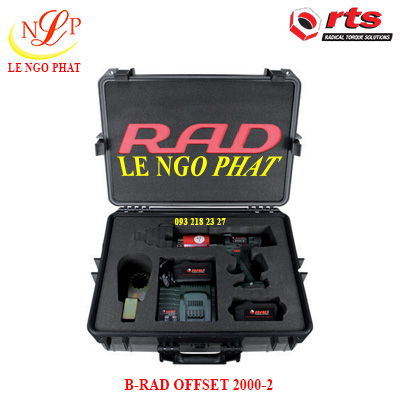

TOOL KIT INCLUDING:

  • B-RAD OFFSET 2000-2
  • Standard reaction arm (PN: 14213)
  • Two retaining rings (PN: 17367)
  • Two batteries with quick charger
  • Calibration certificate
  • Usermanual
  • Safety instructions on USB stick
  • Weatherproof storage case.



These battery powered torque wrenches fit where standard wrenches cannot be used. The B-RAD OFFSET is based on the standard B-RAD SELECT series and have all the features that make these tools so popular and user-friendly. With one major difference, the torque multipliers are placed in an offset position, so that the wrench can be used better to tighten bolts in tight and difficult to reach spaces.

The number of cycles per battery is depending on stud length, lubrication, temperature and torque setting.

  • Available in single and automatic 2-speed gearbox
  • Low battery warning to prevent torque output reduction
  • Controlled bolting – repeatability of +/- 3%
  • Extremely low noise level – only 65 dB
  • Automatic reaction arm release
  • Possibility to set torque in 1-50 levels instead of torque settings
  • Lithium-ion 18V / 5.2 Ah and 8.0 Ah battery technology
  • Optional:

B-RAD OFFSET tools include:

  • Reaction arm and retaining ring
  • 2 Lithium-ion 18V/5.2 Ah batteries with charger (For the B-RAD OFFSET 4000 & 7000: 1x 5.2 Ah and 1x 8.0 Ah)
  • Weatherproof storage case
  • User manual
  • Calibration certificate

Optional 8.0 Ah LiHD high-performance battery pack

The combination of new high-performance battery cells and completely newly developed electronic components in the pack ensure that maximum power remains available for a longer time. So you can now tighten even more bolts compared to the already impressive performing 5.2 Ah batteries.

Unfortunately, because of the increased power output, it is not possible to airfreight the 8.0 Ah battery due to IATA restrictions. These restrictions do not apply to sea and overland transport. Therefore RAD’s battery powered torque wrenches will not be equipped as standard with the LiHD 8.0 Ah battery pack but with the current 5.2 Ah battery pack.

Part number 8.0 Ah LiHD battery pack: 200473

SUITABLE REACTION ARMS FOR B-RAD OFFSET 2000-2:

Standard
PN: 14213

 Deep socket
PN: 18480

Double ended
PN: 19094

Blank
PN: 17888

 Double ended blank
PN: 19093

Safety sliding
PN: 25242

Từ khóa: B-RAD OFFSET 275, B-RAD OFFSET 700, B-RAD OFFSET 1400, B-RAD OFFSET 1400-2, B-RAD OFFSET 2000, B-RAD OFFSET 2000-2, B-RAD OFFSET 4000, B-RAD OFFSET 4000-2, B-RAD OFFSET 7000
