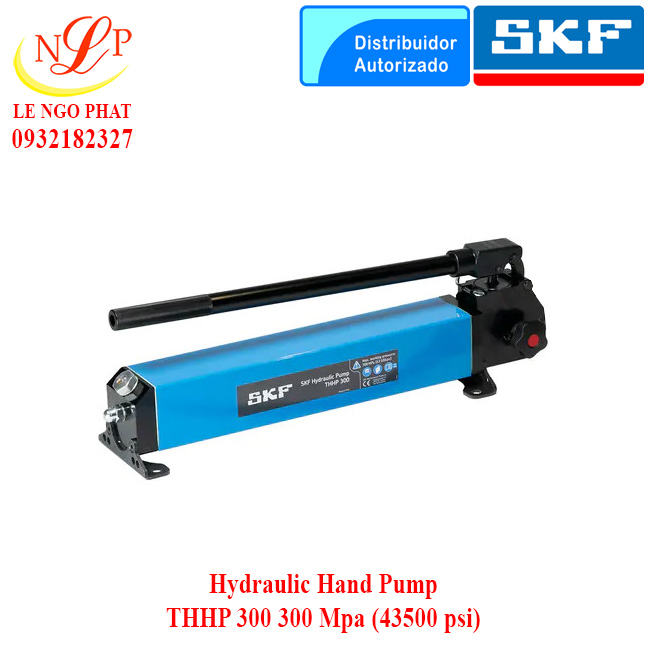

Bơm thủy lực 3000 Bar SKF THHP 300
THHP 300 Hydraulic Hand Pump 300 Mpa (43500 psi)
Designation: THHP 300
Description: Hand operated high pressure pump, 300 MPa (43 500 psi), complete in case
Maximum pressure: 300 MPa (43 500 psi)
Volume per stroke 1st Stage: 40 cm3 (2.43 in.3) – below 1.6 MPa (232 psi)
Volume per stroke 2nd Stage: 0.5 cm3 (0.03 in.3) – above 1.6 MPa (232 psi)
Oil reservoir capacity: 1.8 litres (110 in.3) / 1.6 litres (97.6 in.3 ) usable
Main dimensions of the pump (without hose and gauge): 574 x 130 x 200 mm ( 22.6 x 5.1 x 7.9 in.)
Dimensions of the carrying case: 800 x 318 x 380 mm (31.5 x 12.5 x 15.0 in.)
Weight of the pump: 7.5 kg (16.5 lb)
Weight of the full carrying case: 22 kg (48.5 lb)
TECHNICAL DATA THHP 300:
| Designation | THHP 300 |
| Description | Hand operated high pressure pump, 300 MPa (43 500 psi), complete in case |
| Maximum pressure | 300 MPa (43 500 psi) |
| Volume per stroke 1st Stage | 40 cm3 (2.43 in.3) – below 1.6 MPa (232 psi) |
| Volume per stroke 2nd Stage | 0.5 cm3 (0.03 in.3) – above 1.6 MPa (232 psi) |
| Oil reservoir capacity | 1.8 litres (110 in.3) / 1.6 litres (97.6 in.3 ) usable |
| Main dimensions of the pump (without hose and gauge) | 574 x 130 x 200 mm ( 22.6 x 5.1 x 7.9 in.) |
| Weight of the pump | 7.5 kg (16.5 lb) |

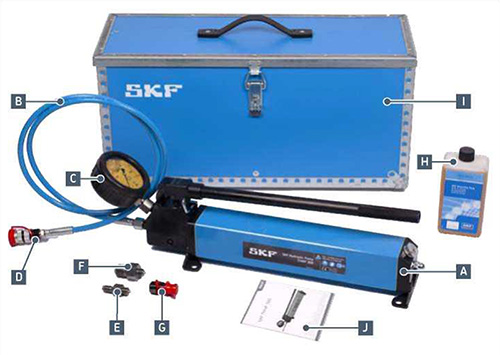

THHP 300 SCOPE OF DELIVERY:
| Description | Designation |
| Hydraulic pump | THHP 300 |
| Pressure gauge | 1077589 |
| Protection sleeve for pressure gauge | TMJG 100S |
| High pressure hose | THHP 300-2H |
| Quick connection coupling | THPC 300-1 |
| Connection nipple M16 (m) - G1/4 (m) | THPN M16G1/4 |
| Connection nipple M16 (m) - G3/4 (m) | THPN M16G3/4 |
| Quick connection nipple | THPN 300-1 |
| Mounting fluid (1 litre) | LHMF 300/1 |
| Carrying case | THHP 300-9 |
TECHNICAL DATA THHP 300:
| Designation | THHP 300 |
| Description | Hand operated high pressure pump, 300 MPa (43 500 psi), complete in case |
| Maximum pressure | 300 MPa (43 500 psi) |
| Volume per stroke 1st Stage | 40 cm3 (2.43 in.3) – below 1.6 MPa (232 psi) |
| Volume per stroke 2nd Stage | 0.5 cm3 (0.03 in.3) – above 1.6 MPa (232 psi) |
| Oil reservoir capacity | 1.8 litres (110 in.3) / 1.6 litres (97.6 in.3 ) usable |
| Pressure gauge | 0-300 MPa (0-43 500 psi) |
| Diameter 100 mm (4 in.) | |
| Accuracy 1% of full scale | |
| Hose length | 2 m (78 in.) |
| Hose connection threads: | G1/4 female to pump |
| M16 male thread with special sealing design to attach to the quick connection coupling. | |
| Maximum torque for M16 thread | 40-50 Nm / (29.5-36.9 ft-lb) |
| Main dimensions of the pump (without hose and gauge) | 574 x 130 x 200 mm ( 22.6 x 5.1 x 7.9 in.) |
| Dimensions of the carrying case | 800 x 318 x 380 mm (31.5 x 12.5 x 15.0 in.) |
| Weight of the pump | 7.5 kg (16.5 lb) |
| Weight of the full carrying case | 22 kg (48.5 lb) |
ACCESSORIES:
| Designation | Description |
| THPN M16G1/8 | Nipple M16x1.5 cone male, G1/8 male, 300 MPa (43 500 psi) |
| THPN M16G3/8 | Nipple M16x1.5 cone male, G3/8 male, 400 MPa (58 000 psi) |
| THPN M16G1/2 | Nipple M16x1.5 cone male, G1/2 male, 400 MPa (58 000 psi) |
| LHMF 300/5 | Mounting fluid (5 litre) |
| LHDF 900/5 | Dismounting fluid (5 litre) |
| THHP 300-2H/3 | High pressure hose, 300 MPa (43 500 psi), M16x1.5 cone male, G1/4 female, 3 m (9.8 ft.) |
| THHP 300-2H/4 | High pressure hose, 300 MPa (43 500 psi), M16x1.5 cone male, G1/4 female, 4 m (13.1 ft.) |
SPARE PARTS:
| Designation | Description |
| THHP 300-1 | Assembly of hand operated high pressure pump body and pressure gauge 1077589, 300 MPa (43 500 psi) |
| THHP 300-2H | High pressure hose, 300 MPa (43 500 psi), M16x1.5 cone male, G1/4 female, 2 m (6.5 ft.) |
| 1077589 | Pressure gauge (0-300 MPa/ 43500psi) |
| TMJG 100S | Pressure gauge protection sleeve |
| THPN M16G1/4 | Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi) |
| THPN M16G3/4 | Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi) |
| THPC 300-1 | Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi) |
| THPN 300-1 | Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi) |
| LHMF 300/1 | Mounting fluid (1 litre) |
| THHP 300-9 | Tool case (empty) for THHP 300 |
| THHP 300-3 | Repair kit for THHP 300 pump |
THHP 300 SCOPE OF DELIVERY:
| Description | Designation |
| Hydraulic pump | THHP 300 |
| Pressure gauge | 1077589 |
| Protection sleeve for pressure gauge | TMJG 100S |
| High pressure hose | THHP 300-2H |
| Quick connection coupling | THPC 300-1 |
| Connection nipple M16 (m) - G1/4 (m) | THPN M16G1/4 |
| Connection nipple M16 (m) - G3/4 (m) | THPN M16G3/4 |
| Quick connection nipple | THPN 300-1 |
| Mounting fluid (1 litre) | LHMF 300/1 |
| Carrying case | THHP 300-9 |
TECHNICAL DATA THHP 300:
| Designation | THHP 300 |
| Description | Hand operated high pressure pump, 300 MPa (43 500 psi), complete in case |
| Maximum pressure | 300 MPa (43 500 psi) |
| Volume per stroke 1st Stage | 40 cm3 (2.43 in.3) – below 1.6 MPa (232 psi) |
| Volume per stroke 2nd Stage | 0.5 cm3 (0.03 in.3) – above 1.6 MPa (232 psi) |
| Oil reservoir capacity | 1.8 litres (110 in.3) / 1.6 litres (97.6 in.3 ) usable |
| Pressure gauge | 0-300 MPa (0-43 500 psi) |
| Diameter 100 mm (4 in.) | |
| Accuracy 1% of full scale | |
| Hose length | 2 m (78 in.) |
| Hose connection threads: | G1/4 female to pump |
| M16 male thread with special sealing design to attach to the quick connection coupling. | |
| Maximum torque for M16 thread | 40-50 Nm / (29.5-36.9 ft-lb) |
| Main dimensions of the pump (without hose and gauge) | 574 x 130 x 200 mm ( 22.6 x 5.1 x 7.9 in.) |
| Dimensions of the carrying case | 800 x 318 x 380 mm (31.5 x 12.5 x 15.0 in.) |
| Weight of the pump | 7.5 kg (16.5 lb) |
| Weight of the full carrying case | 22 kg (48.5 lb) |
ACCESSORIES:
| Designation | Description |
| THPN M16G1/8 | Nipple M16x1.5 cone male, G1/8 male, 300 MPa (43 500 psi) |
| THPN M16G3/8 | Nipple M16x1.5 cone male, G3/8 male, 400 MPa (58 000 psi) |
| THPN M16G1/2 | Nipple M16x1.5 cone male, G1/2 male, 400 MPa (58 000 psi) |
| LHMF 300/5 | Mounting fluid (5 litre) |
| LHDF 900/5 | Dismounting fluid (5 litre) |
| THHP 300-2H/3 | High pressure hose, 300 MPa (43 500 psi), M16x1.5 cone male, G1/4 female, 3 m (9.8 ft.) |
| THHP 300-2H/4 | High pressure hose, 300 MPa (43 500 psi), M16x1.5 cone male, G1/4 female, 4 m (13.1 ft.) |
SPARE PARTS:
| Designation | Description |
| THHP 300-1 | Assembly of hand operated high pressure pump body and pressure gauge 1077589, 300 MPa (43 500 psi) |
| THHP 300-2H | High pressure hose, 300 MPa (43 500 psi), M16x1.5 cone male, G1/4 female, 2 m (6.5 ft.) |
| 1077589 | Pressure gauge (0-300 MPa/ 43500psi) |
| TMJG 100S | Pressure gauge protection sleeve |
| THPN M16G1/4 | Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi) |
| THPN M16G3/4 | Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi) |
| THPC 300-1 | Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi) |
| THPN 300-1 | Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi) |
| LHMF 300/1 | Mounting fluid (1 litre) |
| THHP 300-9 | Tool case (empty) for THHP 300 |
| THHP 300-3 | Repair kit for THHP 300 pump |
