Bơm thủy lực 300 Bar SKF THAP 030E

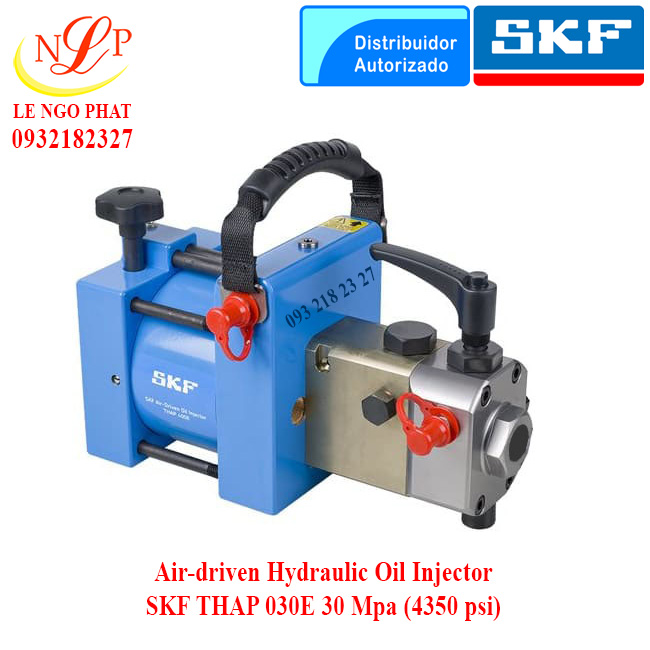

SKF THAP 030E Air-driven Hydraulic Pump and Oil Injector

Designation: THAP 030E
Nominal hydraulic pressure: 30 MPa ( 4 350 psi)
Operating air pressure: 7 bar* (102 psi)
Air consumption: 200 litre per minute / 7.1 cubic feet per minute
Operating temperature range: 0 °C - 45 °C (32 °F - 113 °F) with fluid maximum viscosity of 1500 mm2/s
Volume/stroke: 10 cm3 (0.61 in.3)
Oil outlet: G3/4
Length: 350 mm (13.9 in.)
Height: 202 mm (8 in.)
Width: 171mm (6.7 in.)
Weight: 11,5 kg (25.3 lb)
* Air pressures above 7 bar are automatically limited to 7 bar by an internal air limiter.

Giá: 0932182327

Mã sản phẩm: THAP 030E

Model: THAP 030E

**TECHNICAL DATA THAP 030E:**
Designation	THAP 030E
Nominal hydraulic pressure	30 MPa ( 4 350 psi)
Operating air pressure	7 bar* (102 psi)
Air consumption	200 litre per minute / 7.1 cubic feet per minute
Operating temperature range	0 °C - 45 °C (32 °F - 113 °F) with fluid maximum viscosity of 1500 mm2/s
Volume/stroke	10 cm3 (0.61 in.3)
Oil outlet	G3/4
Length	350 mm (13.9 in.)
Height	202 mm (8 in.)
Width	171mm (6.7 in.)
Weight	11,5 kg (25.3 lb)
* Air pressures above 7 bar are automatically limited to 7 bar by an internal air limiter.

**TECHNICAL DATA THAP 030E:**
Designation	THAP 030E
Nominal hydraulic pressure	30 MPa ( 4 350 psi)
Operating air pressure	7 bar* (102 psi)
Air consumption	200 litre per minute / 7.1 cubic feet per minute
Operating temperature range	0 °C - 45 °C (32 °F - 113 °F) with fluid maximum viscosity of 1500 mm2/s
Volume/stroke	10 cm3 (0.61 in.3)
Oil outlet	G3/4
Length	350 mm (13.9 in.)
Height	202 mm (8 in.)
Width	171mm (6.7 in.)
Weight	11,5 kg (25.3 lb)
* Air pressures above 7 bar are automatically limited to 7 bar by an internal air limiter.

**SET CONTENTS THAP 030E/SK1:**
Nr.	Designation	Description
1	THAP 030E	Air driven pump 30 MPa (4 350 psi)
2	228027 E	Nipple G 3/4 (m) - G 1/4 (f)
3	729834	Pressure hose (3 m /9.8 ft)
4	729831 A	Quick connection coupling
5	729832 A	Quick connection nipple
		Set delivered in a wooden carrying case (size 690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in)

**ACCESSORIES THAP 030E:**
Designation	Description
LHMF 300/5	Mounting fluid (5 litre)
LHDF 900/5	Dismounting fluid (5 litre)

**SPARE PARTS THAP 030E:**
Designation	Description
728245/3A	Carrying case
THAP E-2	Set of hoses
THAP E-3	Air valve assembly
THAP E-4	Air inlet block
THAP E-5	Air motor assembly
THAP E-6	Oil inlet block
THAP 030 E-7	Oil injector assembly
THAP E-8	Release valve assembly
THAP E-9	Connection nipple assembly
THAP 030 E-10	Repair kit
THAP E-11	Gauge plug assembly
THAP E-12	Carrying handle
