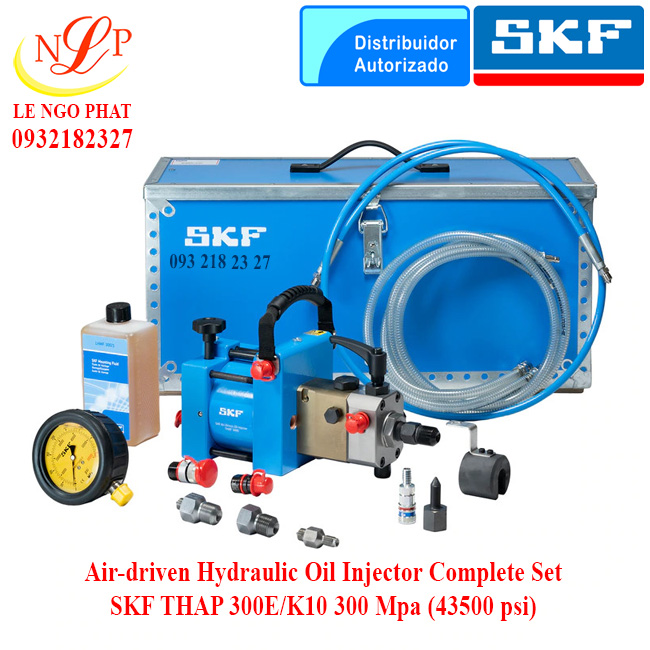

Bộ bơm thủy lực 3000 Bar SKF THAP 300E/K10
SKF THAP 300E/K10 Air-driven Hydraulic Oil Injector, 300 Mpa (43500 psi) Complete Set
THAP 300E: Air driven pump 300 MPa (43 500 psi)
1077589/3: Pressure gauge 0-400 MPa (58 000 psi)
TMJG S100: Pressure gauge protection sleeve 100 mm
THAP E-PC2: Protection device
THPN FM16G3/4: Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi)
THAP 300-H/2: High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.)
THPC 300-1: Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi)
THPN 300-1: Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi)
THPN M16G1/4: Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi)
THPN M16G3/4: Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi)
Carrying case (690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in).
| Nr. | Designation | Description |
| 1 | THAP 300E | Air driven pump 300 MPa (43 500 psi) |
| 2 | 1077589/3 | Pressure gauge 0-400 MPa (58 000 psi) |
| 2 | TMJG S100 | Pressure gauge protection sleeve 100 mm |
| 3 | THAP E-PC2 | Protection device |
| 4 | THPN FM16G3/4 | Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi) |
| 5 | THAP 300-H/2 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.) |
| 6 | THPC 300-1 | Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi) |
| 7 | THPN 300-1 | Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi) |
| 8 | THPN M16G1/4 | Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi) |
| 9 | THPN M16G3/4 | Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi) |
| Carrying case (690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in). |
| Designation | THAP 300E |
| Nominal hydraulic pressure | 300 MPa (43 500 psi) |
| Operating air pressure | 7 bar* (102 psi) |
| Air consumption | 200 litre per minute / 7.1 cubic feet per minute |
| Operating temperature range | 0 °C - 45 °C (32 °F - 113 °F) with fluid maximum viscosity of 1500 mm2/s |
| Volume/stroke | 0,83 cm3 (0.05 in.3) |
| Oil outlet | G3/4 |
| Length | 405 mm (16 in.) |
| Height | 202 mm (8 in.) |
| Width | 171 mm (6.7 in.) |
| Weight | 13 kg (28.6 lb) |
| * Air pressures above 7 bar are automatically limited to 7 bar by an internal air limiter. | |
| Nr. | Designation | Description |
| 1 | THAP 300E | Air driven pump 300 MPa (43 500 psi) |
| 2 | 1077589/3 | Pressure gauge 0-400 MPa (58 000 psi) |
| 2 | TMJG S100 | Pressure gauge protection sleeve 100 mm |
| 3 | THAP E-PC2 | Protection device |
| 4 | THPN FM16G3/4 | Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi) |
| 5 | THAP 300-H/2 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.) |
| 6 | THPC 300-1 | Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi) |
| 7 | THPN 300-1 | Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi) |
| 8 | THPN M16G1/4 | Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi) |
| 9 | THPN M16G3/4 | Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi) |
| Carrying case (690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in). |
| Designation | Description |
| LHMF 300/5 | Mounting fluid (5 litre) |
| LHDF 900/5 | Dismounting fluid (5 litre) |
| THPN M16G1/8 | Nipple M16x1.5 cone male, G1/8 male, 300 MPa (43 500 psi) (for /K10) |
| THPN M16G3/8 | Nipple M16x1.5 cone male, G3/8 male, 400 MPa (58 000 psi) (for /K10) |
| THPN M16G1/2 | Nipple M16x1.5 cone male, G1/2 male, 400 MPa (58 000 psi) (for /K10) |
| THAP 300-H/3 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 3 m (9.8 ft.) (for /K10) |
| THAP 300-H/4 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 4 m (13.1 ft.) (for /K10) |
| Designation | Description |
| THAP E-2 | Set of hoses |
| THAP E-3 | Air valve assembly |
| THAP E-4 | Air inlet block |
| THAP E-5 | Air motor assembly |
| THAP E-6 | Oil inlet block |
| THAP 300E-7 | Oil injector assembly |
| THAP E-8 | Release valve assembly |
| THAP E-9 | Connection nipple assembly |
| THAP 300E-10 | Repair kit |
| THAP E-11 | Gauge plug assembly |
| THAP E-12 | Carrying handle |
| THAP E-PC2 | Protection device |
| 1077589/3 | Pressure gauge 0 - 400 MPa (58 000 psi) (for /K10) |
| TMJG S100 | Pressure gauge protection sleeve (for /K10) |
| LHMF 300/1 | Mounting fluid (1 litre) |
| THPN FM16G3/4 | Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi) (for /K10) |
| THAP 300-H/2 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.) (for /K10) |
| THPC 300-1 | Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi) (for /K10) |
| THPN 300-1 | Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi) (for /K10) |
| THPN M16G1/4 | Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi) (for /K10) |
| THPN M16G3/4 | Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi) (for /K10) |
| Designation | THAP 300E |
| Nominal hydraulic pressure | 300 MPa (43 500 psi) |
| Operating air pressure | 7 bar* (102 psi) |
| Air consumption | 200 litre per minute / 7.1 cubic feet per minute |
| Operating temperature range | 0 °C - 45 °C (32 °F - 113 °F) with fluid maximum viscosity of 1500 mm2/s |
| Volume/stroke | 0,83 cm3 (0.05 in.3) |
| Oil outlet | G3/4 |
| Length | 405 mm (16 in.) |
| Height | 202 mm (8 in.) |
| Width | 171 mm (6.7 in.) |
| Weight | 13 kg (28.6 lb) |
| * Air pressures above 7 bar are automatically limited to 7 bar by an internal air limiter. | |
| Nr. | Designation | Description |
| 1 | THAP 300E | Air driven pump 300 MPa (43 500 psi) |
| 2 | 1077589/3 | Pressure gauge 0-400 MPa (58 000 psi) |
| 2 | TMJG S100 | Pressure gauge protection sleeve 100 mm |
| 3 | THAP E-PC2 | Protection device |
| 4 | THPN FM16G3/4 | Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi) |
| 5 | THAP 300-H/2 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.) |
| 6 | THPC 300-1 | Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi) |
| 7 | THPN 300-1 | Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi) |
| 8 | THPN M16G1/4 | Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi) |
| 9 | THPN M16G3/4 | Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi) |
| Carrying case (690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in). |
| Designation | Description |
| LHMF 300/5 | Mounting fluid (5 litre) |
| LHDF 900/5 | Dismounting fluid (5 litre) |
| THPN M16G1/8 | Nipple M16x1.5 cone male, G1/8 male, 300 MPa (43 500 psi) (for /K10) |
| THPN M16G3/8 | Nipple M16x1.5 cone male, G3/8 male, 400 MPa (58 000 psi) (for /K10) |
| THPN M16G1/2 | Nipple M16x1.5 cone male, G1/2 male, 400 MPa (58 000 psi) (for /K10) |
| THAP 300-H/3 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 3 m (9.8 ft.) (for /K10) |
| THAP 300-H/4 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 4 m (13.1 ft.) (for /K10) |
| Designation | Description |
| THAP E-2 | Set of hoses |
| THAP E-3 | Air valve assembly |
| THAP E-4 | Air inlet block |
| THAP E-5 | Air motor assembly |
| THAP E-6 | Oil inlet block |
| THAP 300E-7 | Oil injector assembly |
| THAP E-8 | Release valve assembly |
| THAP E-9 | Connection nipple assembly |
| THAP 300E-10 | Repair kit |
| THAP E-11 | Gauge plug assembly |
| THAP E-12 | Carrying handle |
| THAP E-PC2 | Protection device |
| 1077589/3 | Pressure gauge 0 - 400 MPa (58 000 psi) (for /K10) |
| TMJG S100 | Pressure gauge protection sleeve (for /K10) |
| LHMF 300/1 | Mounting fluid (1 litre) |
| THPN FM16G3/4 | Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi) (for /K10) |
| THAP 300-H/2 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.) (for /K10) |
| THPC 300-1 | Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi) (for /K10) |
| THPN 300-1 | Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi) (for /K10) |
| THPN M16G1/4 | Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi) (for /K10) |
| THPN M16G3/4 | Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi) (for /K10) |
